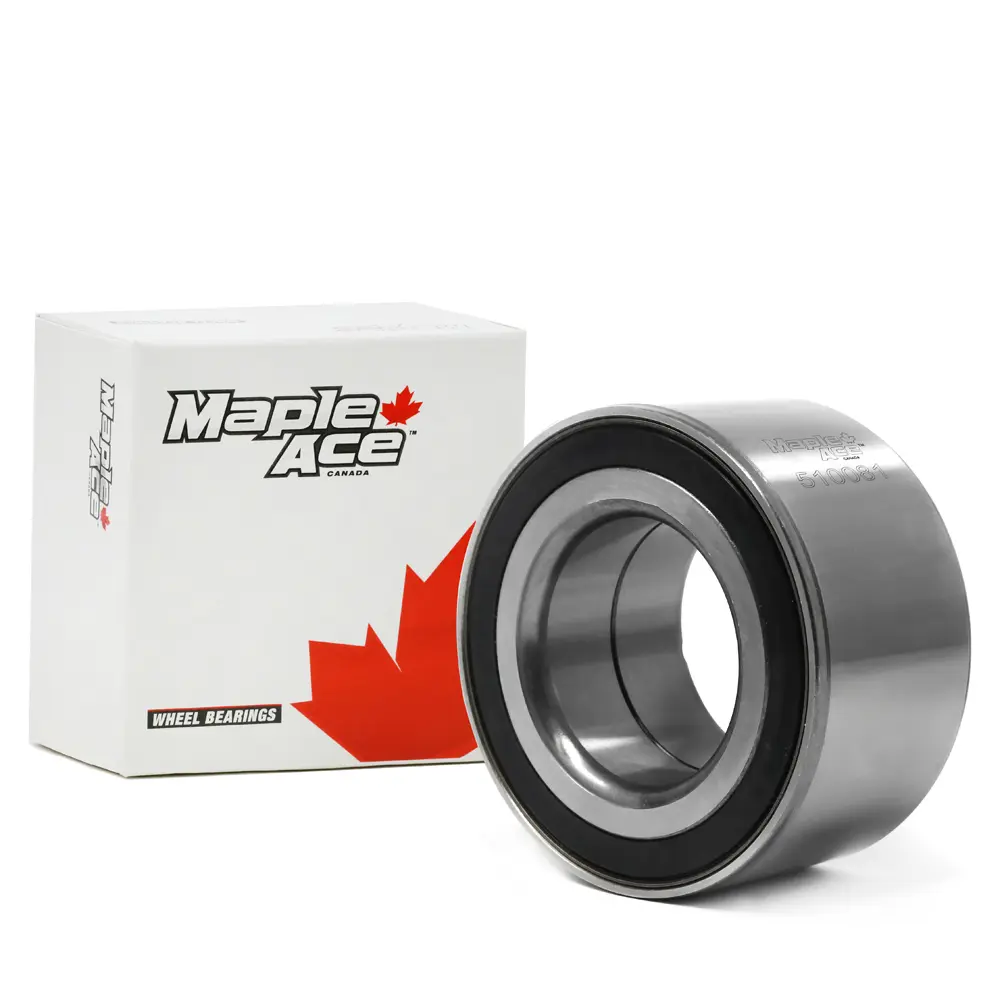

WB-510081 Front Wheel Bearing BMW X3 04-12 X5 01-06 328xi 07-08 335xi 07-08

*Image may differ from product. See technical specification for details.

WB-510081 Front Wheel Bearing BMW X3 04-12 X5 01-06 328xi 07-08 335xi 07-08

  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing

$41.95 CAD

Quantity:
Need Technical Help?
  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

Specifications

ItemWB-510081
Inner Diameter Metric49.00 mm
Inner Diameter Inch1.9291 in
Outside Diameter Matric90.00 mm
Outside Diameter Inch3.5433 in
Width Inner Ring Matric45.00 mm
Width Inner Ring Inch1.7716 in
Width Outer Ring Matric45.00 mm
Width Outer Ring Inch1.7716 in
ClosuresTwo Metal Shields (ZZ)
Includes ABSSensor Ring Worked ABS impulse ring integrated into the seals
Lubrication TypeGrease Shell Gadus S2
MaterialGcr15
Rolling Element IndicatorBall
SeriesWheel Bearing
DesignDouble Row Angular Contact
GenerationG1
Product Weight1.080 KG
