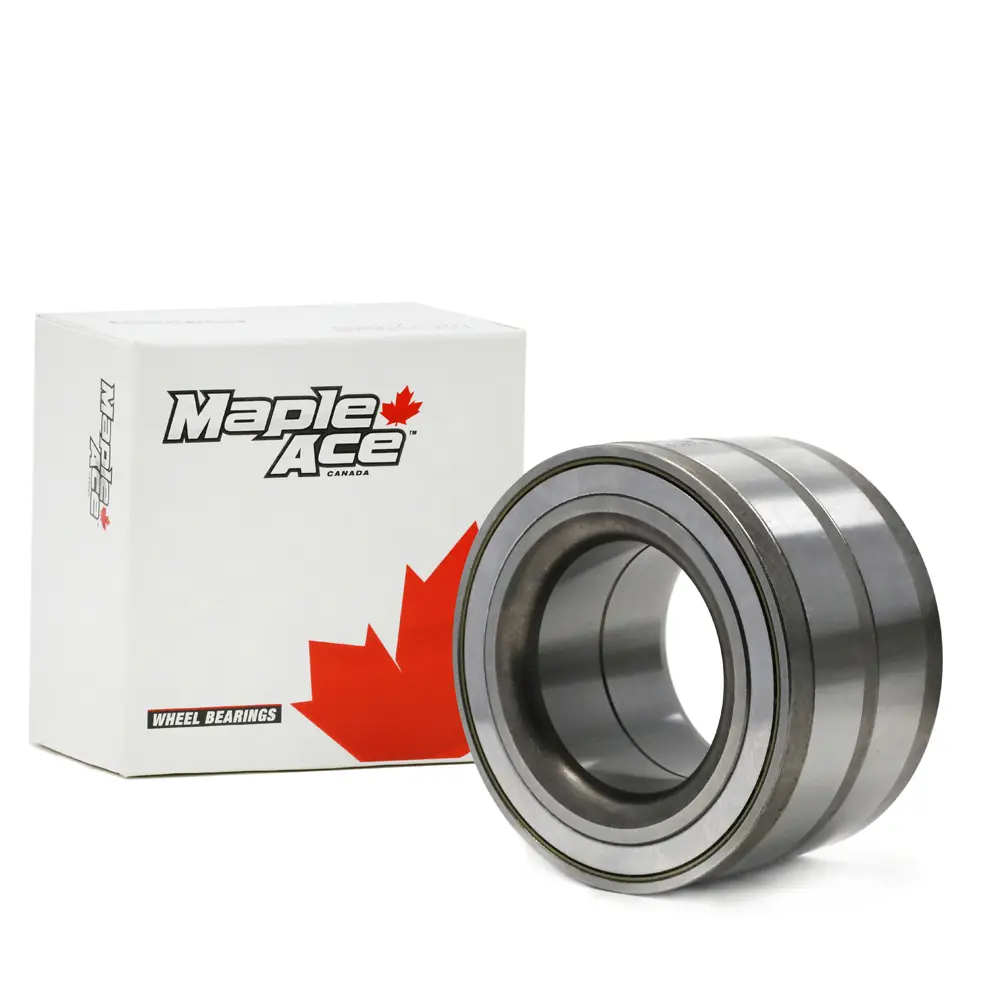

WB-516013 Rear Wheel Brg Land Rover LR3 05-09 LR4 10-16 Range Rover Sport 06-13

*Image may differ from product. See technical specification for details.

WB-516013 Rear Wheel Brg Land Rover LR3 05-09 LR4 10-16 Range Rover Sport 06-13

  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing

$49.95 CAD

Quantity:
Need Technical Help?
  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

Specifications

ItemWB-516013
Inner Diameter Metric50.00 mm
Inner Diameter Inch1.9685 in
Outside Diameter Matric89.00 mm
Outside Diameter Inch3.5039 in
Width Inner Ring Matric51.00 mm
Width Inner Ring Inch2.0078 in
Width Outer Ring Matric51.00 mm
Width Outer Ring Inch2.0078 in
ClosuresTwo Metal Shields (ZZ)
Includes ABSSensor Ring Worked ABS impulse ring integrated into the seals
Lubrication TypeGrease Shell Gadus S2
MaterialGcr15
Rolling Element IndicatorBall
SeriesWheel Bearing
DesignDouble Row Angular Contact
GenerationG1
Product Weight1.250 KG
