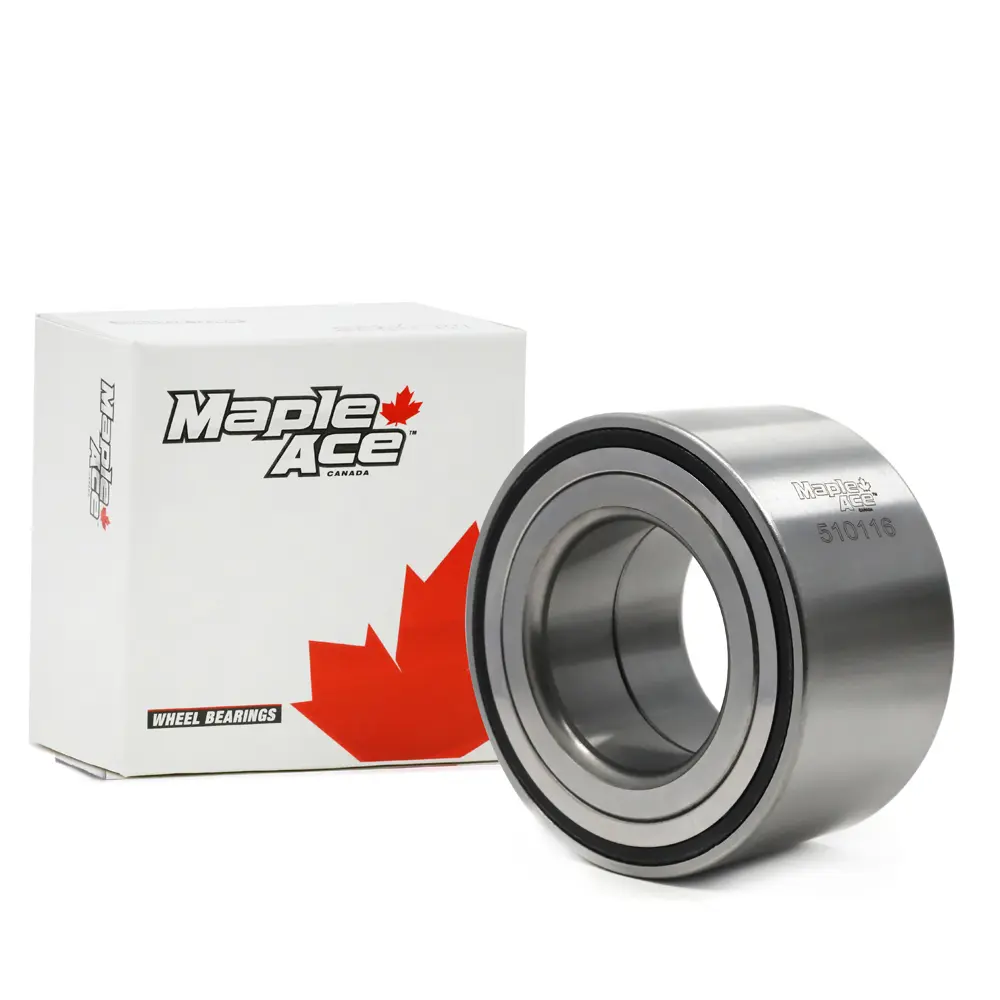

WB-510116 Rear Wheel Bearing Grand Cherokee 11-21 Durango 11-19 ML/GL/GLE 12-18

*Image may differ from product. See technical specification for details.

WB-510116 Rear Wheel Bearing Grand Cherokee 11-21 Durango 11-19 ML/GL/GLE 12-18

  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing

$45.95 CAD

Quantity:
Need Technical Help?
  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

Specifications

ItemWB-510116
Inner Diameter Metric52.00 mm
Inner Diameter Inch2.0472 in
Outside Diameter Matric96.00 mm
Outside Diameter Inch3.7795 in
Width Inner Ring Matric50.00 mm
Width Inner Ring Inch1.9685 in
Width Outer Ring Matric50.00 mm
Width Outer Ring Inch1.9685 in
ClosuresTwo Rubber Seals (2RS)
Includes ABSMagnetic encoder
Lubrication TypeGrease Shell Gadus S2
MaterialGcr15
Rolling Element IndicatorBall
SeriesWheel Bearing
DesignDouble Row Angular Contact
GenerationG1
Product Weight1.350 KG
