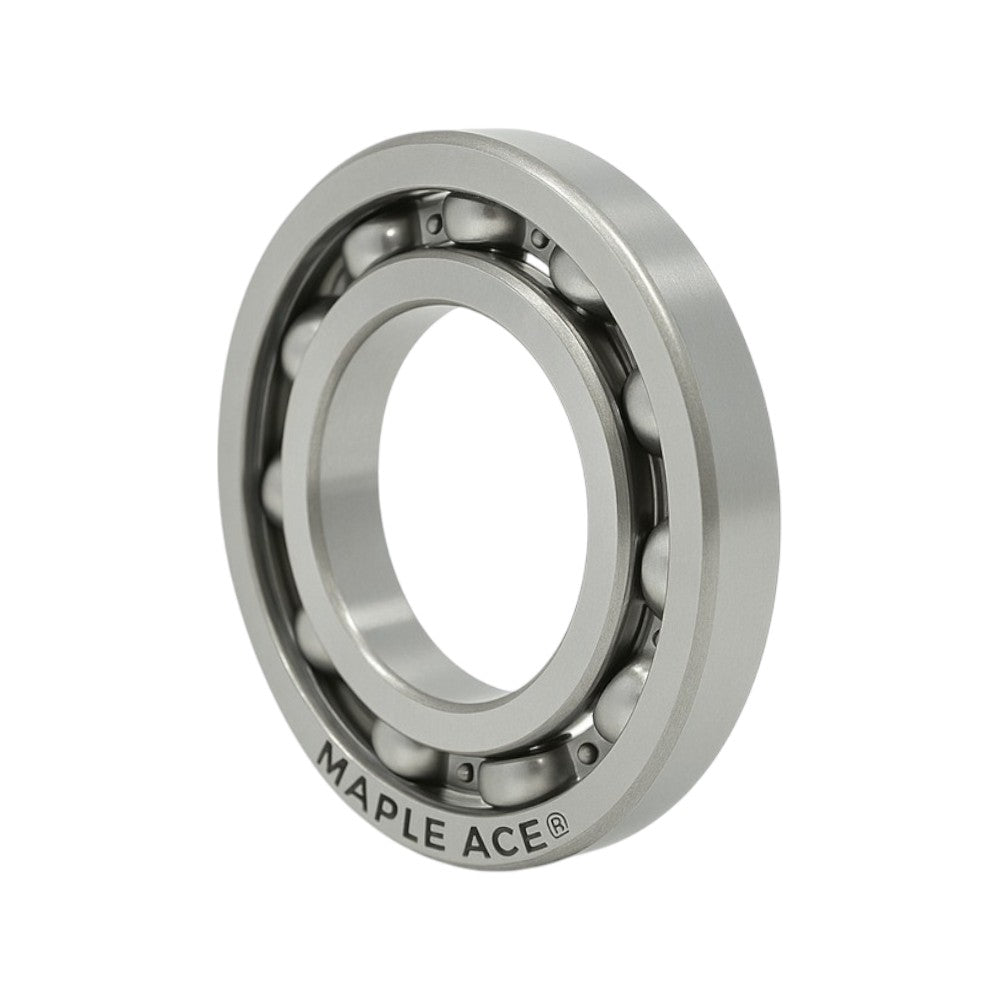

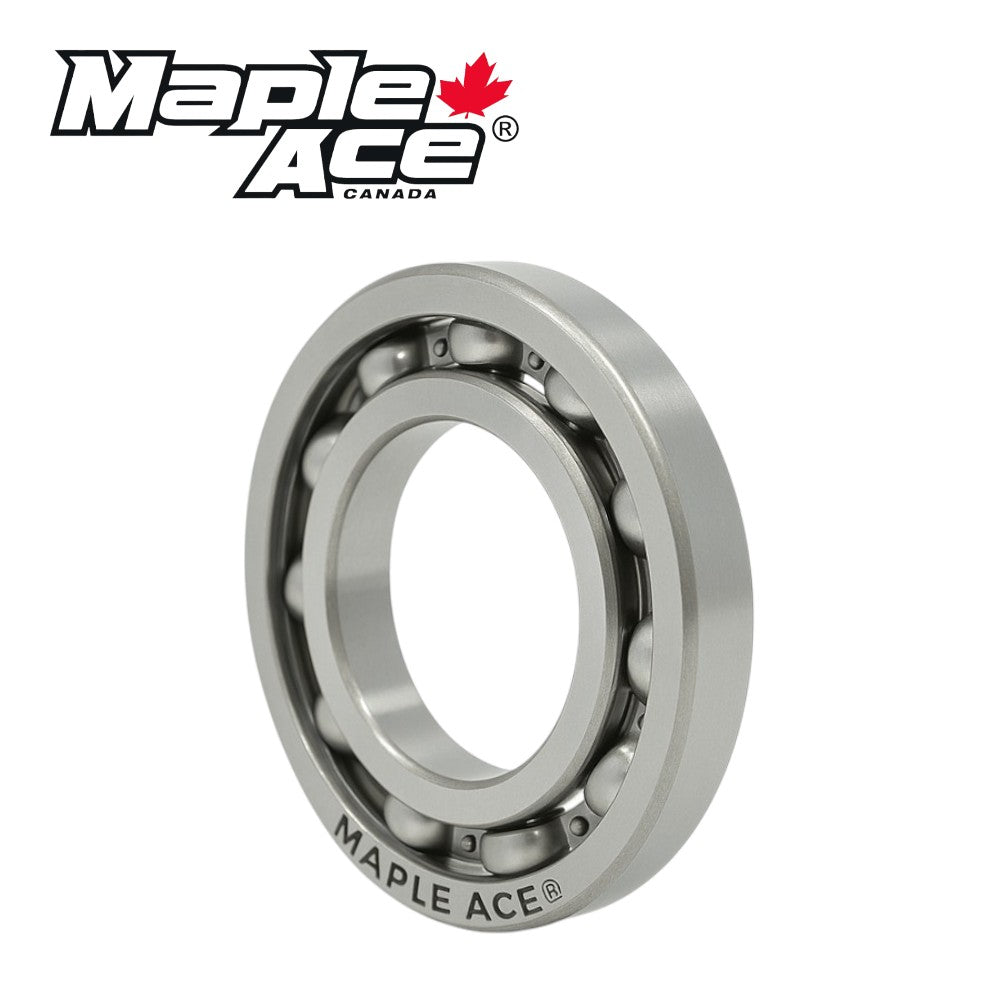

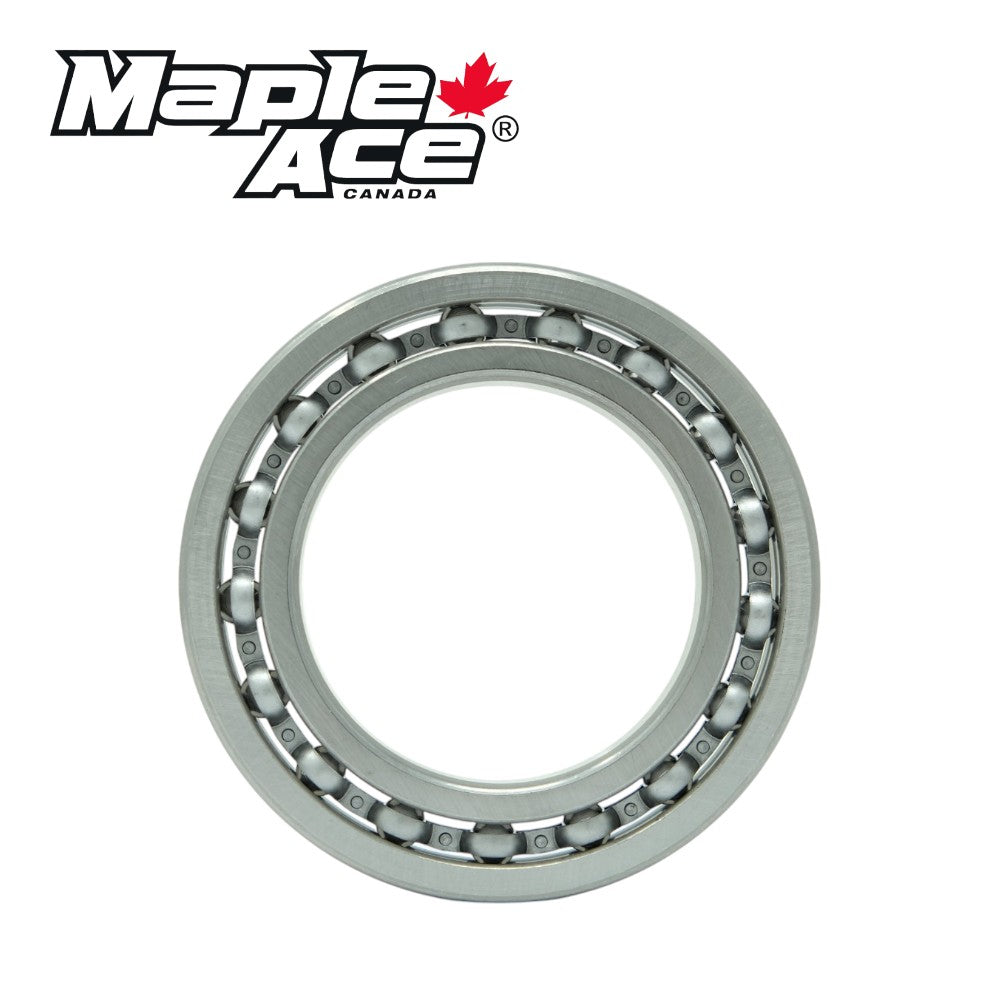

16005 Ball Bearing 25x47x8mm 16005

Name: 16005 Ball Bearing 25x47x8mm 16005
Brand: MAPLE ACE
Price: 4.49 CAD
Availability: InStock

Availability: In stock

Product type: Ball Bearings

Vendor: MAPLE ACE

Regular price $4.49 CAD

Single-row deep groove ball bearings offer high versatility across various applications. Designed with low friction, optimized for: Low noise Low vibration High...

16005 Deep Groove Ball Bearing dimensions: Bore Diameter 25mm, Outside Diameter 47mm, Width 8mm. 100% Chrome Steel.
Interchange to 16005 CM, 16005 CN
This deep groove ball bearing is Open and has no shield or seal on both sides.
Application: ATVs, Motorcycles, Bicycle, Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

Single-row deep groove ball bearings offer high versatility across various applications.
Designed with low friction, optimized for:
- Low noise
- Low vibration
- High rotational speeds
Able to support both radial and axial loads in both directions.
Easy to mount and require less maintenance compared to many other bearing types.

Specifications
Interchange

Item	16005
Bearing Type	Deep groove ball bearing
Bore Diameter	25.00mm
Outside Diameter	47.00mm
Width	8.00mm
Width Inner Ring	8.00mm
Width Outer Ring	8.00mm
Dynamic Load Rating Cr	8060 N
Static Load Rating Cor	4750 N
Limiting Speed	20000 r/min
Clearance	CN
Tolerance Classes	P5
Cage	Metal
Closures	Without
Lubrication Type	Without
Lubrication Temperature	Without
Rolling Element Indicator	Ball
Material	Gcr15
Product Weight	0.055 KG
