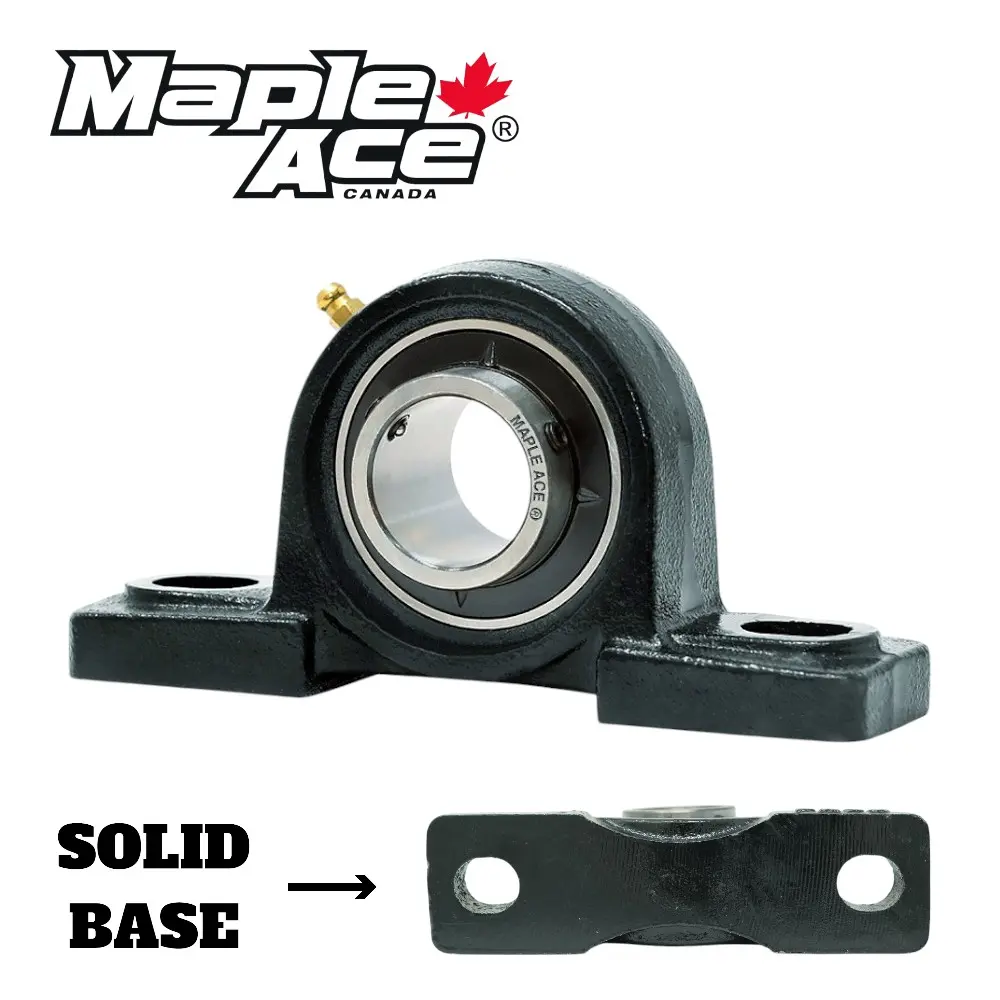

UCP201-8 Pillow Block Bearing 1/2" Bore, 2-Bolt, Self-Aligning, Solid Base

*Image may differ from product. See technical specification for details.

UCP201-8 Pillow Block Bearing 1/2" Bore, 2-Bolt, Self-Aligning, Solid Base

  • This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes
  • Grease Fitting Offset on top, to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings
  • Has a Set Screw Lock on its surface, for securing the shaft

$17.49 CAD

Quantity:
Need Technical Help?
  • This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes
  • Grease Fitting Offset on top, to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings
  • Has a Set Screw Lock on its surface, for securing the shaft
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

Specifications

ItemUCP201-8
SeriesUCP200
Bearing NumberUC201-8
Housing NumberP203
Bearing Inner Diameter Metric12.7 mm
Bearing Inner Diameter Inch1/2 in
Bearing Width Inner Ring Matric31.00 mm
Bearing Width Inner Ring Inch1.220 in
Bolt Size3/8 in
Number of Bolts2
Bolt Hole Center to Center (e) Matric95 mm
Bolt Hole Center to Center (e) Inch3.74 in
Overall Length (a) Matric127 mm
Overall Length (a) Inch5.00 in
Overall Height (w) Matric60 mm
Overall Height (w) Inch2.362 in
Overall Width (b) Matric38 mm
Overall Width (b) Inch1.496 in
Mounting Surface to Shaft Center (h) Matric30.2 mm
Mounting Surface to Shaft Center (h) Inch1.189 in
Dynamic Load Rating Cr9560 N
Static Load Rating Cor4750 N
Limiting Speed9500 r/min
ClearanceNormal
Bearing Sealing typeContact, standard
Lubrication TypeGrease Shell RL2
Lubrication Temperature-20°C to +160°C
Rolling Element IndicatorBall
Bearing MaterialGcr15
Housing MaterialH200 Cast Iron
Locking TypeSet Screws
Weight0.600 KG
