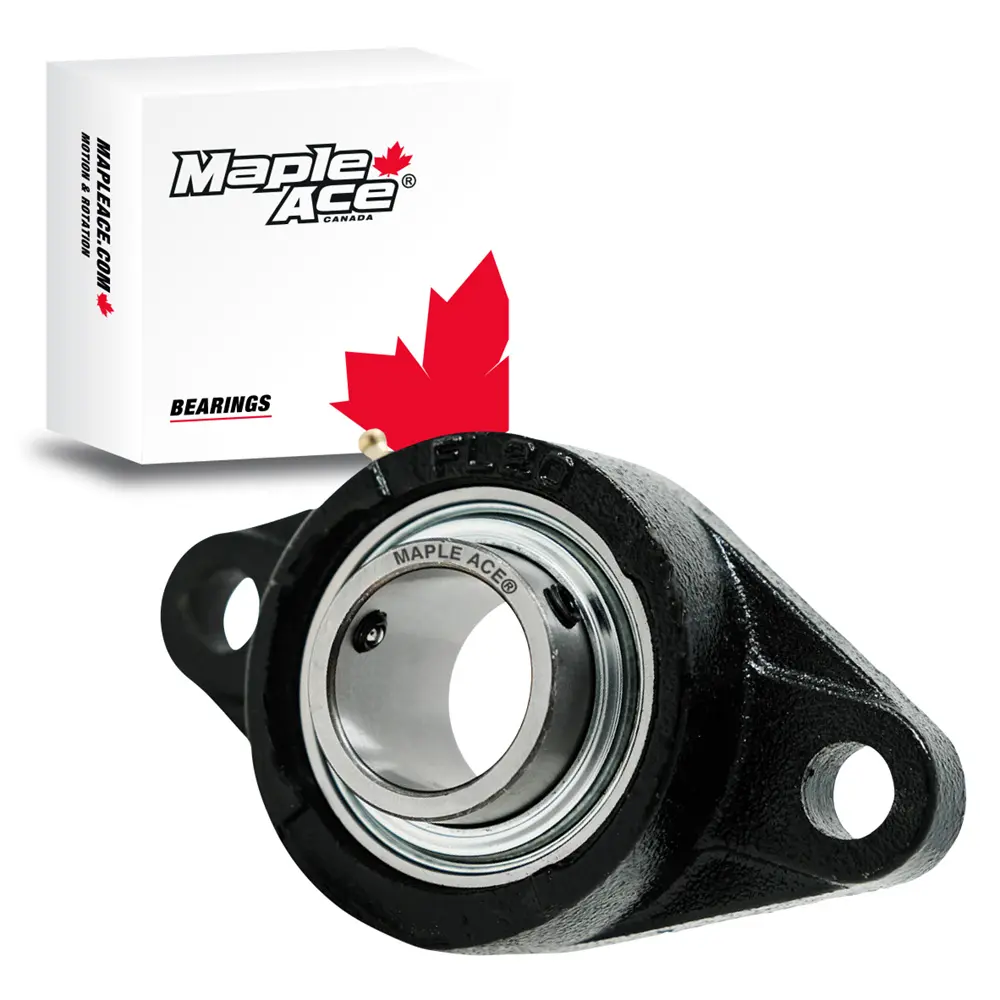

UCFL202-10 Flange Bearing 5/8" Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal

*Image may differ from product. See technical specification for details.

UCFL202-10 Flange Bearing 5/8" Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal

  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
  • Has a Set Screw Lock on its surface for securing the shaft
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing

$17.95 CAD

Quantity:
Need Technical Help?
  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
  • Has a Set Screw Lock on its surface for securing the shaft
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

Specifications

ItemUCFL202-10 R3
SeriesUCFL200
Bearing NumberUC202-10 R3
Housing NumberFL203
Number of Bolts2
Bolt Size (S)3/8 in
Bearing Inner Diameter (d) Metric15.875 mm
Bearing Inner Diameter (d) Inch5/8 in
Bearing Width Inner Ring (Bi) Matric31.00 mm
Bearing Width Inner Ring (Bi) Inch1.220 in
Bolt Hole Center to Center (e) Matric90 mm
Bolt Hole Center to Center (e) Inch3.543 in
Flange width (a) Matric113 mm
Flange width (a) Inch4.448 in
Overall Height (Z) Matric33.3 mm
Overall Height (Z) Inch1.311 in
Dynamic Load Rating Cr9560 N
Static Load Rating Cor4750 N
Limiting Speed9500 r/min
ClearanceNormal
Bearing Sealing typeR3 Triple-Lip Seal
Lubrication TypeGrease Shell RL2
Lubrication Temperature-20°C to +160°C
Rolling Element IndicatorBall
Bearing MaterialGcr15
Housing MaterialH200 Cast Iron
Locking TypeSet Screws
Weight0.410 KG
