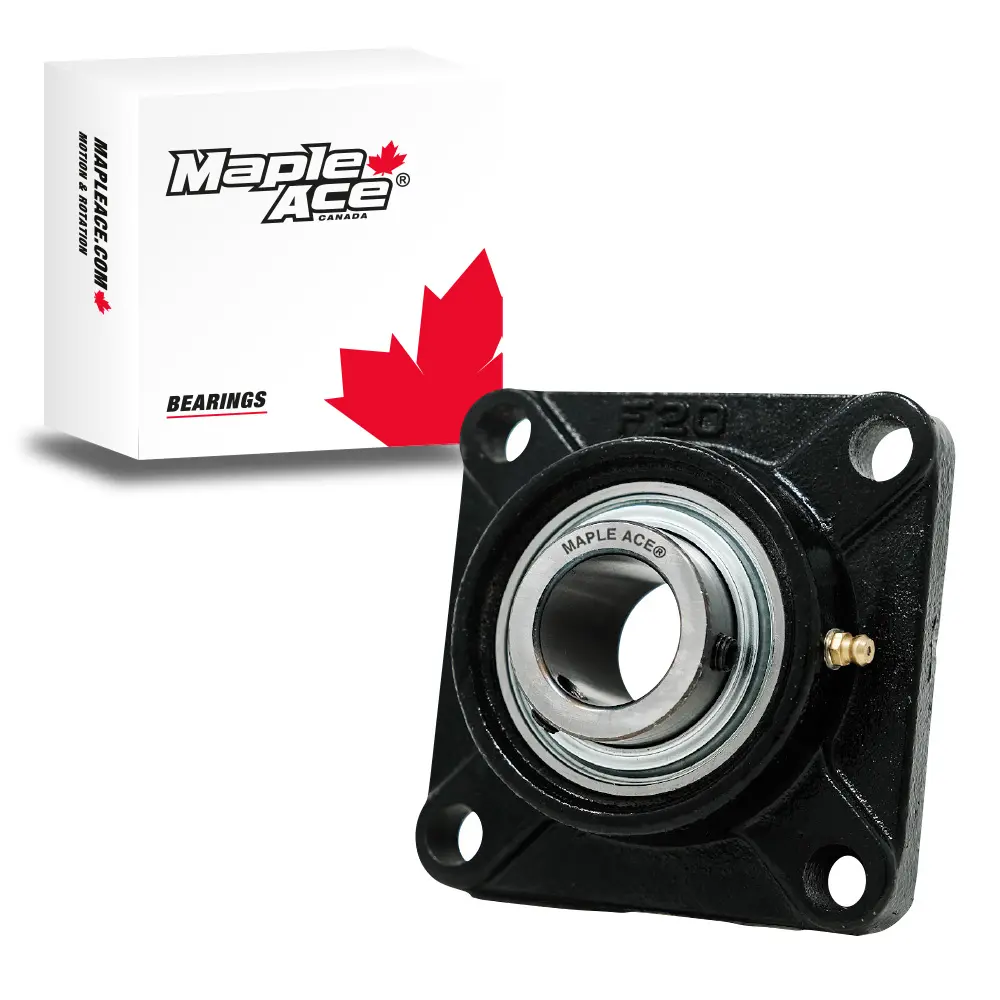

UCF209 Flange Bearing 45mm Bore, 4-Bolt Self-Aligning, Solid Base, 3 Lips Seal

*Image may differ from product. See technical specification for details.

UCF209 Flange Bearing 45mm Bore, 4-Bolt Self-Aligning, Solid Base, 3 Lips Seal

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes
Grease Fitting Offset on top, to Relubricate the bearing
Has a Set Screw Lock on its surface, for securing the shaft

$59.95 CAD

Quantity:

Need Technical Help?

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes
Grease Fitting Offset on top, to Relubricate the bearing
Has a Set Screw Lock on its surface, for securing the shaft

Fast Shipping
Secure Payments
30 days Guarantee

Specifications

ItemUCF209 R3

SeriesUCF200

Bearing NumberUC209 R3

Housing NumberF209

Number of Bolts4

Bolt Size (S)1/2 in

Bearing Inner Diameter (d) Metric45.00 mm

Bearing Inner Diameter (d) Inch1.7716 in

Bearing Width Inner Ring (Bi) Matric49.2 mm

Bearing Width Inner Ring (Bi) Inch1.937 in

Bolt Hole Center to Center (e) Matric105 mm

Bolt Hole Center to Center (e) Inch4.133 in

Flange width (a) Matric137 mm

Flange width (a) Inch5.393 in

Overall Height (Z) Matric52.2 mm

Overall Height (Z) Inch2.055 in

Dynamic Load Rating Cr32500 N

Static Load Rating Cor20400 N

Limiting Speed3400 r/min

ClearanceNormal

Bearing Sealing typeR3 Triple-Lip Seal

Lubrication TypeGrease Shell RL2

Lubrication Temperature-20°C to +160°C

Rolling Element IndicatorBall

Bearing MaterialGcr15

Housing MaterialH200 Cast Iron

Locking TypeSet Screws

Weight1.940 KG
