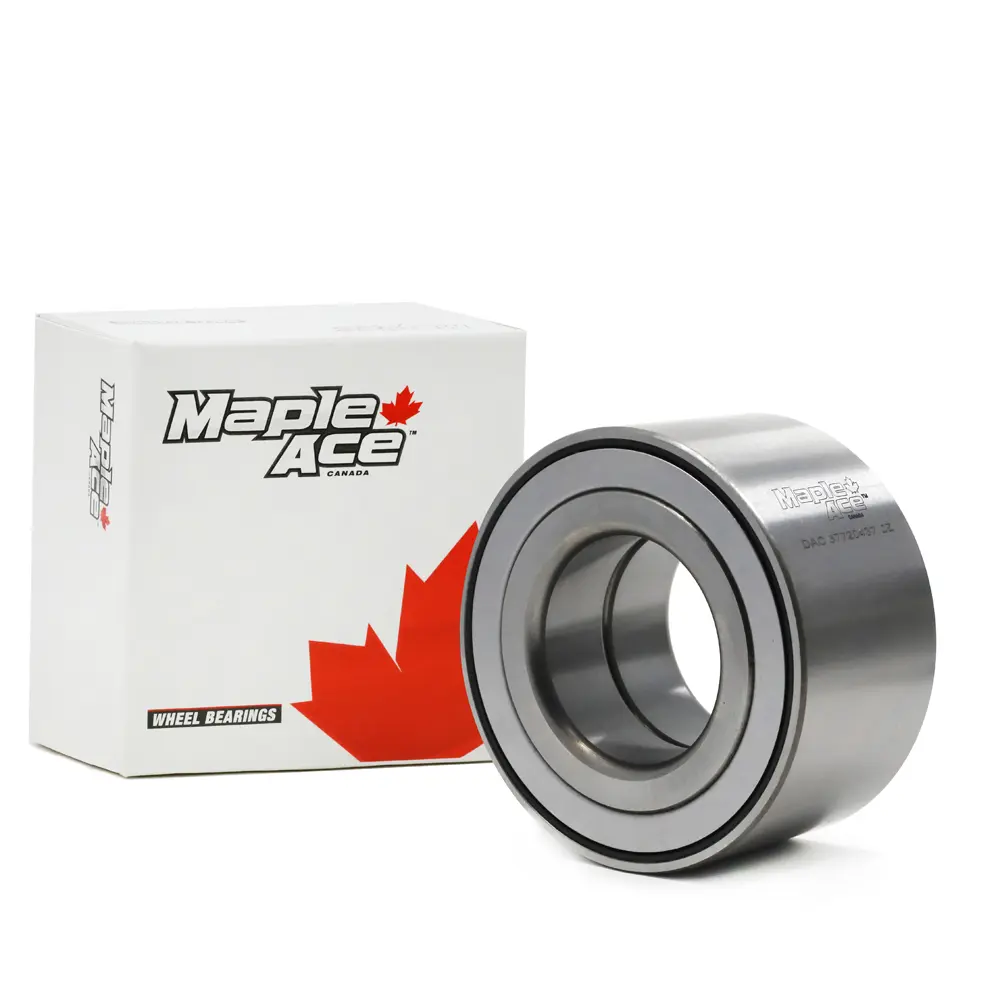

91056-HL3-A01 Rear Wheel Bearing Honda Pioneer 500 15-16 Pioneer 700/700-4 14

*Image may differ from product. See technical specification for details.

91056-HL3-A01 Rear Wheel Bearing Honda Pioneer 500 15-16 Pioneer 700/700-4 14

  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing

$25.95 CAD

Quantity:
Need Technical Help?
  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing
  • Fast Shipping
  • Secure Payments
  • 30 days Guarantee

Specifications

ItemDAC37720437-ZZ
Inner Diameter Metric37.00 mm
Inner Diameter Inch1.4566 in
Outside Diameter Matric72.04 mm
Outside Diameter Inch2.8362 in
Width Inner Ring Matric37.00 mm
Width Inner Ring Inch1.4566 in
Width Outer Ring Matric37.00 mm
Width Outer Ring Inch1.4566 in
ClosuresTwo Metal Shields (ZZ)
Includes ABSNo
Lubrication TypeGrease Shell Gadus S2
MaterialGcr15
Rolling Element IndicatorBall
SeriesWheel Bearing
DesignDouble Row Angular Contact
GenerationG1
Product Weight0.600 KG
