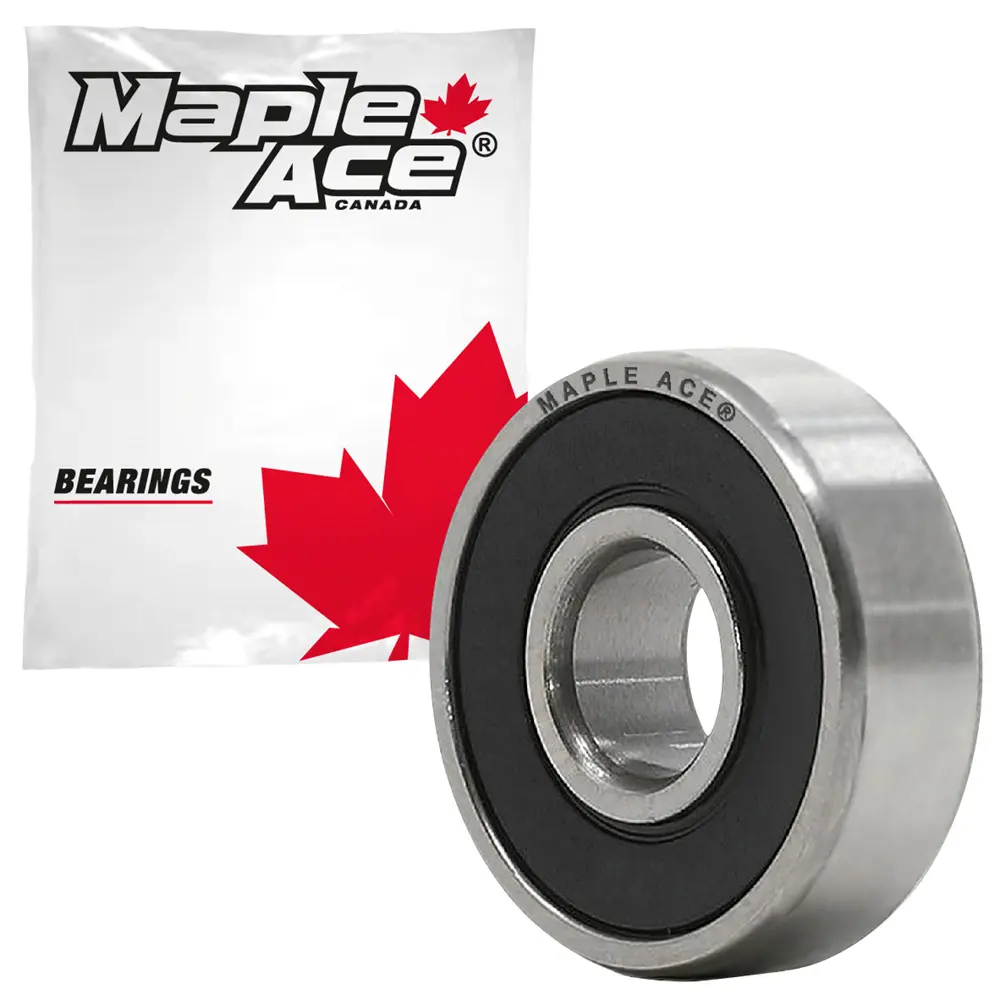

6900-2RS, 61900-2RS Ball Bearing 10x22x6mm 6900 2RS Rubber Sealed
*Image may differ from product. See technical specification for details.
6900-2RS, 61900-2RS Ball Bearing 10x22x6mm 6900 2RS Rubber Sealed
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
$2.60 CAD
Quantity:Need Technical Help?
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
- The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
- Fast Shipping
- Secure Payments
- 30 days Guarantee
Specifications
Item61900-2RS
Bearing Type6900
Bore Diameter10.00 mm
Outside Diameter22.00 mm
Width6.00 mm
Width Inner Ring6.00 mm
Width Outer Ring6.00 mm
Dynamic Load Rating Cr2700 N
Static Load Rating Cor1270 N
Limiting Speed20000 r/min
ClearanceNormal
Tolerance Inner Ring0 to -7 μm
Tolerance Outer Ring0 to -8 μm
Tolerance ClassesP5
Noise and VibrationZ3V3
ClosuresSeal on both sides
Lubrication TypeGrease Chevron
Lubrication Temperature-40°C to +150°C
Rolling Element IndicatorBall
MaterialGcr15
Product Weight0.010 KG
