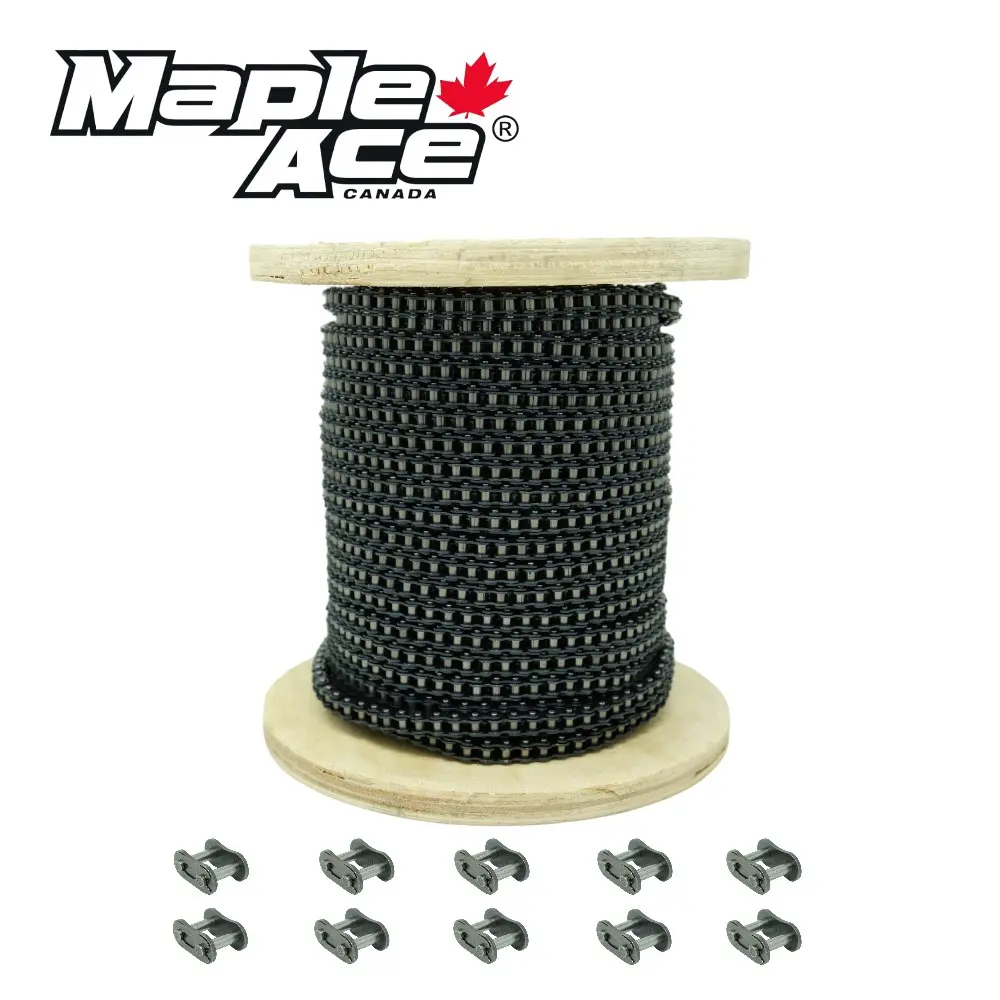

#25 Roller Chain 100 Feet plus 10 Connecting Master Links

*Image may differ from product. See technical specification for details.

#25 Roller Chain 100 Feet plus 10 Connecting Master Links

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness
Every package contains a 100-feet chain and 10 connecting links. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

$173.95 CAD

Quantity:

Need Technical Help?

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness
Every package contains a 100-feet chain and 10 connecting links. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

Fast Shipping
Secure Payments
30 days Guarantee

Specifications

Item25-1

ANSI Chain number25-1

BS/ISO Chain number04C-1

Number of Strands1

Chain Pitch Metric6.35 mm

Chain Pitch Inch0.25 in

Roller diameter d1 max Metric3.3 mm

Roller diameter d1 max Inch0.13 in

Width between inner plates b1 min Metric3.18 mm

Width between inner plates b1 min Inch0.13 in

Pin diameter d2 max Metric2.31 mm

Pin diameter d2 max Inch0.09 in

Pin length L max Metric7.90 mm

Pin length L max Inch0.31 in

Pin length Lc max Metric8.40 mm

Pin length Lc max Inch0.33 in

Plate height h2 max Metric6 mm

Plate height h2 max Inch0.24 in

Plate thickness T max Metric0.8 mm

Plate thickness T max Inch0.03 in

Ultimate Tensile Strength Q min3.5 kN

Average Tensile Strength Q04.6 kN

Weight (kg/m)0.15 kg

Weight (lbs/ft)0.1 lbs

MaterialCarbon/Alloy Steel
