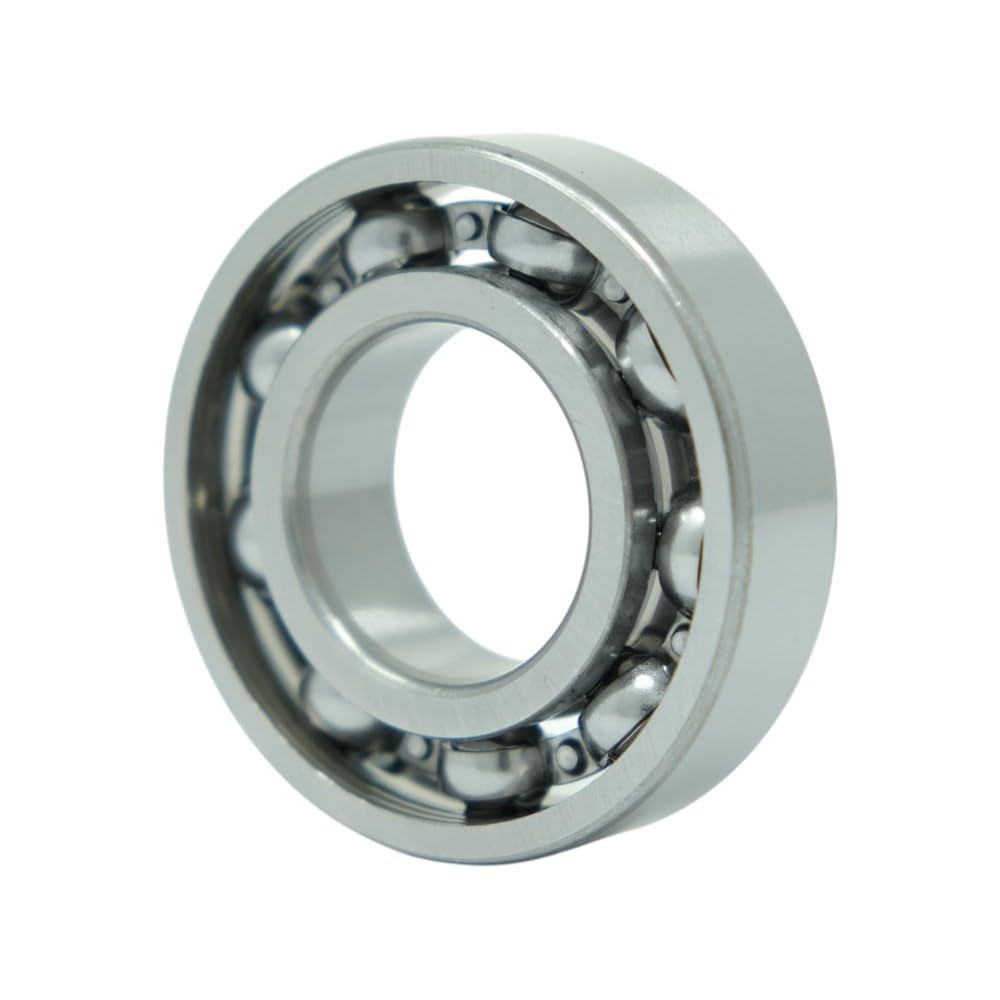

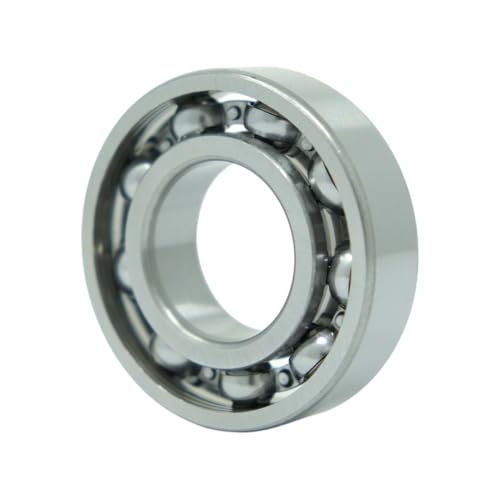

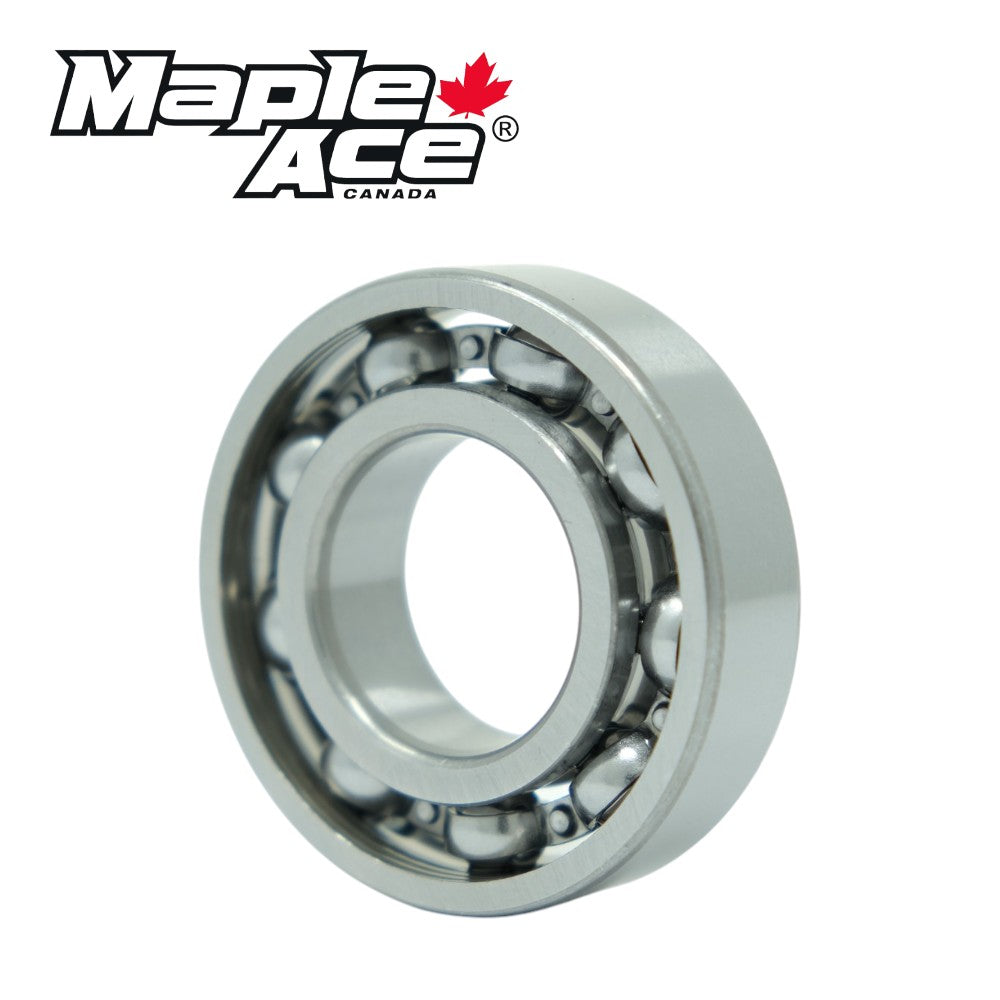

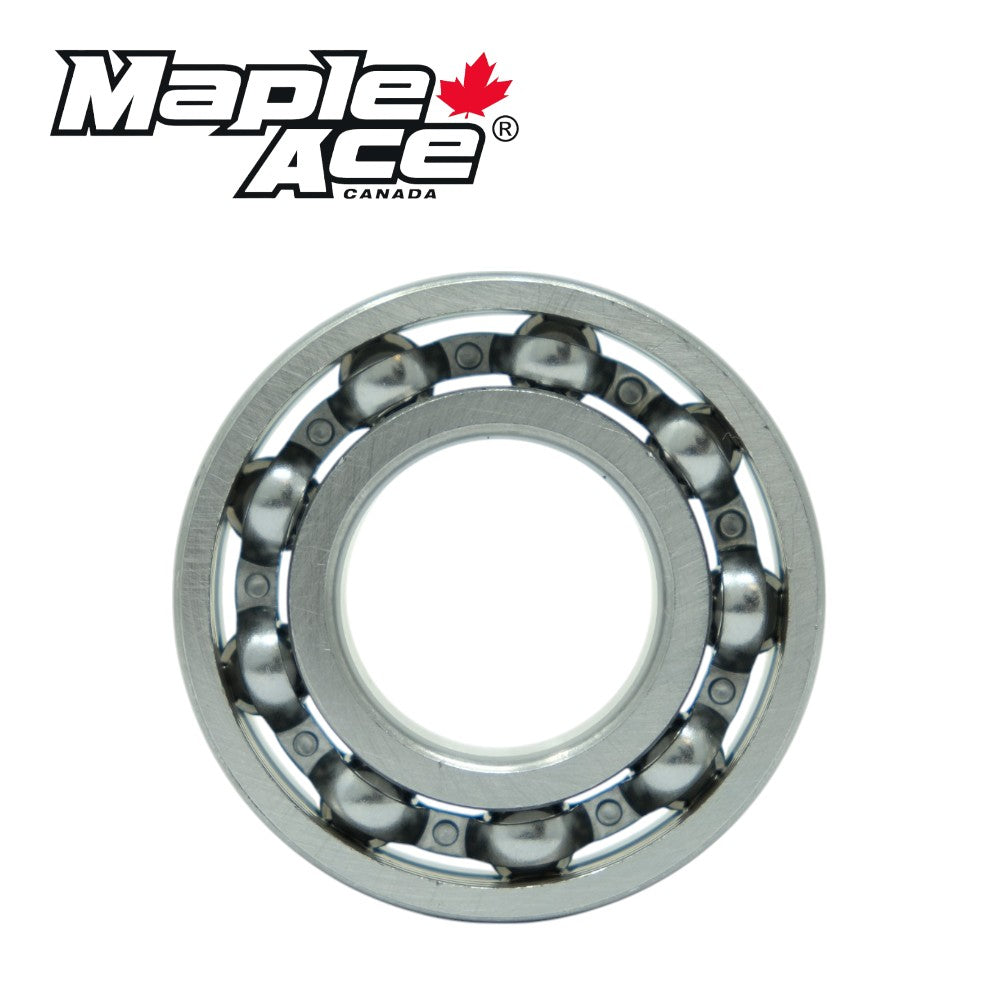

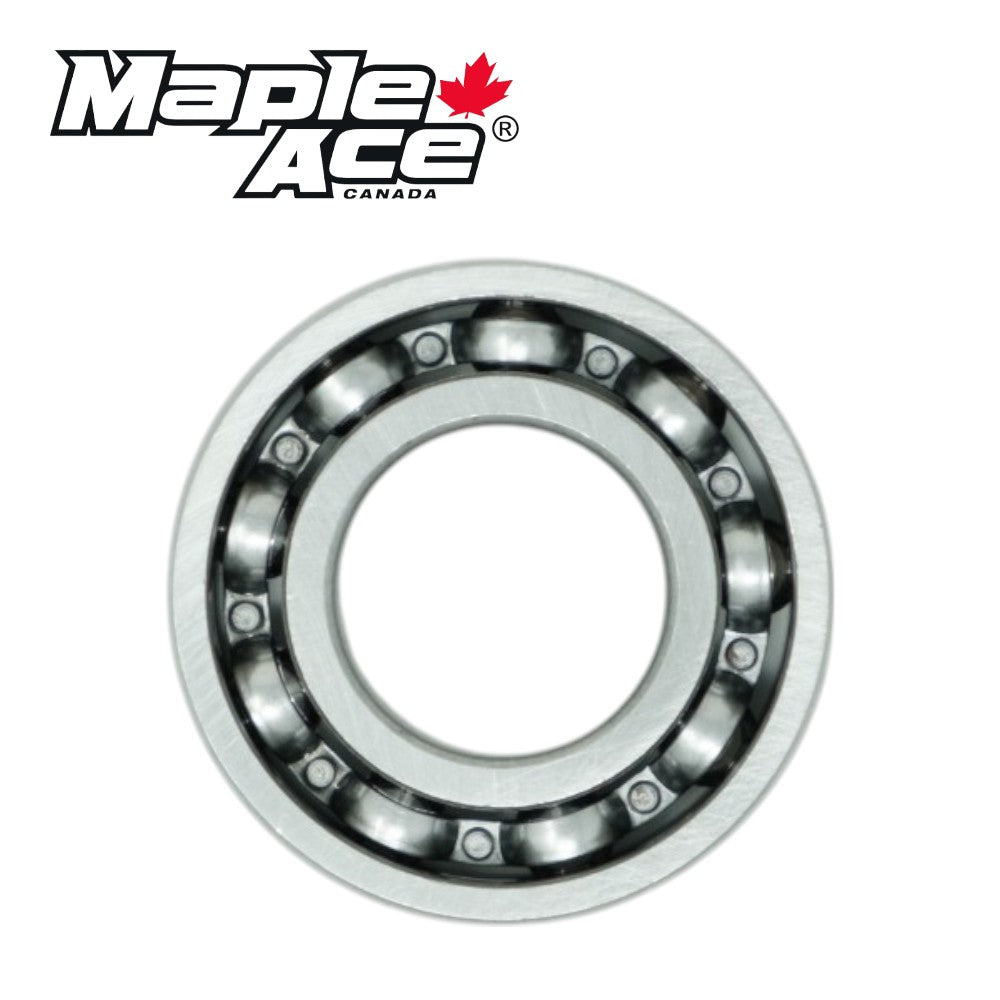

6204-C3 Ball Bearing 20x47x14mm 6204 C3 OPEN, NO SEALS

6204-C3 Ball Bearing 20x47x14mm 6204 C3 OPEN, NO SEALS

Name: 6204-C3 Ball Bearing 20x47x14mm 6204 C3 OPEN, NO SEALS
Brand: MAPLE ACE
Price: 3.65 CAD
Availability: InStock

Disponibilité: En stock

Type de produit: Ball Bearings

Vendeur: MAPLE ACE

Prix régulier $3.65 CAD

Single-row deep groove ball bearings offer high versatility across various applications. Designed with low friction, optimized for: Low noise Low vibration High...

6204 C3 Deep Groove Ball Bearing dimensions: Bore Diameter 20mm, Outside Diameter 47mm, Width 14mm. 100% Chrome Steel.
Interchange to 6204 C3, 6204/C3, 6204, 6204 CM, 6204 CN
This deep groove ball bearing is Open and has no shield or seal on both sides.
Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

Single-row deep groove ball bearings offer high versatility across various applications.
Designed with low friction, optimized for:
- Low noise
- Low vibration
- High rotational speeds
Able to support both radial and axial loads in both directions.
Easy to mount and require less maintenance compared to many other bearing types.

Specifications
Interchange

Item	6204 C3
Bearing Type	Deep groove ball bearing
Bore Diameter	20.00 mm
Outside Diameter	47.00 mm
Width	14.00 mm
Width Inner Ring	14.00 mm
Width Outer Ring	14.00 mm
Dynamic Load Rating Cr	13500 N
Static Load Rating Cor	6550 N
Limiting Speed	20000 r/min
Clearance	Normal
Tolerance Classes	P5
Cage	Metal
Closures	Without
Lubrication Type	Without
Lubrication Temperature	Without
Rolling Element Indicator	Ball
Material	Gcr15
Product Weight	0.110 KG
