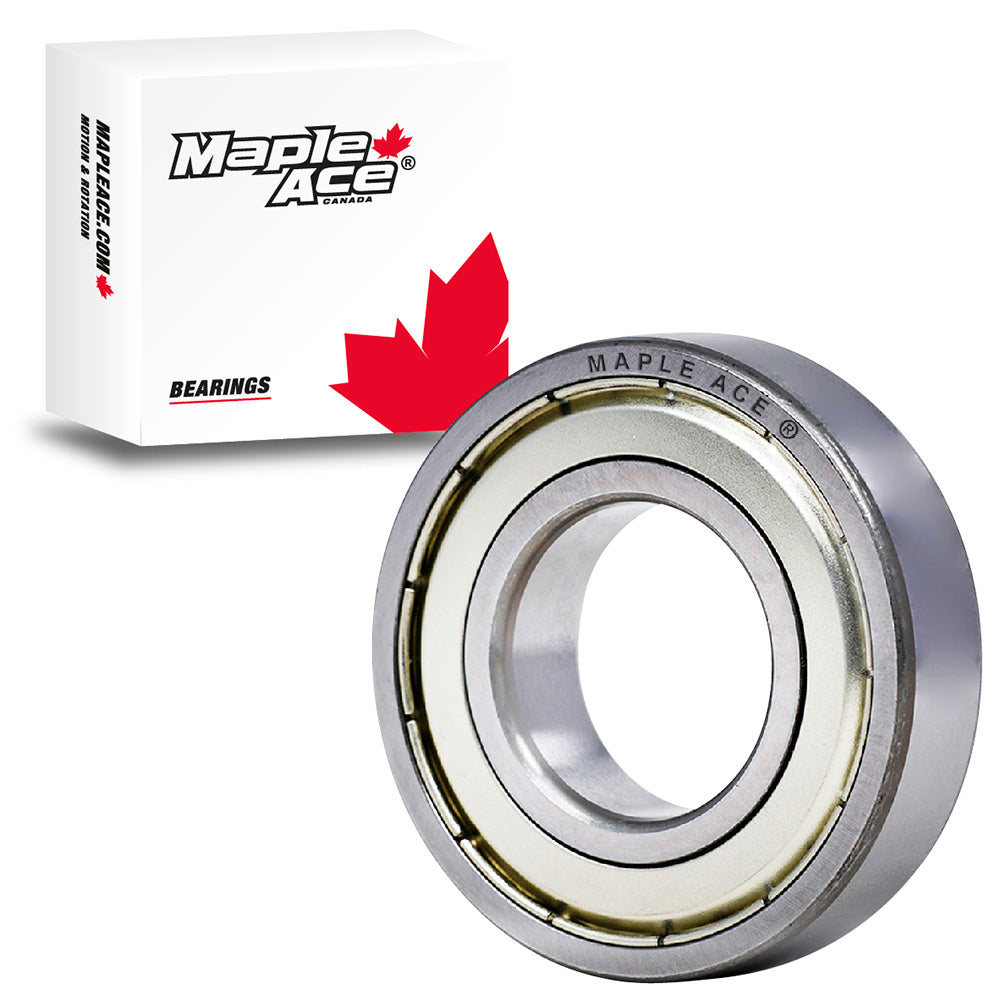

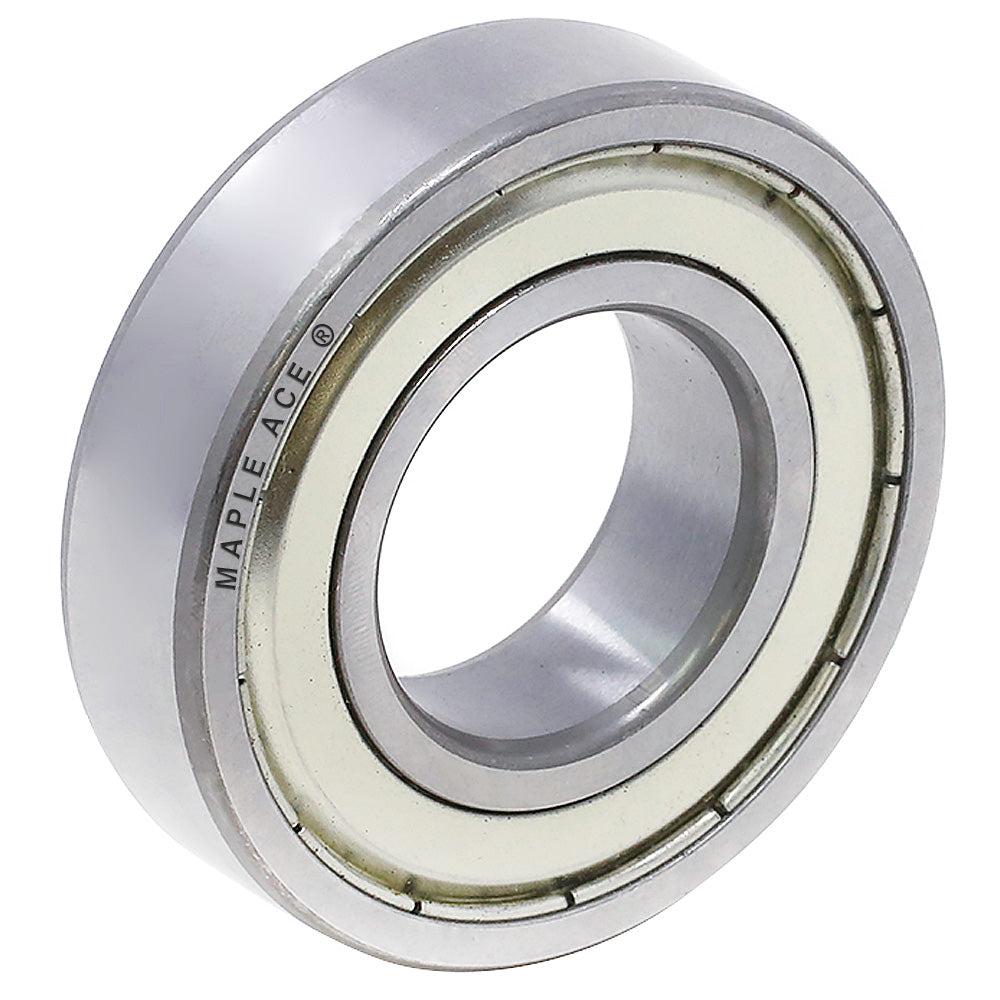

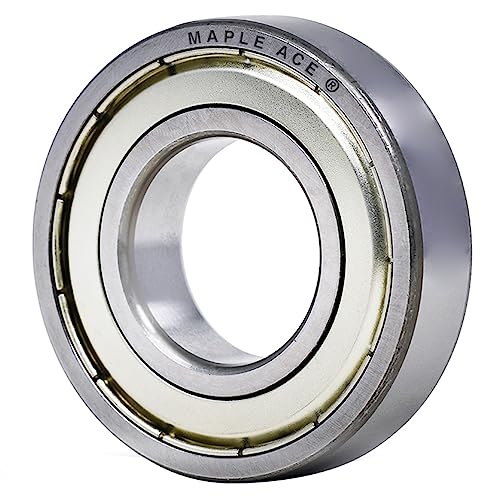

16002-ZZ Ball Bearing 15x32x8mm 16002 ZZ Metal Shielded
Prix régulier $3.29 CAD
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...
- 16002 ZZ Deep Groove Ball Bearing dimensions: Bore Diameter 15mm, Outside Diameter 32mm, Width 8mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
- Interchange to 16002, 16002 Z, 16002 ZZ, 16002 ZR, 16002 ZZR, 16002 2ZR, 16002 2Z, 16002 ZZE
- This deep groove ball bearing has a shield on both sides, non-connected to the inner ring, to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: ATVs, Motorcycles, Bicycle, Hobby and Recreation Bearing, Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
-
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
Item | 16002-ZZ |
Bearing Type | Deep groove ball bearing |
Bore Diameter | 15.00mm |
Outside Diameter | 32.00mm |
Width | 8.00mm |
Width Inner Ring | 8.00mm |
Width Outer Ring | 8.00mm |
Dynamic Load Rating Cr | 5850 N |
Static Load Rating Cor | 2850 N |
Limiting Speed | 26000 r/min |
Clearance | CN |
Tolerance Classes | P5 |
Cage | Metal |
Closures | Shield on both sides |
Lubrication Type | Grease Chevron |
Lubrication Temperature | -30°C to +180°C |
Rolling Element Indicator | Ball |
Material | Gcr15 |
Product Weight | 0.025 KG |
FAG | 16002 2ZR |
Koyo | 16002 ZZ |
NACHI | 16002 ZZ |
NSK | 16002 ZZ |
NTN | 16002 ZZ |
SKF | 16002 2Z |
SNR | 16002 2Z |
TIMKEN | 16002 ZZ |
