UCF208 Palier à bride 40mm d'alésage, 4 boulons auto-alignants, base solide

: En stock

: Mounted Bearings

: MAPLE ACE

Prix régulier $42.49 CAD

Ce roulement à bague carrée UCF se compose d'une bague d'insertion et d'un carter en fonte. Le roulement à bague carrée peut...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

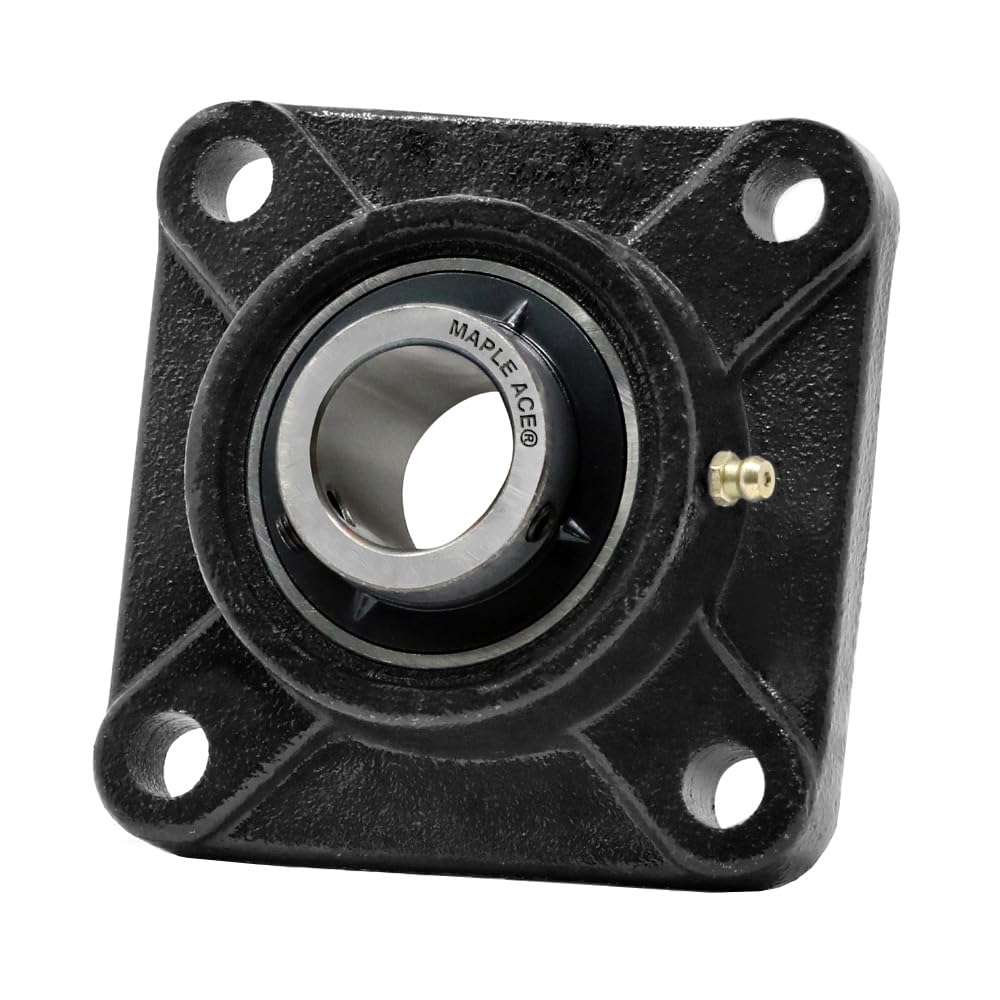

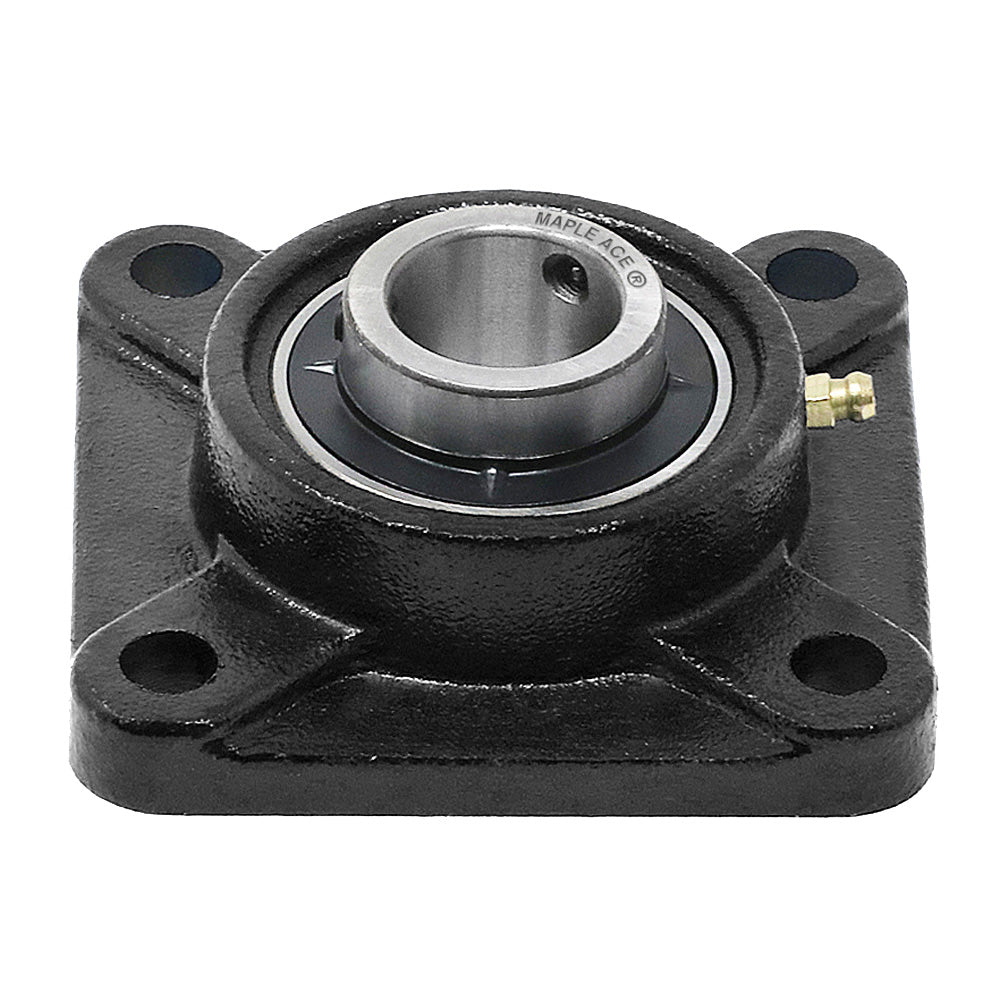

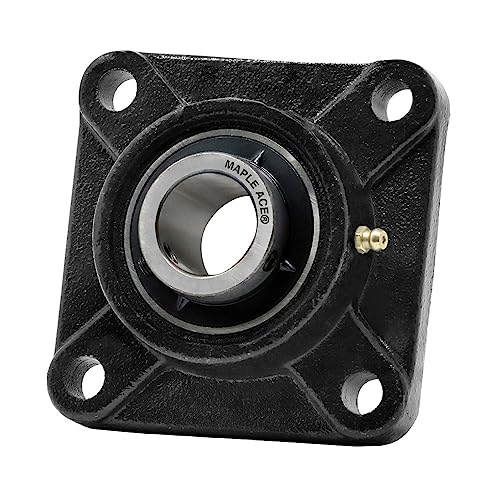

  • Ce roulement à bague carrée UCF se compose d'une bague d'insertion et d'un carter en fonte.
  • Le roulement à bague carrée peut être monté sur des surfaces nivelées à l'aide des quatre trous de boulon.
  • Le raccord degraissage est décalé sur le dessus, pour relubrifier le roulement.
  • Le ROULEMENT INSERTATIF possède deux boucliers métalliques pour protéger le roulement de la poussière ou de toute contamination possible.
  • Il est muni d'une vis de blocage sur sa surface, pour fixer l'arbre.

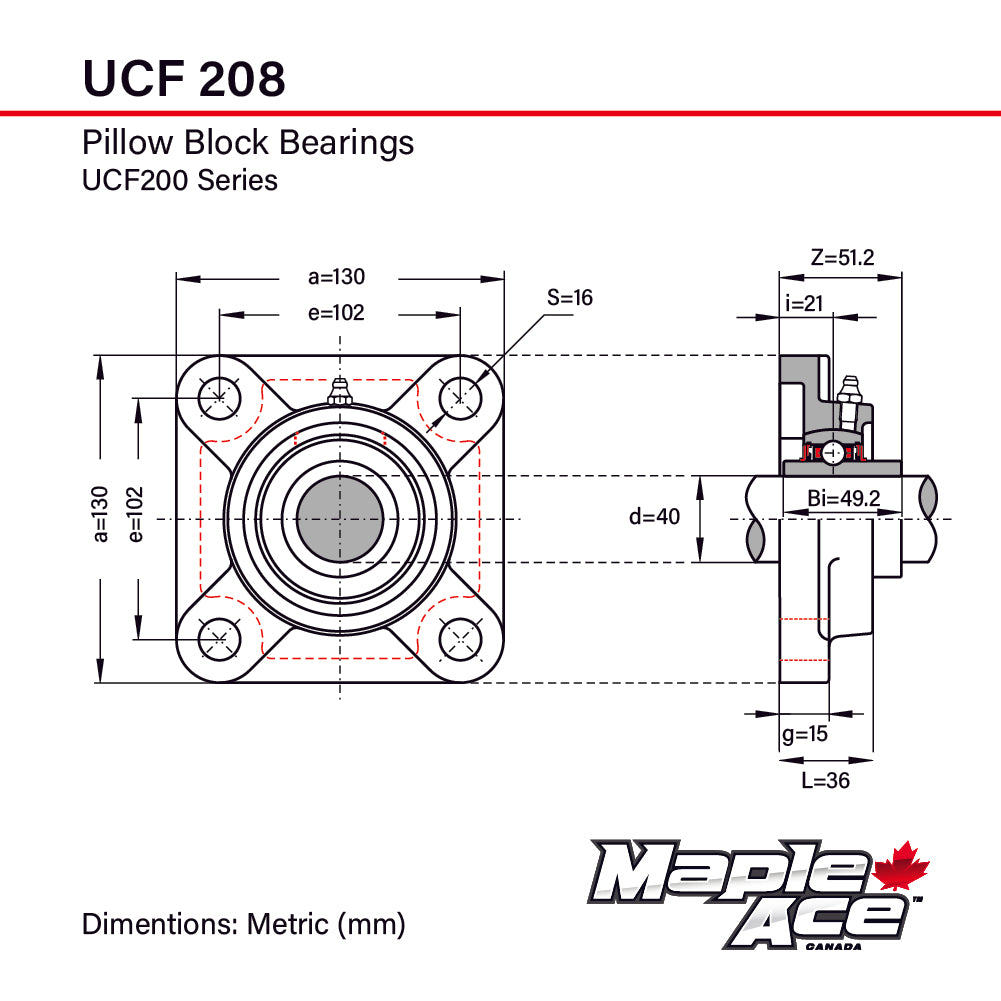

Item  UCF208
Series  UCF200
Bearing Number  UC208
Housing Number  F208
Number of Bolts
Bolt Size (S)  1/2 in
Bearing Inner Diameter (d) Metric  40.00 mm
Bearing Inner Diameter (d) Inch  1.5748 in
Bearing Width Inner Ring (Bi) Matric  49.2 mm
Bearing Width Inner Ring (Bi) Inch  1.937 in
Bolt Hole Center to Center (e) Matric  102 mm
Bolt Hole Center to Center (e) Inch  4.015 in
Flange width (a) Matric  130 mm
Flange width (a) Inch  5.118 in
Overall Height (Z) Matric  51.2 mm
Overall Height (Z) Inch  2.015 in
Dynamic Load Rating Cr  30700 N
Static Load Rating Cor  19000 N
Limiting Speed  4800 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H200 Cast Iron
Locking Type  Set Screws
Weight  1.590 KG
Koyo UCF208
NACHI UCF208
RHP SF40
NTN UCF208D1
SKF FY 30 TF
SNR UCF208
TIMKEN UCF208

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
UCF208 Flange Bearing 40mm Bore, 4-Bolt Self-Aligning, Solid Base

UCF208 Palier à bride 40mm d'alésage, 4 boulons auto-alignants, base solide

Prix régulier $42.49
