Description

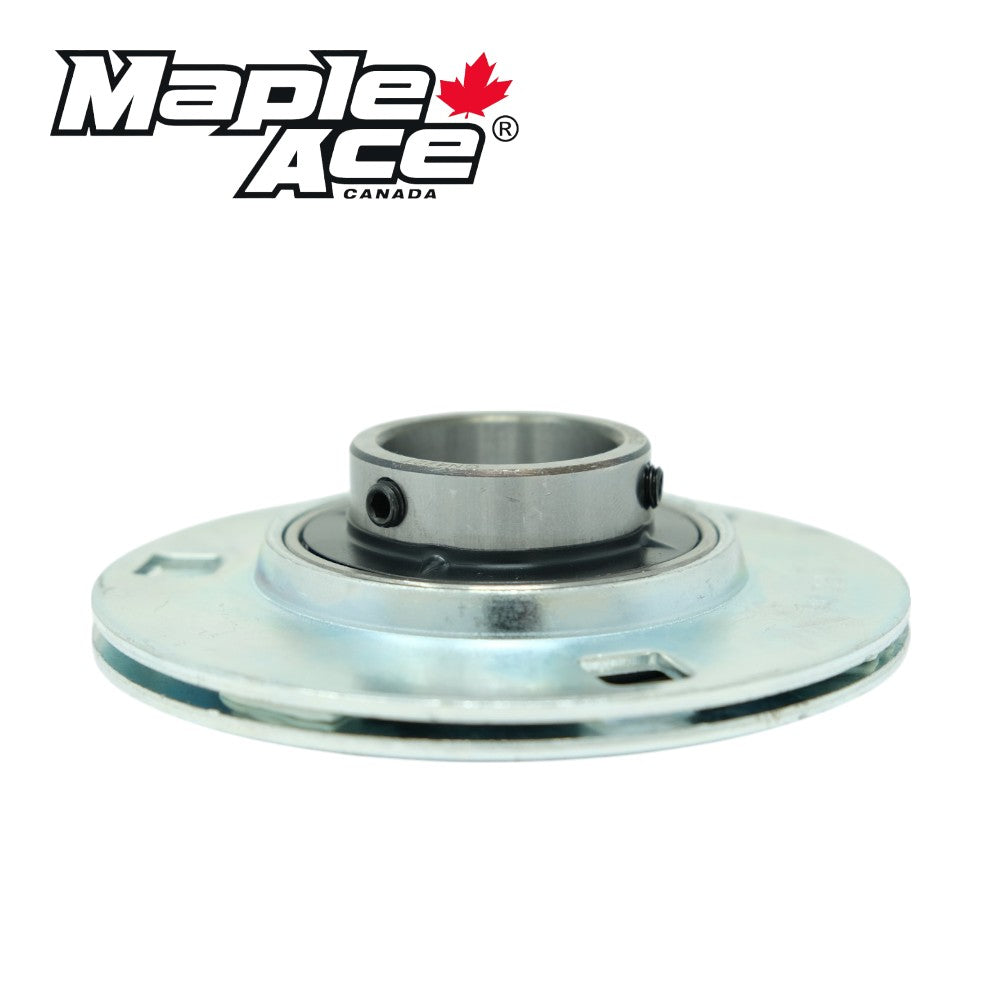

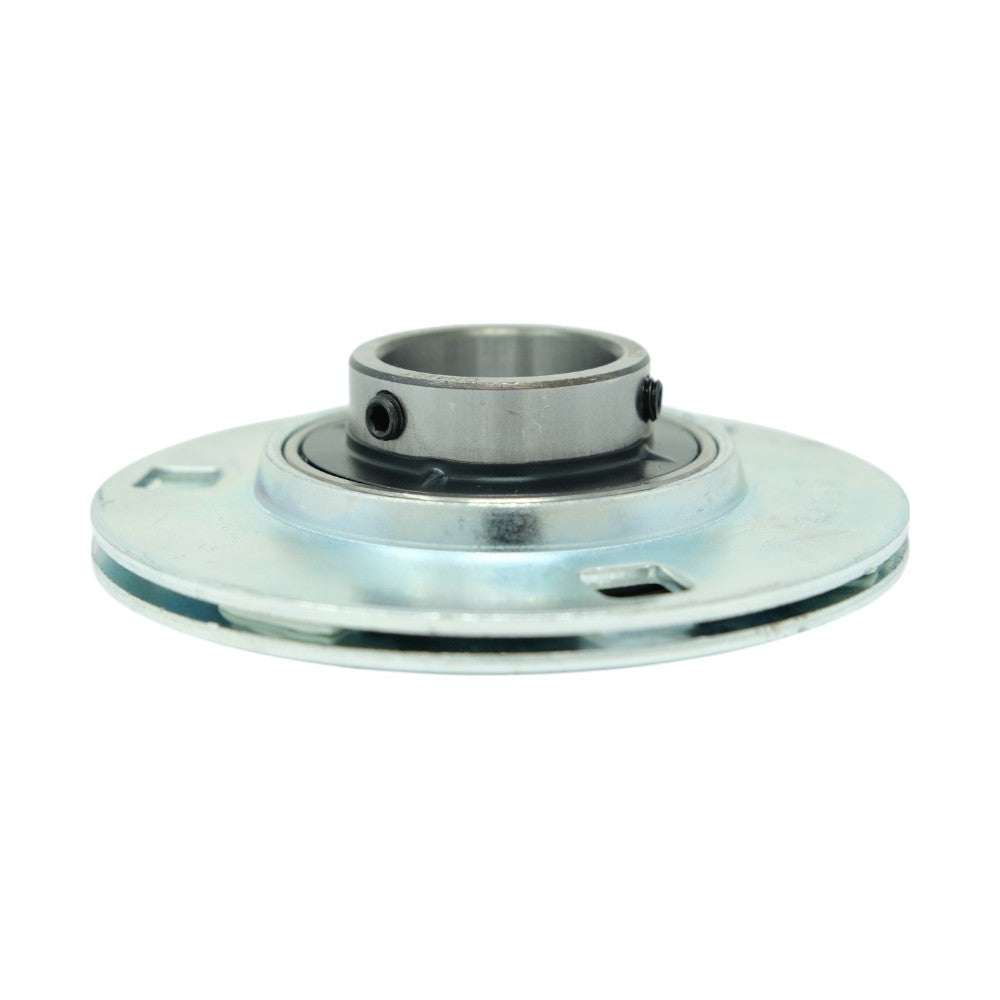

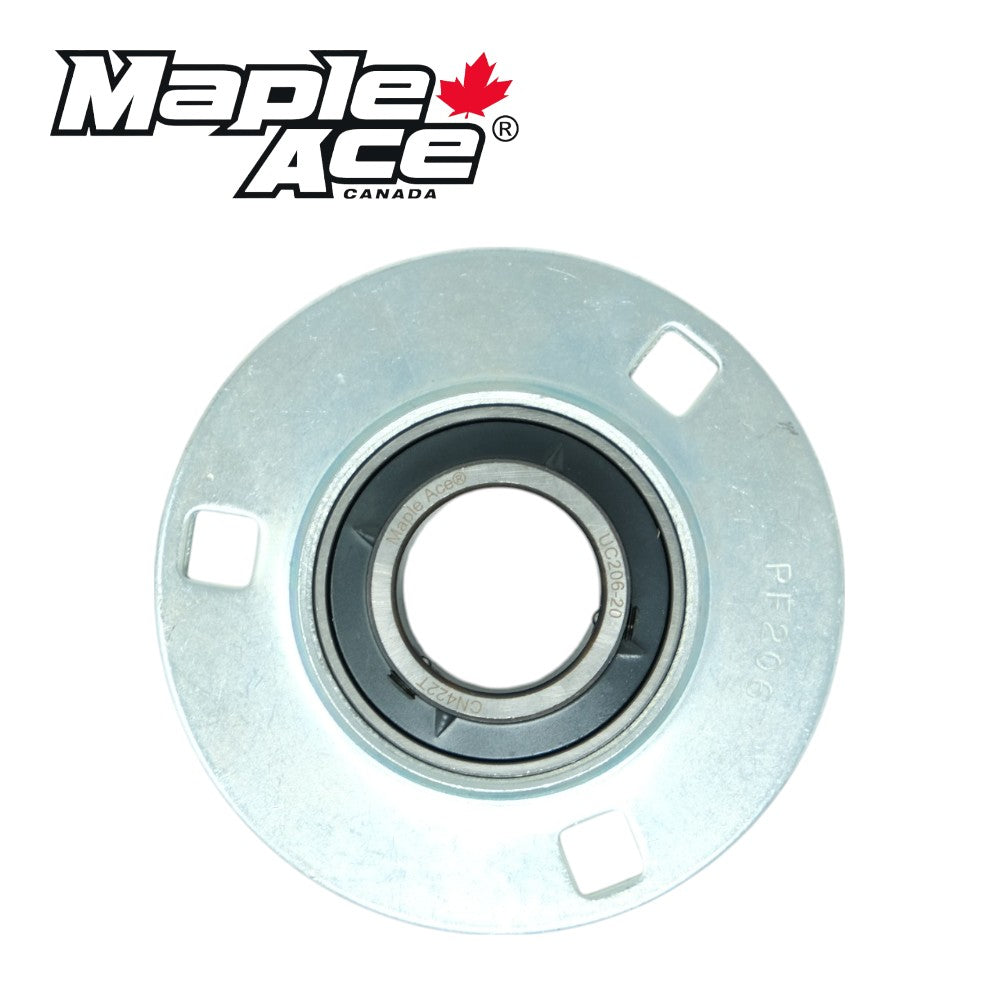

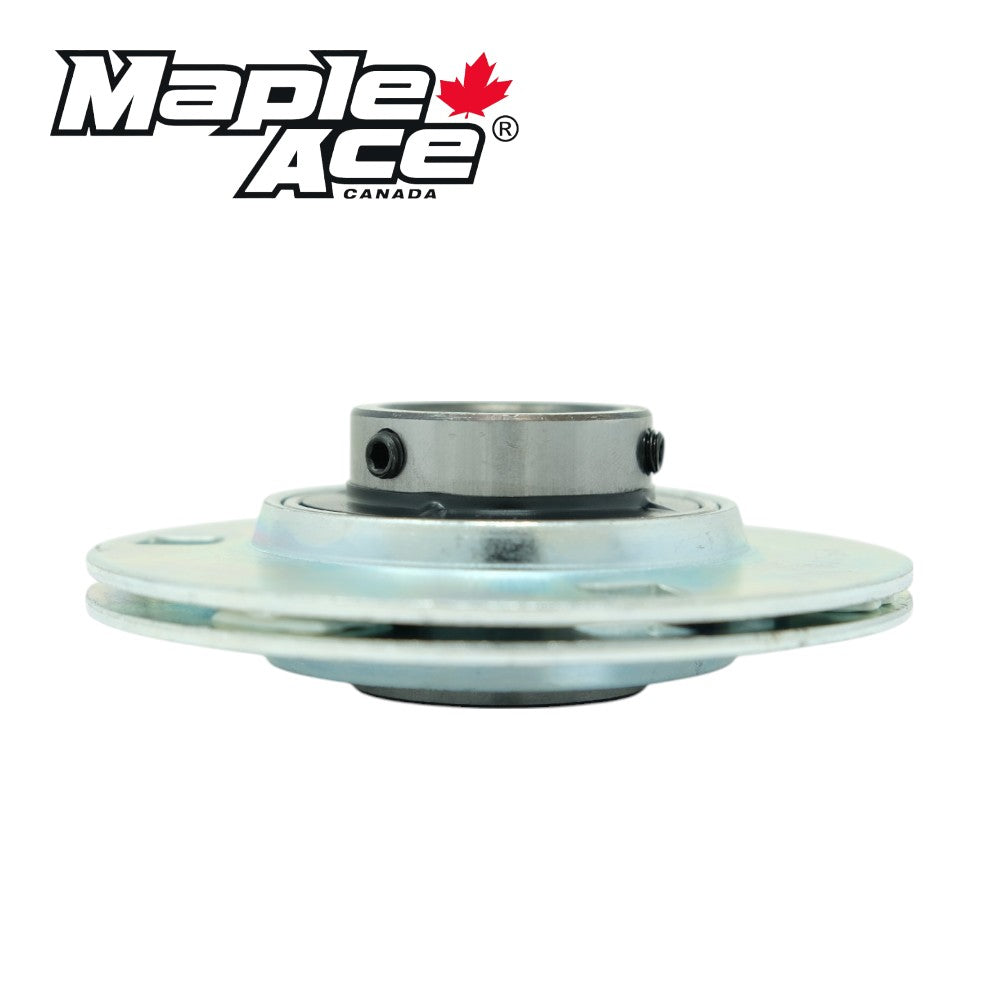

Round flanged pressed-steel housing with insert bearing (set screw locking, extended inner ring) are lightweight units manufactured from cold-rolled steel and zinc-coated for corrosion resistance. Designed for light-duty applications, these housings provide an economical solution for simple mounting arrangements.
The two-piece construction has no relubrication feature and allows the housing to be purchased separately from the insert bearing, giving flexibility to pair with different bearing types. Easy to mount and versatile in configuration, they are ideal for cost-sensitive applications that do not require heavy load capacity.
- Lightweight pressed-steel construction
- Cost-effective design
- Flexible insert options
- Easy installation and mounting
- Zinc coating for corrosion resistance
| Item | UCPF204-12 |
| Bearing Number | UC204-12 |
| Bearing Inner Diameter Metric | 19.05 mm |
| Bearing Inner Diameter Inch | 3/4 in |
| Outside Diameter Matric | 47.00 mm |
| Outside Diameter Inch | 1.8504 in |
| Bearing Width Inner Ring Matric | 31.00 mm |
| Bearing Width Inner Ring Inch | 1.220 in |
| Width Outer Ring Matric | 16 mm |
| Width Outer Ring Inch | 0.63 in |
| Overall length Matric | 90 mm |
| Dynamic Load Rating Cr | 12700 N |
| Static Load Rating Cor | 6700 N |
| Limiting Speed | 8500 r/min |
| Clearance | Normal |
| Bearing Sealing type | Contact, standard |
| Lubrication Type | Grease Shell RL2 |
| Lubrication Temperature | -20°C to +160°C |
| Rolling Element Indicator | Ball |
| Bearing Material | Gcr15 |
| Locking Type | Set Screws |
| Set screw Brg. Bore Metric | M6×0.75 |
| Set screw Brg. Bore Inch | 1/4-28UNF, |
| Housing Number | PF204, PF47 |
| Housing type | Flanged |
| Flanged housing type | Round |
| Number of Bolts | 3 |
| Housing Material | Pressed steel |
| Bolt Size Metric | M8 |
| Bolt Size Inch | 5/16 |
| Weight | 0.320 KG |
