UCP205-16 Pillow Block Bearing 1in Bore, 2-Bolt, Self-Aligning, Solid Base
UCP205-16 Pillow Block Bearing 1in Bore, 2-Bolt, Self-Aligning, Solid Base
UCP205-16 Pillow Block Bearing 1in Bore, 2-Bolt, Self-Aligning, Solid Base
UCP205-16 Pillow Block Bearing 1in Bore, 2-Bolt, Self-Aligning, Solid Base

UCP205-16 Pillow Block Bearing 1" Bore, 2-Bolt, Self-Aligning, Solid Base

: In stock

: Mounted Bearings

: MAPLE ACE

$15.95 CAD

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing The PILLOW BLOCK can be mounted on...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

  • This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes
  • Grease Fitting Offset on top, to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings
  • Has a Set Screw Lock on its surface, for securing the shaft

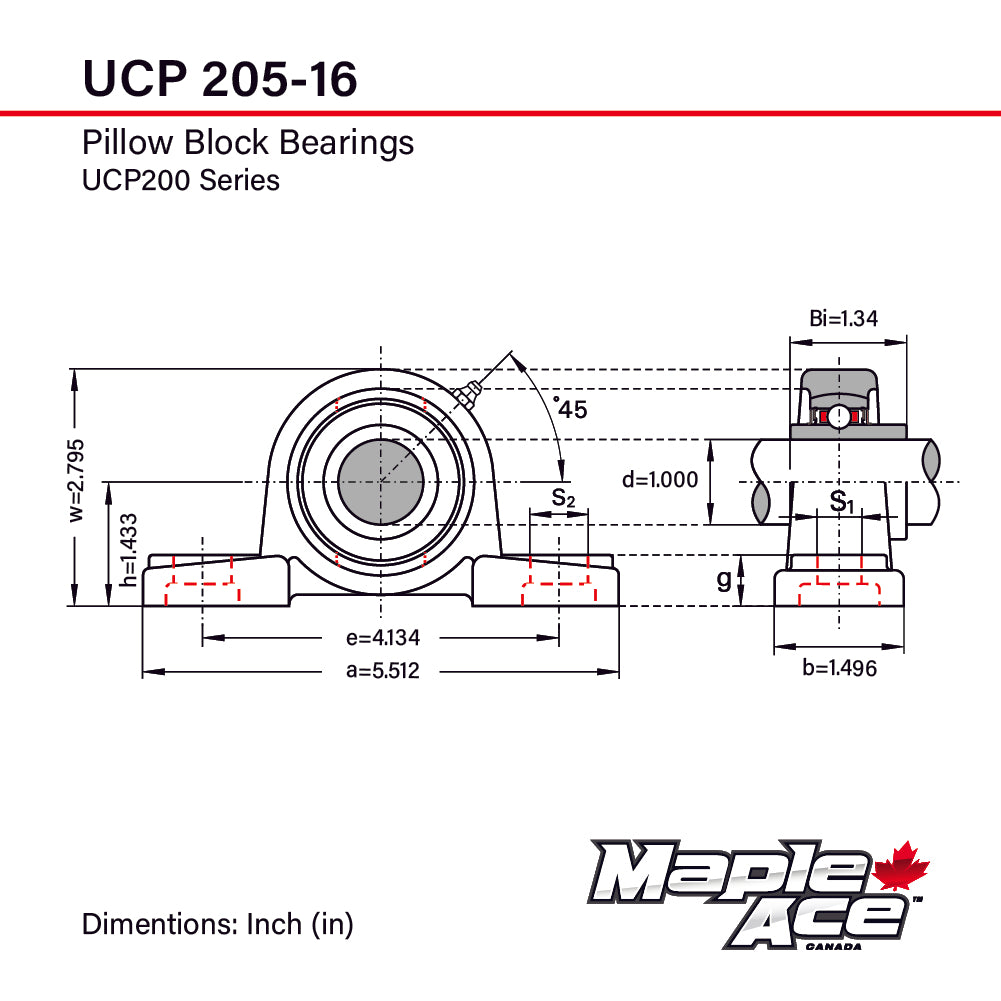

Item  UCP205-16
Series  UCP200
Bearing Number  UC205-16
Housing Number  P205
Bearing Inner Diameter Metric  25.40 mm
Bearing Inner Diameter Inch  1.00 in
Bearing Width Inner Ring Matric  34.00 mm
Bearing Width Inner Ring Inch  1.339 in
Bolt Size  3/8 in
Number of Bolts  2
Bolt Hole Center to Center (e) Matric  105 mm
Bolt Hole Center to Center (e) Inch 3.134 in
Overall Length (a) Matric  140 mm
Overall Length (a) Inch  5.512 in
Overall Height (w) Matric  71 mm
Overall Height (w) Inch  2.795 in
Overall Width (b) Matric  38 mm
Overall Width (b) Inch  1.496 in
Mounting Surface to Shaft Center (h) Matric  36.5 mm
Mounting Surface to Shaft Center (h) Inch  1.433 in
Dynamic Load Rating Cr  9560 N
Static Load Rating Cor  4750 N
Limiting Speed  9500 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H200 Cast Iron
Locking Type  Set Screws
Weight  0.740 KG
Koyo UCP205-16
NACHI UCP205-16
RHP NP1
NTN UCP205-100D1
SKF SY 1. TF
SNR UCP205-16
TIMKEN UCP205-16

You can use this PILLOW BLOCK BALL BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
