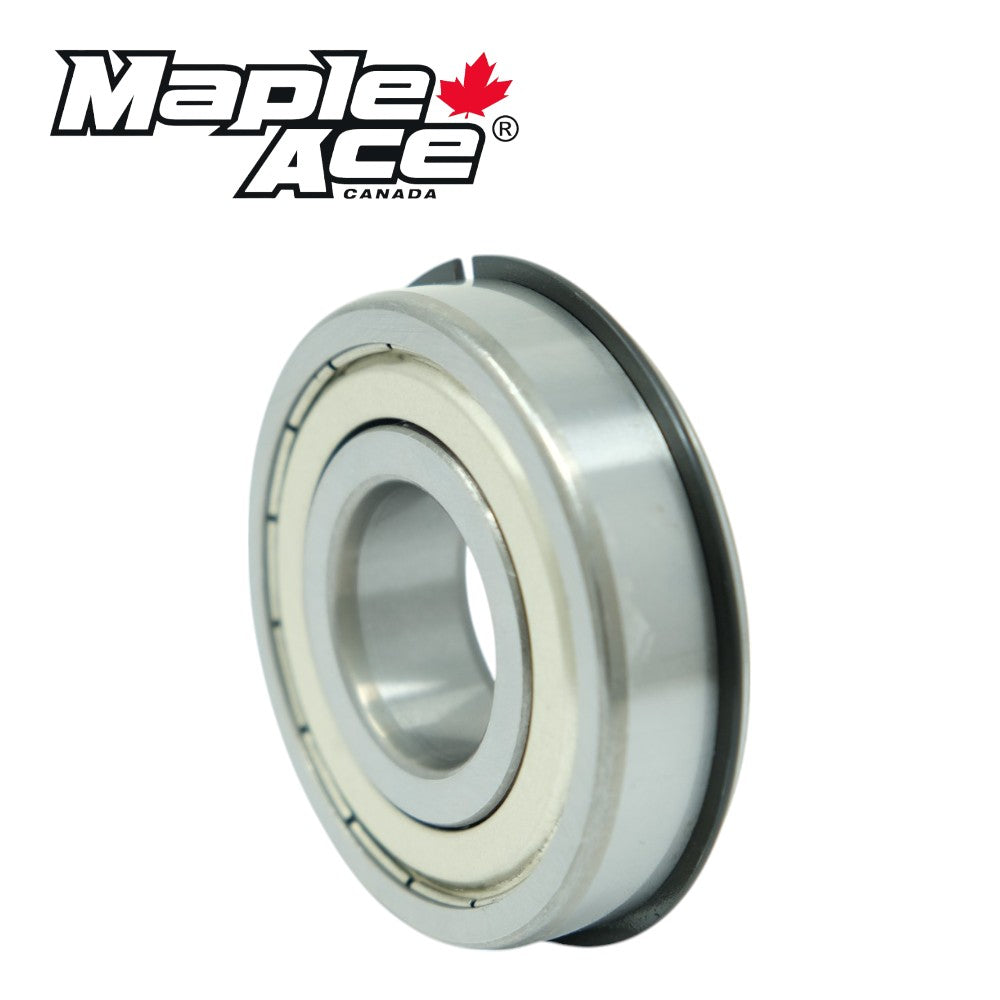

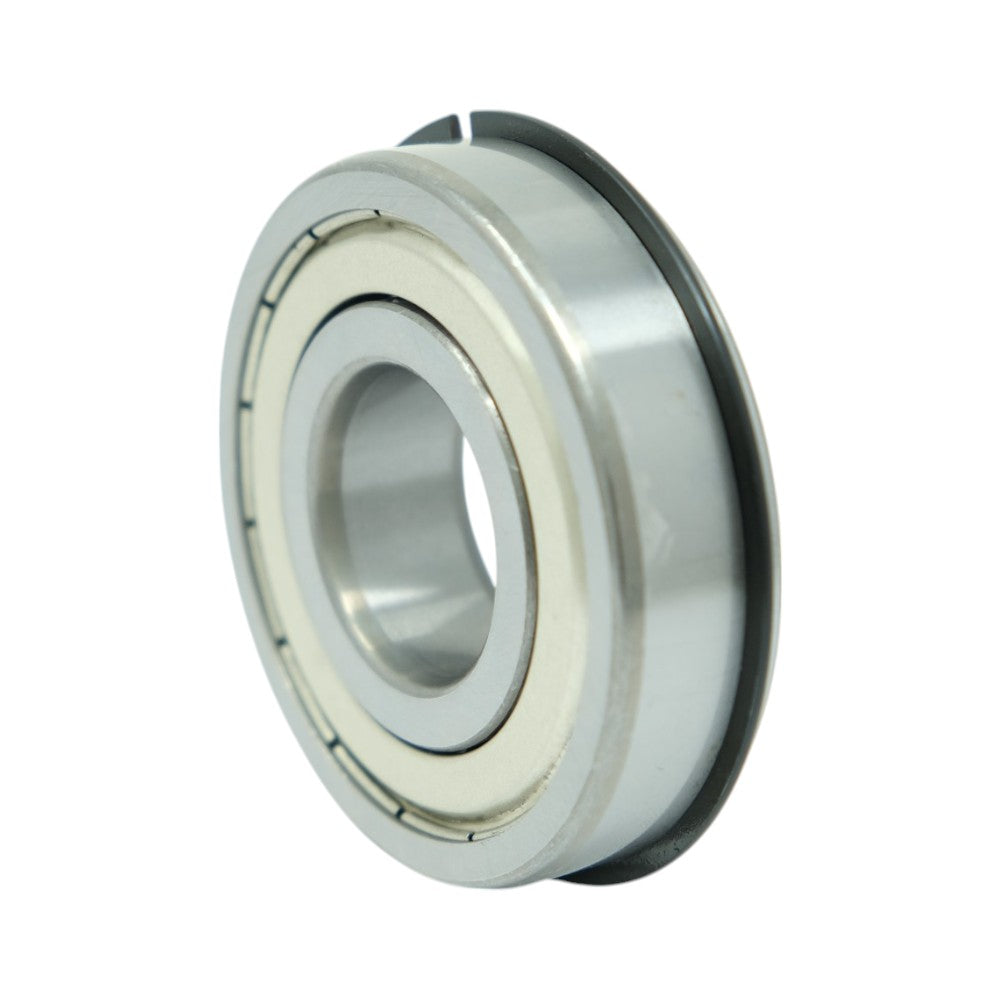

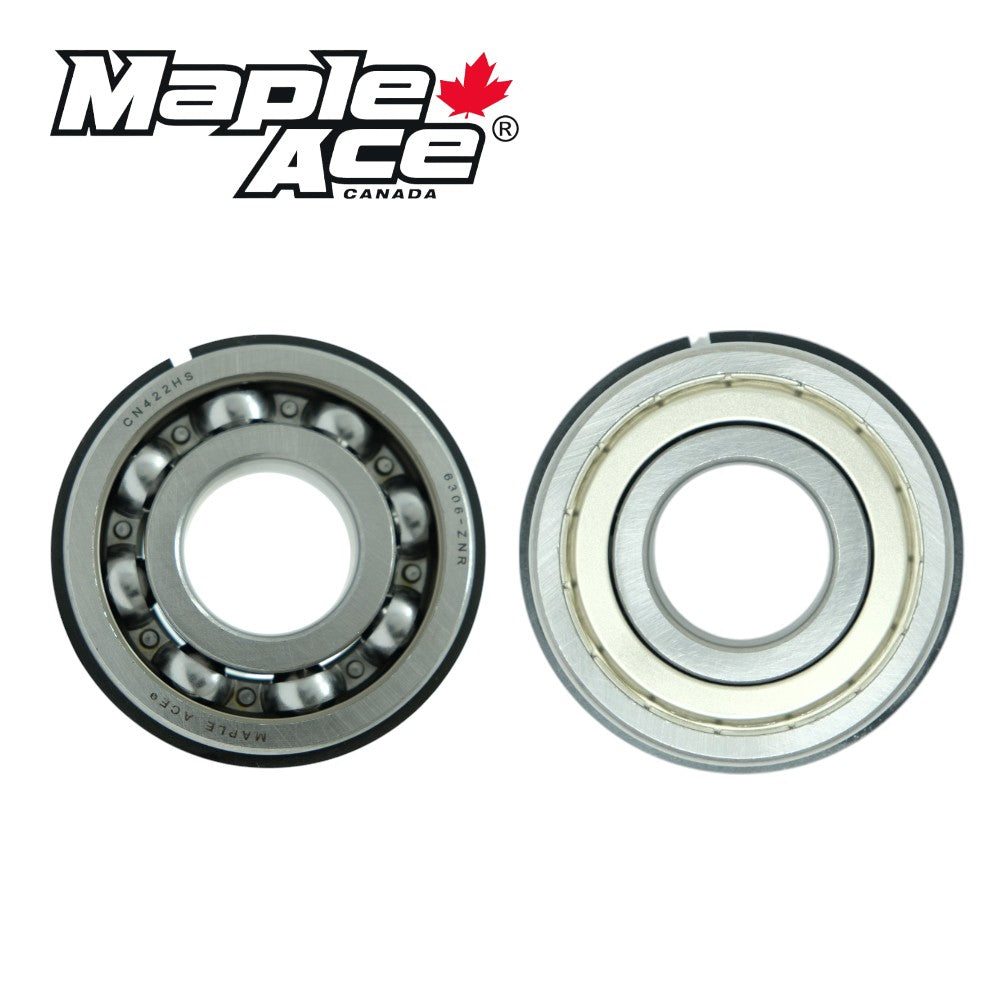

6306-ZNR Ball Bearing w/Snap Ring 30x72x19mm 6306 ZNR Metal Shielded
Regular price $16.95 CAD
Single-row deep groove ball bearing with snap ring groove and seals or shields on one or both sides. Key features: Versatile design...
- 6306 ZNR Deep Groove Ball Bearing dimensions: Bore Diameter 30mm, Outside Diameter 72mm, Width 19mm. 100% Chrome Steel.
- Interchange to 6306 N, 6306 ZN, 6306 ZRNR
- This deep groove bearing has a Snap Ring located in a groove on the outer ring and a Shield on one side, Non-Connected to the Inner Ring, to Protect the Bearing from Dust or any Possible Contamination. You can easily remove the shield if your application requires a ball bearing open without seals.
- Application: ATVs, Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearing with snap ring groove and seals or shields on one or both sides.
- Key features:
- Versatile design suitable for various applications.
- Low friction, optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Accommodates both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance than many other bearing types.
-
Snap ring:
- Fitted in an annular groove in the outer ring.
- Facilitates precise axial location within housings.
-
Integral sealing system:
- Extends bearing service life by retaining lubricant.
- Protects against contaminants entering the bearing.
Item | 6306-ZNR |
Bearing Type | Deep groove ball bearing |
Bore Diameter | 30.00mm |
Outside Diameter | 72.00mm |
Width | 19.00mm |
Width Inner Ring | 19.00mm |
Width Outer Ring | 19.00mm |
Dynamic Load Rating Cr | 29600 N |
Static Load Rating Cor | 16000 N |
Limiting Speed | 13000 r/min |
Locating feature | Snap ring (fitted) |
Clearance | CN |
Tolerance Classes | P5 |
Cage | Metal |
Closures | Shield on one side |
Lubrication Type | Grease Chevron |
Lubrication Temperature | -30°C to +180°C |
Rolling Element Indicator | Ball |
Material | Gcr15 |
Product Weight | 0.370 KG |
FAG | 6306 ZNR |
INA | 6306 ZNR |
Koyo | 6306 ZNR |
NACHI | 6306 ZNR |
NSK | 6306 ZNR |
NTN | 6306 ZNR |
SKF | 6306 ZNR |
SNR | 6306 ZNR |
TIMKEN | 6306 ZNR |
