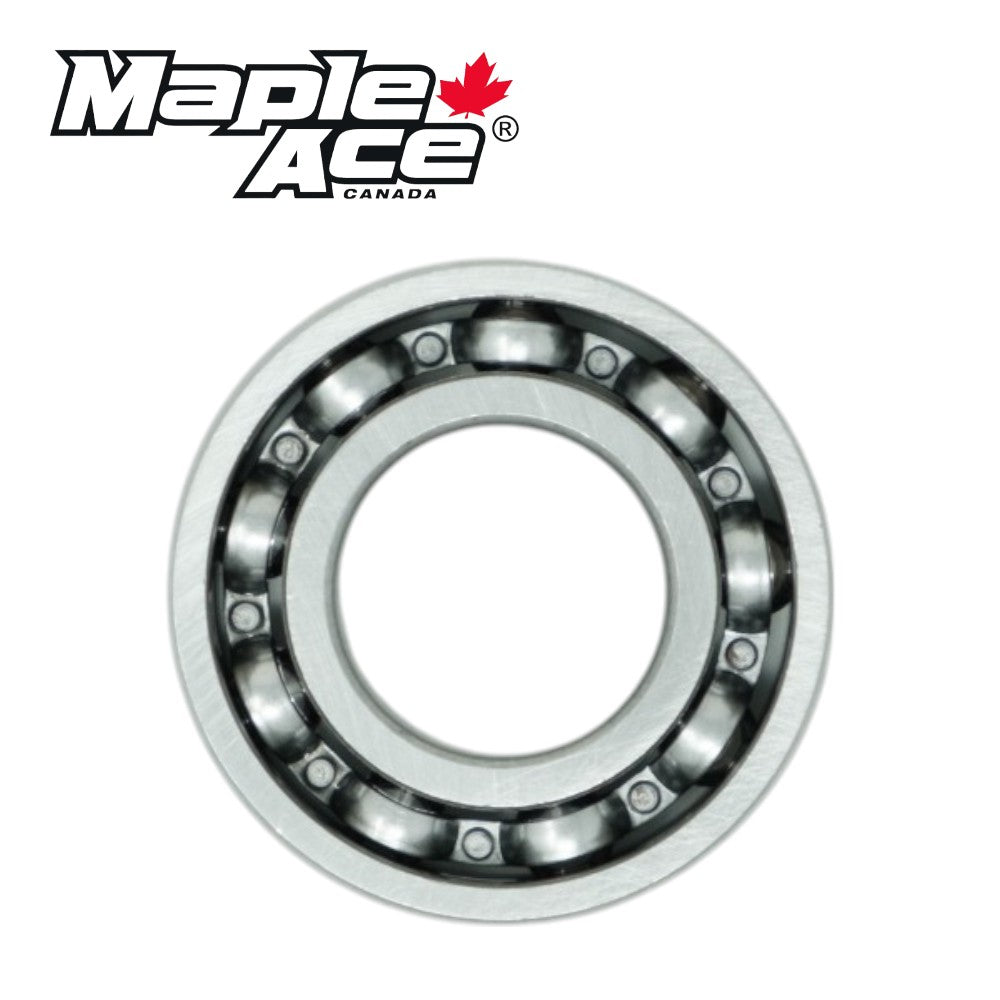

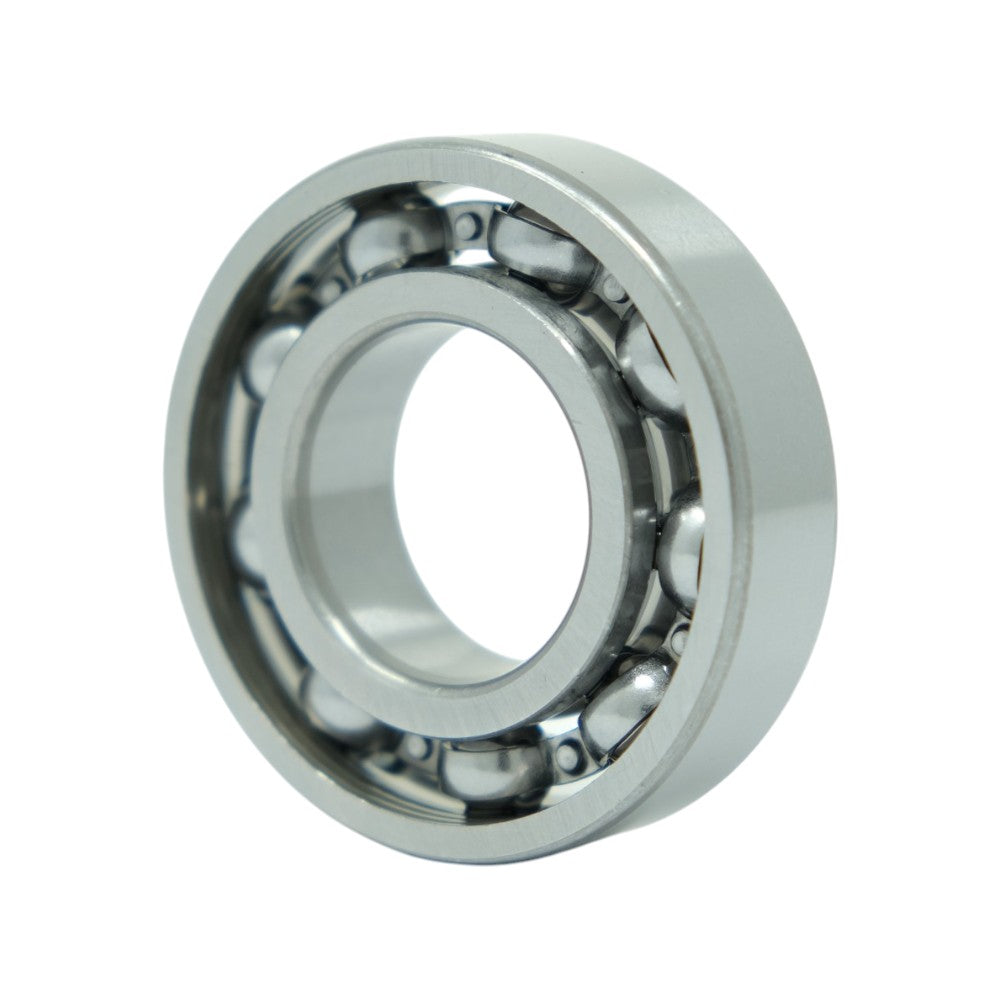

6306-C3 Ball Bearing 30x72x19mm 6306 C3 OPEN, NO SEALS

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $9.95 CAD

Single-row deep groove ball bearings offer high versatility across various applications. Designed with low friction, optimized for: Low noise Low vibration High...

  • 6306 C3 Deep Groove Ball Bearing dimensions: Bore Diameter 30mm, Outside Diameter 72mm, Width 19mm. 100% Chrome Steel.
  • Interchange to 6306 C3, 6306/C3, 6306, 6306 CM, 6306 CN
  • This deep groove ball bearing is Open and has no shield or seal on both sides.
  • Application: ATVs, Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings offer high versatility across various applications.
  • Designed with low friction, optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Able to support both radial and axial loads in both directions.
  • Easy to mount and require less maintenance compared to many other bearing types.

Item  6306 C3
Bearing Type  Deep groove ball bearing
Bore Diameter  30.00mm
Outside Diameter  72.00mm
Width  19.00mm
Width Inner Ring  19.00mm
Width Outer Ring  19.00mm
Dynamic Load Rating Cr  29600 N
Static Load Rating Cor  16000 N
Limiting Speed  13000 r/min
Clearance  C3
Tolerance Classes  P5
Cage  Metal
Closures  Without
Lubrication Type  Without
Lubrication Temperature  Without
Rolling Element Indicator  Ball
Material  Gcr15
Product Weight  0.350 KG
FAG 6306 C3
Koyo 6306 C3
NACHI 6306 C3
NSK 6306 C3
NTN 6306 C3
SKF 6306 C3
SNR 6306 C3
TIMKEN 6306 C3
