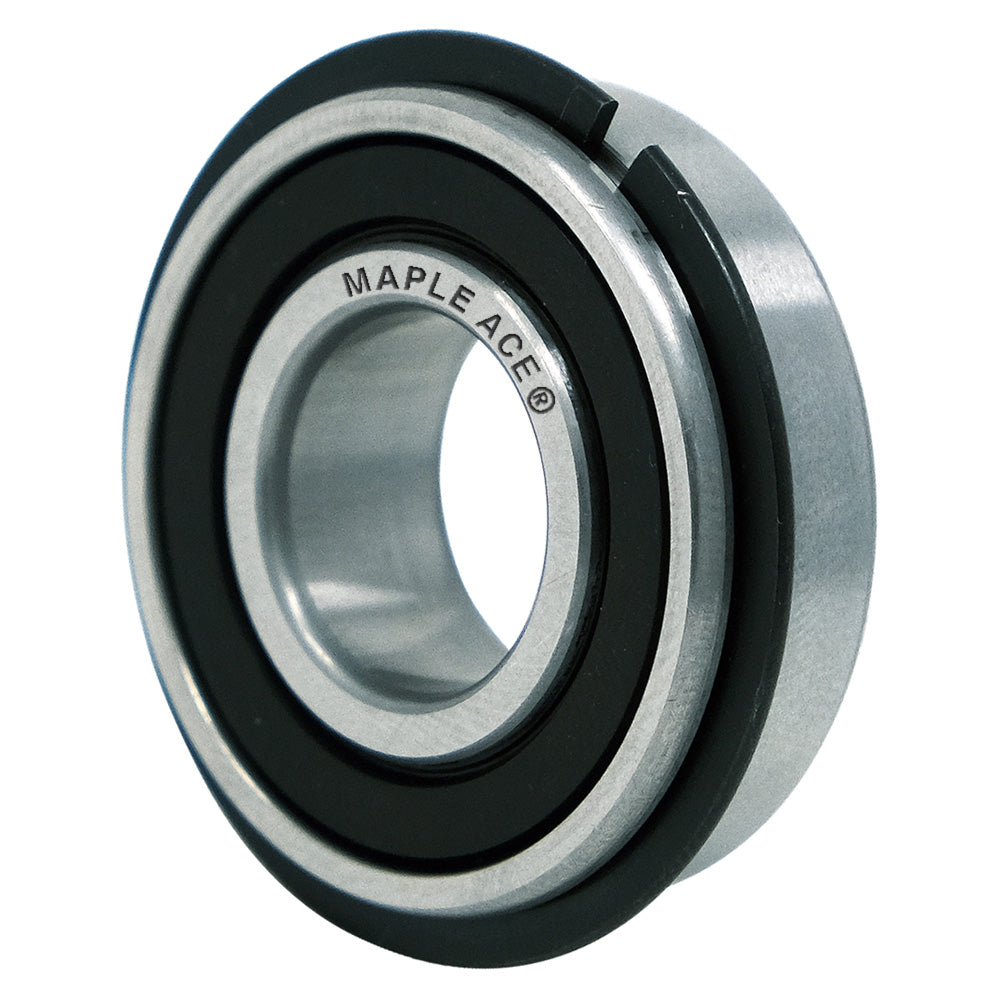

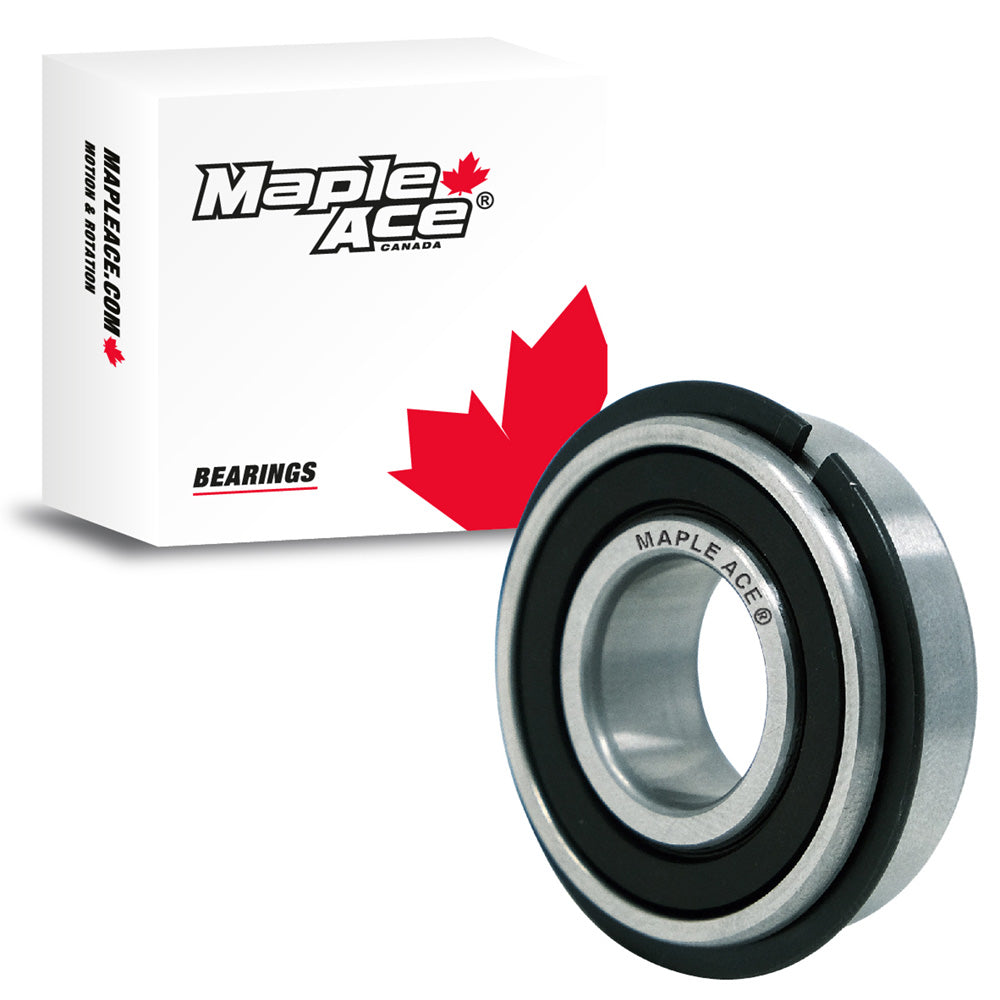

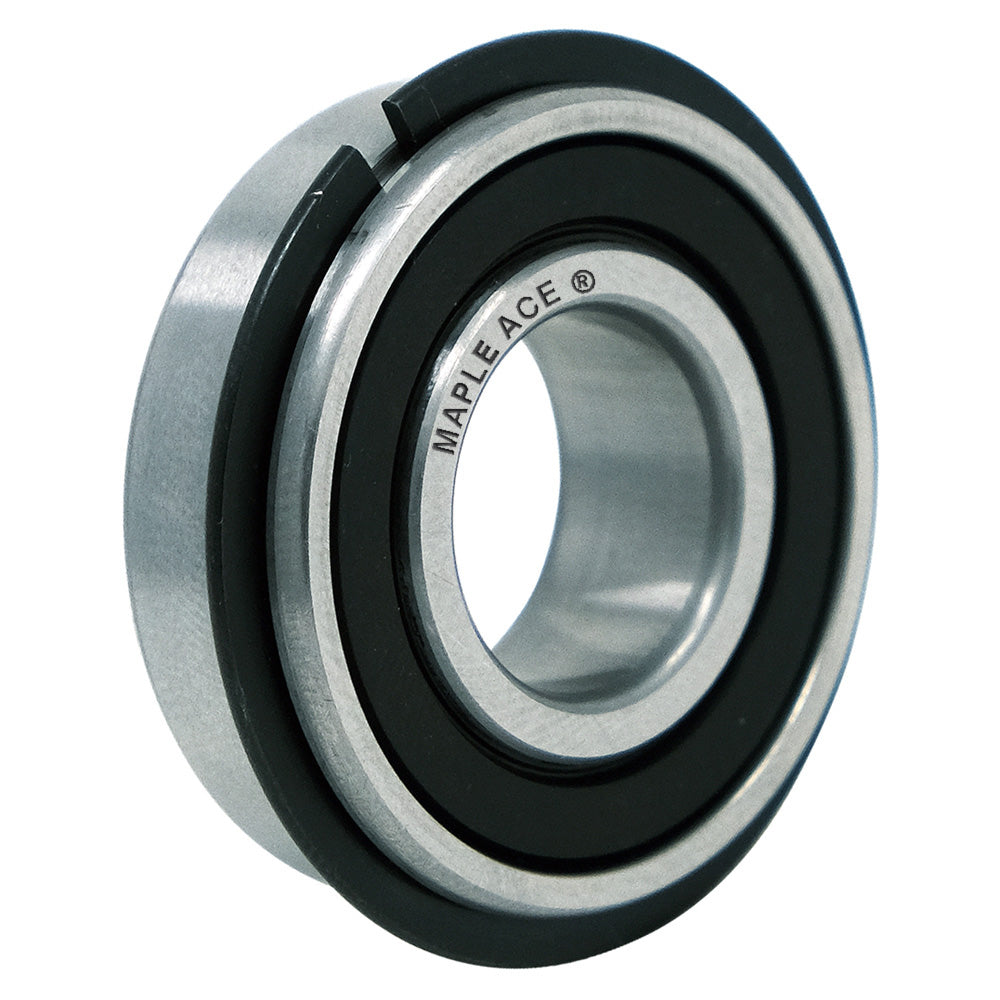

1622-2RSNR Ball Bearing w/Snap Ring 9/16inx1-3/8inx7/16in Rubber Sealed
1622-2RSNR Ball Bearing w/Snap Ring 9/16inx1-3/8inx7/16in Rubber Sealed
1622-2RSNR Ball Bearing w/Snap Ring 9/16inx1-3/8inx7/16in Rubber Sealed

1622-2RSNR Ball Bearing w/Snap Ring 9/16"x1-3/8"x7/16" Rubber Sealed

: In stock

: Ball Bearings

: MAPLE ACE

$6.49 CAD

Single-row deep groove ball bearing with snap ring groove and seals or shields on one or both sides. Key features: Versatile design...

  • 1622 2RSNR Deep Groove Ball Bearing dimensions: Bore Diameter 9/16 in, Outside Diameter 1-3/8 in, Width 7/16 in. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 1622, 1622 RS, 1622 NR, 22209-00, 22209-77, 22209-88, S22209-88, 1622NS, 1622DS, 1622DC, 1621DOG, BR-22, BR-7722, BR-9922, 230-144, 1-8767, 46983, 7046983, 7046983YP.
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearing with snap ring groove and seals or shields on one or both sides.
  • Key features:
    • Versatile design suitable for various applications.
    • Low friction, optimized for:
      • Low noise
      • Low vibration
      • High rotational speeds
  • Accommodates both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance than many other bearing types.
  • Snap ring:
    • Fitted in an annular groove in the outer ring.
    • Facilitates precise axial location within housings.
  • Integral sealing system:
    • Extends bearing service life by retaining lubricant.
    • Protects against contaminants entering the bearing.

Item 1622-2RSNR
Bearing Type 1600
Bore Diameter 14.275 mm
Outside Diameter 34.925 mm
Width 11.125 mm
Width Inner Ring 11.125 mm
Width Outer Ring 11.125 mm
Dynamic Load Rating Cr 8520 N
Static Load Rating Cor 3400 N
Limiting Speed 15000 r/min
Clearance Normal
Tolerance Inner Ring 0 to -7 μm
Tolerance Outer Ring 0 to -9 μm
Tolerance Classes P5
Cage Metal
Closures Seal on both sides
Lubrication Type Grease Chevron
Lubrication Temperature -30°C to +180°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 46 GR
1622 2RSNR, 1622-2RSNR

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Wheel Bearing
  • Automotive
  • ATV
  • Motorcycle
  • Snowmobile
  • Go-KART
  • Marine
  • Appliances
  • Sporting Machines
  • Industrial Applications
  • Electric Motor
  • HVAC
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices

    • 1622-2RSNR Ball Bearing w/Snap Ring 9/16"x1-3/8"x7/16" Rubber Sealed

    $6.49
