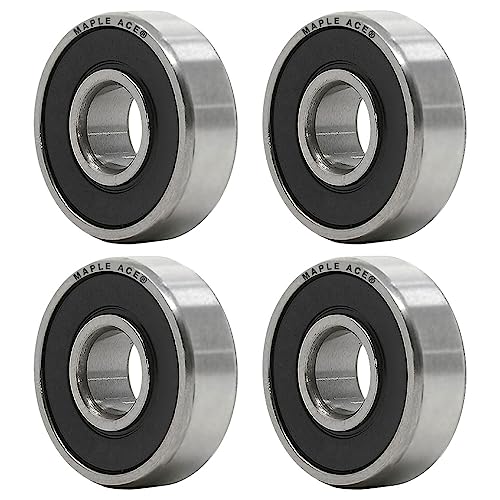

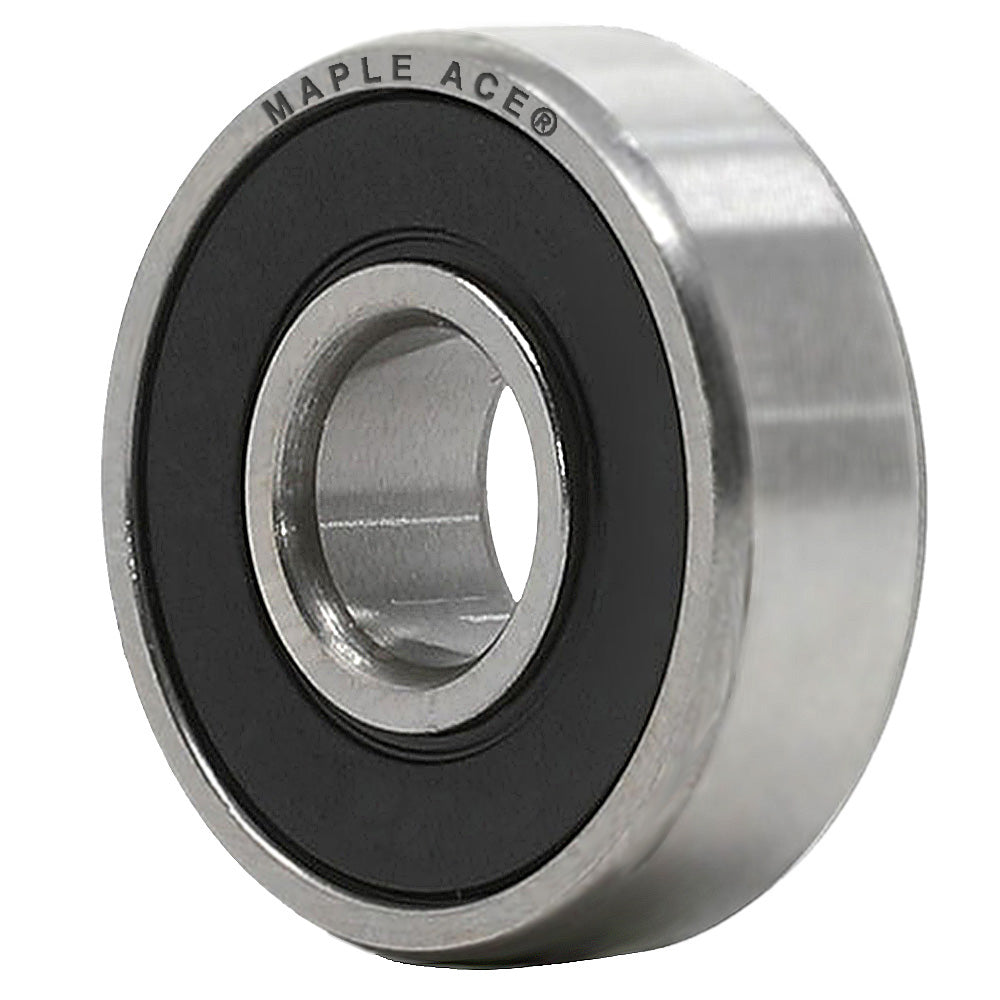

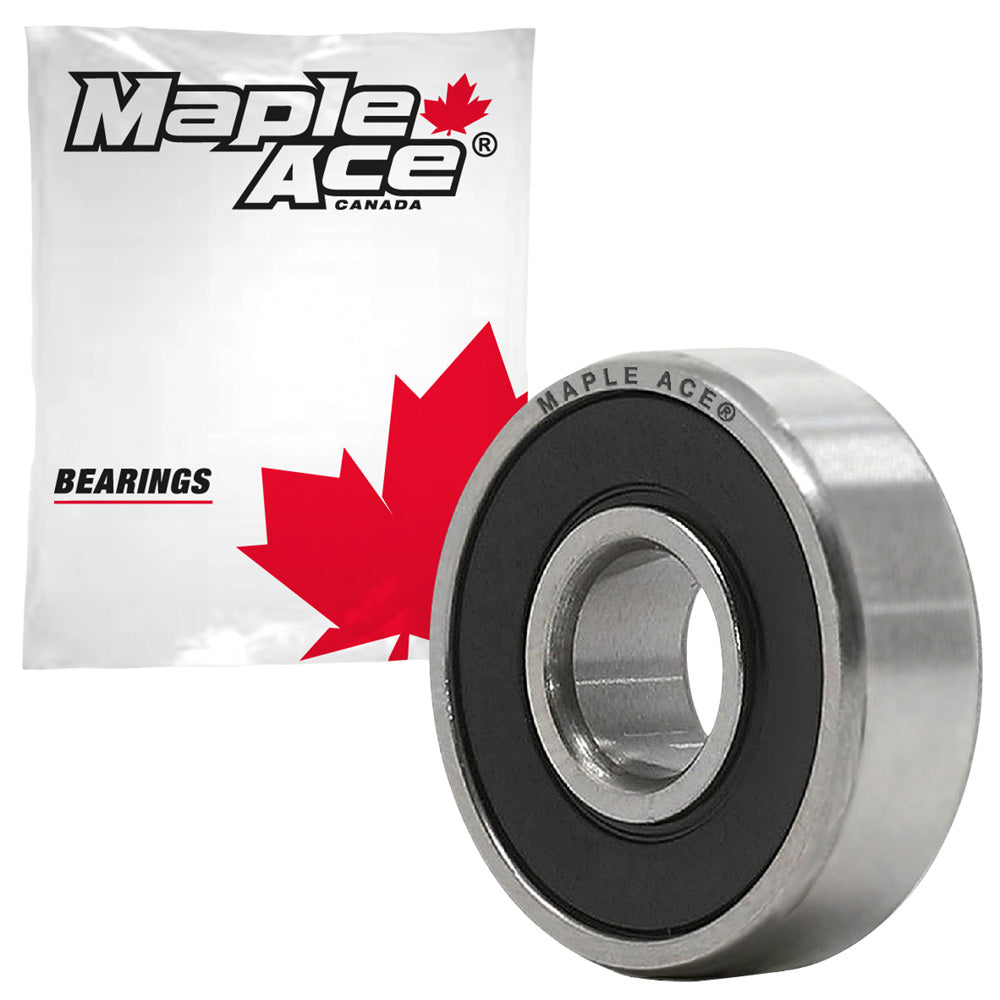

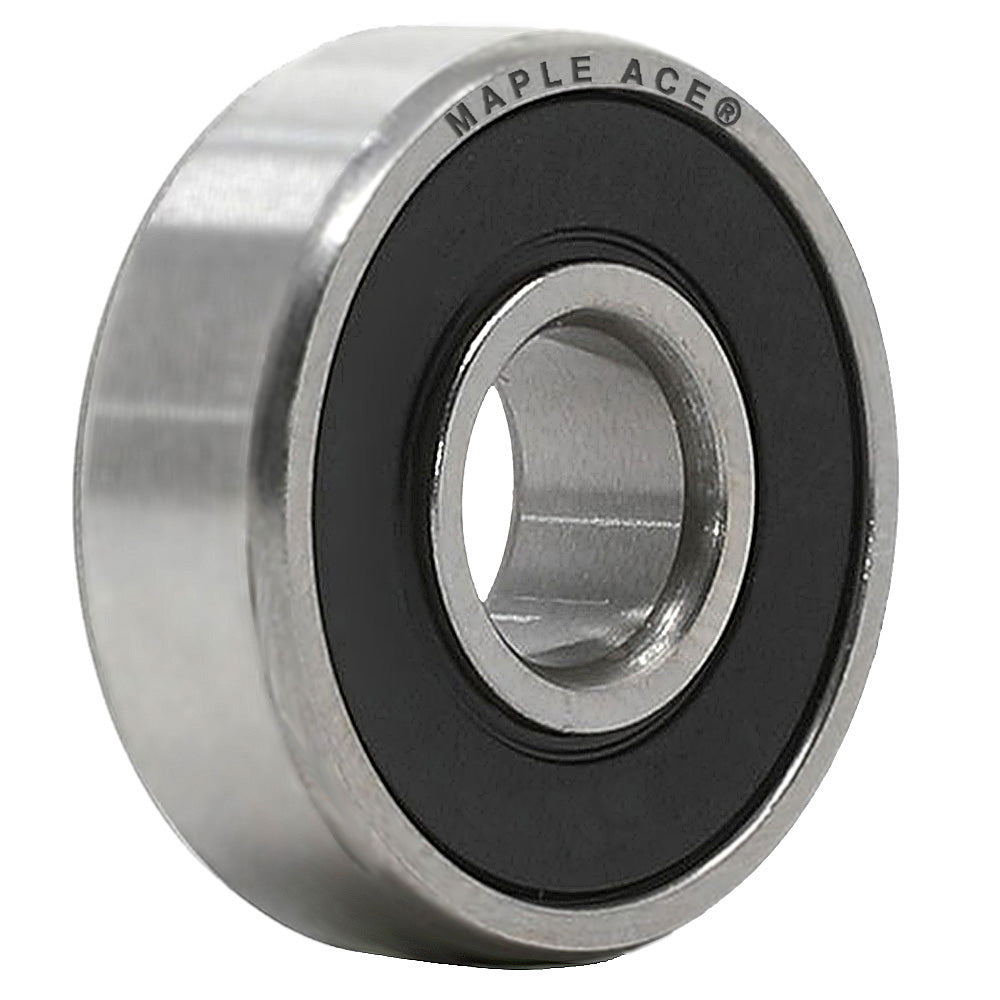

606-2RS Ball Bearing 6x17x6mm 606 2RS Rubber Sealed

606-2RS Ball Bearing 6x17x6mm 606 2RS Rubber Sealed

Name: 606-2RS Ball Bearing 6x17x6mm 606 2RS Rubber Sealed
Brand: MAPLE ACE
Price: 1.80 CAD
Availability: InStock

Disponibilité: En stock

Type de produit: Ball Bearings

Vendeur: MAPLE ACE

Prix régulier $1.80 CAD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

606 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 6mm, Outside Diameter 17mm, Width 6mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
Interchange to 606, 606 RS, 606 RSR, 606 2RSR, 606 RSH, 606 2RSH, 606 2RSJEM, 606 LU, 606 LLU, 606 DU, 606 DDU, 606 2NSL, 606 2NSE, 606 EE
This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
Application: 3D Printer, Bicycle, Hobby and Recreation Bearing, RC Car, Vacuum, Fishing Reel, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
Capable of accommodating both radial and axial loads in both directions.
Easy to mount, requiring less maintenance compared to other bearing types.
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing

Dimensions

Item	606-2RS
Inner Diameter	6 mm
Outside Diameter	17 mm
Width	6 mm
Width Inner Ring	6 mm
Width Outer Ring	6 mm

Performance

Dynamic Load Rating (Cr)	1950
Static Load Rating (Cor)	830
Load Measurement Unit	N
Limiting Speed	48000
Speed Measurement Unit	r/min
Product Weight	6
Weight Unit	GR

Properties

Rolling Element Indicator	Ball
Number of rows	1
Locating feature, outer ring	None
Bore type	Cylindrical
Cage	Sheet metal
Radial internal clearance	CN
Material, bearing	Gcr15
Sealing	Seal on both sides
Sealing type	Contact
Lubrication	Grease
Relubrication feature	Without

FAG	606-2RSR
INA	606-2RSR
Koyo	606-2RS
NACHI	606-2NSE
NSK	606-DDU
NTN	606-LLU
SKF	606-2RS1
SNR	606 EE
TIMKEN	606-2RS

You can use this MINIATURE DEEP GROOVE BALL BEARING as a Replacement Part for:

Automotive

Turbo-machinery Pumps

Industrial

Miniature Motor

Textile

Fuel Control

Flow Meter

Office equipment

Paper-making machine

3D Printer

Medical Handpieces & Instruments

Surgical Devices

Robots, Bicycle

Fishing Reel

Slip Ring

Hobbies

RC Car & Truck

RC Engine

RC Helicopter

Slot Car

YoYo

Fidget Spinner
