UCPA205-16 Tapped Base Pillow Block Bearing 1in Bore, Self-Aligning
UCPA205-16 Tapped Base Pillow Block Bearing 1in Bore, Self-Aligning
UCPA205-16 Tapped Base Pillow Block Bearing 1in Bore, Self-Aligning
UCPA205-16 Tapped Base Pillow Block Bearing 1in Bore, Self-Aligning

UCPA205-16 Tapped Base Pillow Block Bearing 1" Bore, Self-Aligning

: En stock

: Mounted Bearings

: MAPLE ACE

$22.95 CAD

This UCPA PILLOW BLOCK TAPPED BASE MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing The PILLOW BLOCK can be mounted...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

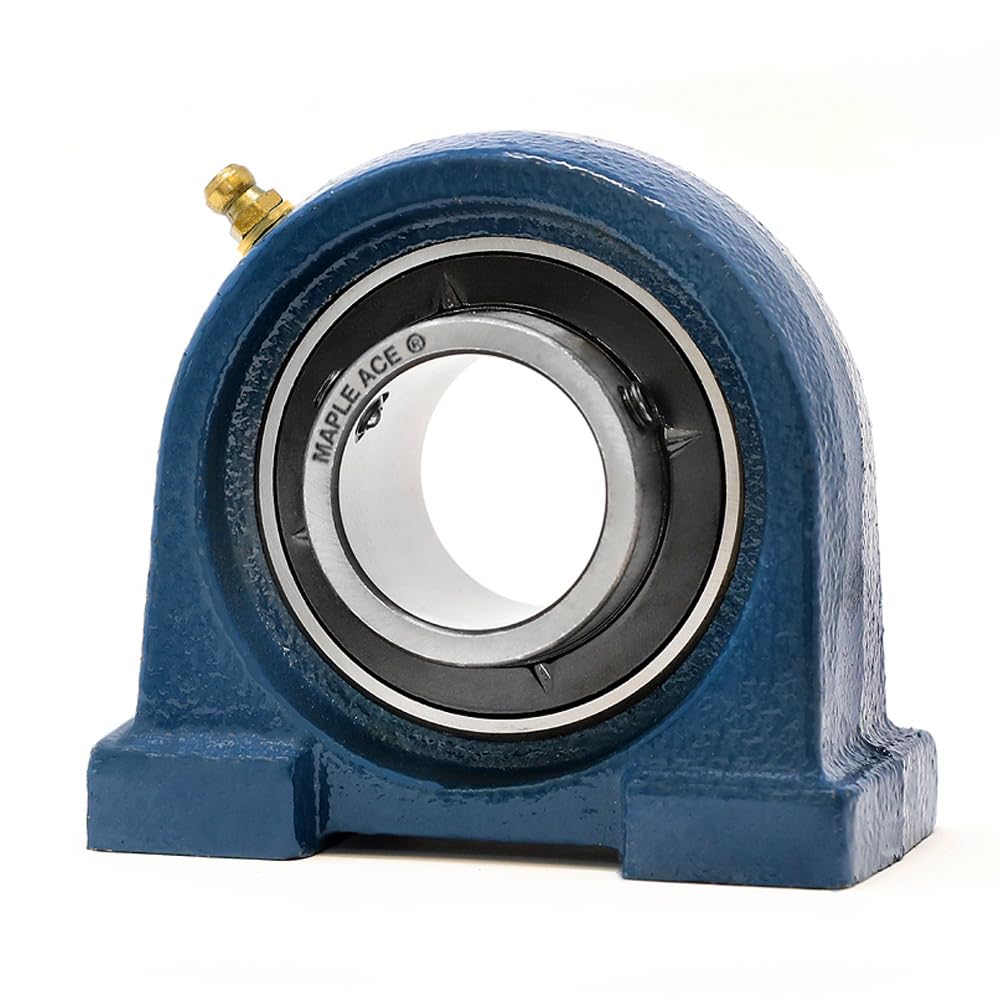

  • This UCPA PILLOW BLOCK TAPPED BASE MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes
  • Grease Fitting Offset on top, to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Has a Set Screw Lock on its surface, for securing the shaft

Item UCPA205-16
Series UCPA200
Bearing Number UC205-16
Housing Number PA205
Bearing Inner Diameter Metric 25.4 mm
Bearing Inner Diameter Inch 1.00 in
Bearing Width Inner Ring Matric 34.00 mm
Bearing Width Inner Ring Inch 1.339 in
Bolt Size 3/8 in
Number of Bolts 2
Bolt Hole Center to Center (e) Matric 56 mm
Bolt Hole Center to Center (e) Inch2.20 in
Overall Length (a) Matric 70 mm
Overall Length (a) Inch 2.756 in
Overall Height (w) Matric 70 mm
Overall Height (w) Inch 2.756 in
Overall Width (b) Matric 36 mm
Overall Width (b) Inch 1.417 in
Mounting Surface to Shaft Center (h) Matric 36.5 mm
Mounting Surface to Shaft Center (h) Inch 1.433 in
Dynamic Load Rating Cr 9560 N
Static Load Rating Cor 4750 N
Limiting Speed 9500 r/min
Clearance Normal
Bearing Sealing type Contact, standard
Lubrication Type Grease Shell RL2
Lubrication Temperature -20°C to +160°C
Rolling Element Indicator Ball
Bearing Material Gcr15
Housing Material H200 Cast Iron
Locking Type Set Screws
Weight 0.660 KG
Koyo UCPA205-16 G
NACHI UCPA205-16 G
RHP SNP1
NTN UCUP205-100D1
SKF SYF 1. TF
SNR UCPA205-16 G
TIMKEN UCPA205-16 G

You can use this PILLOW BLOCK BALL BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
