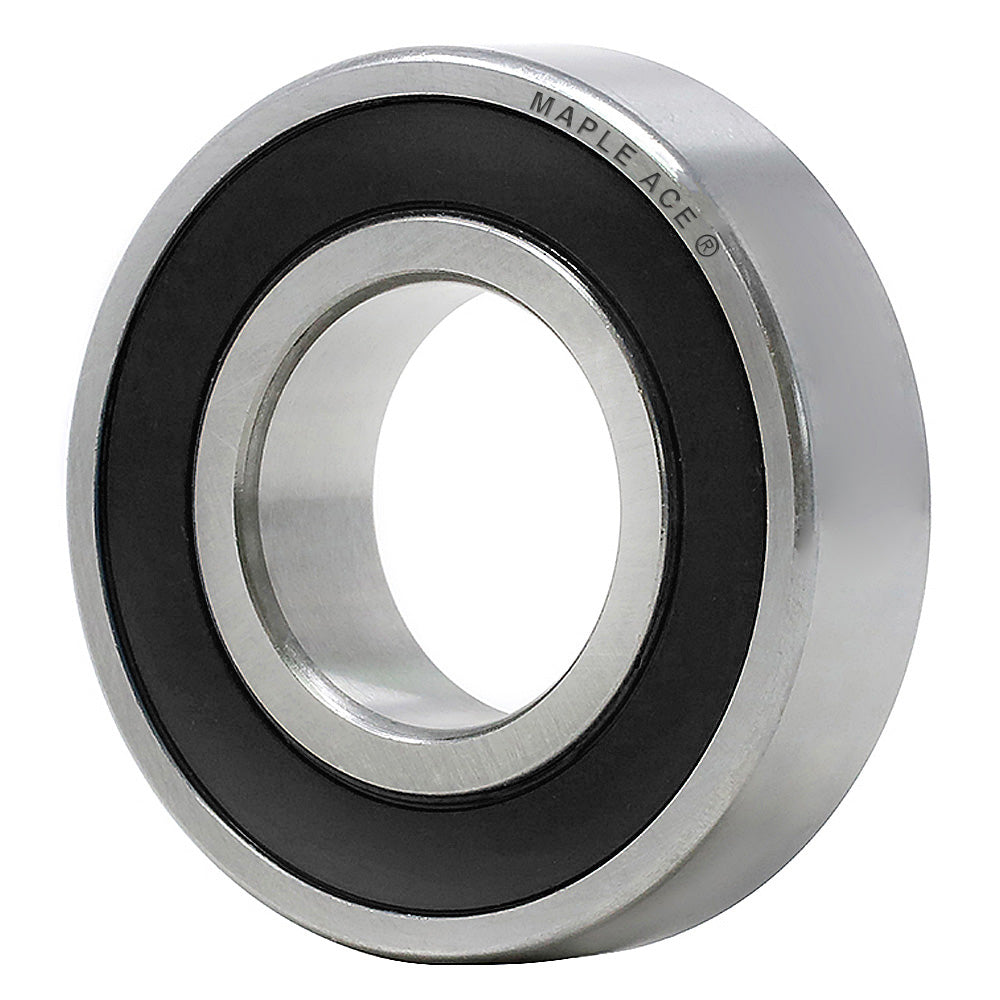

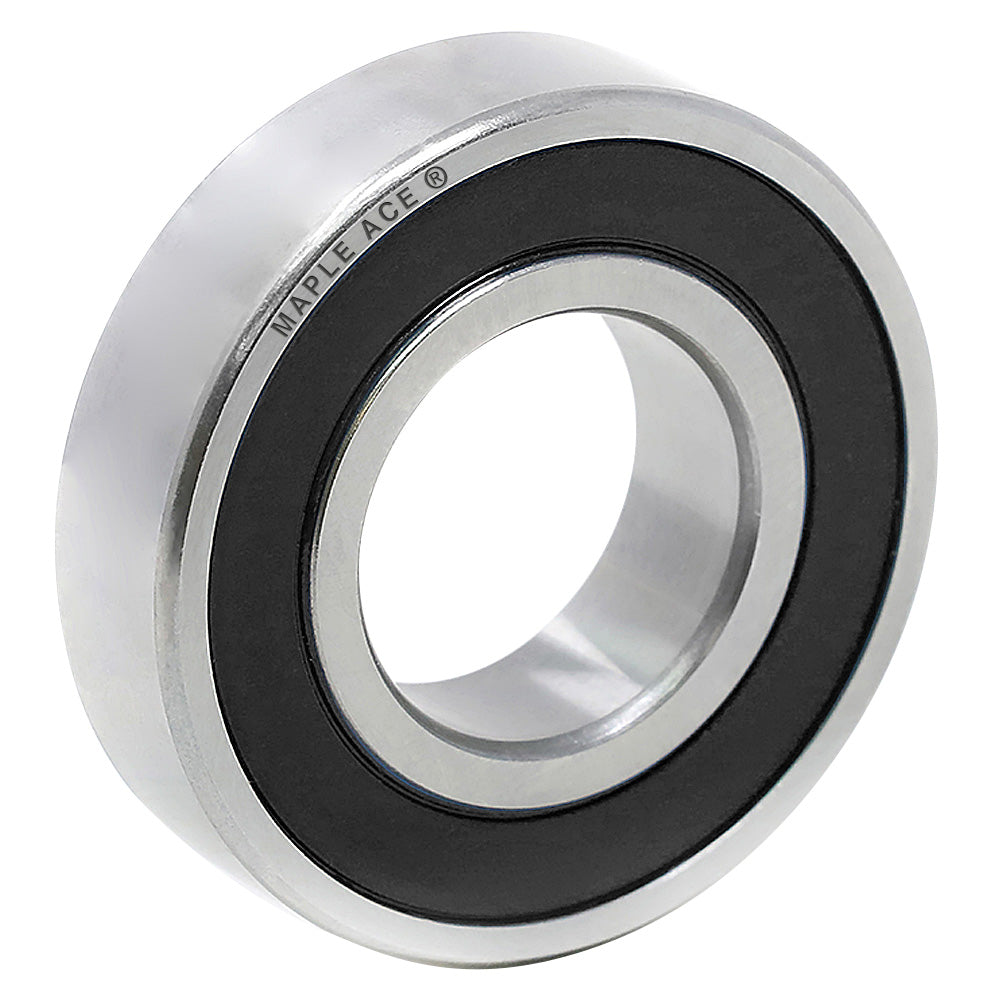

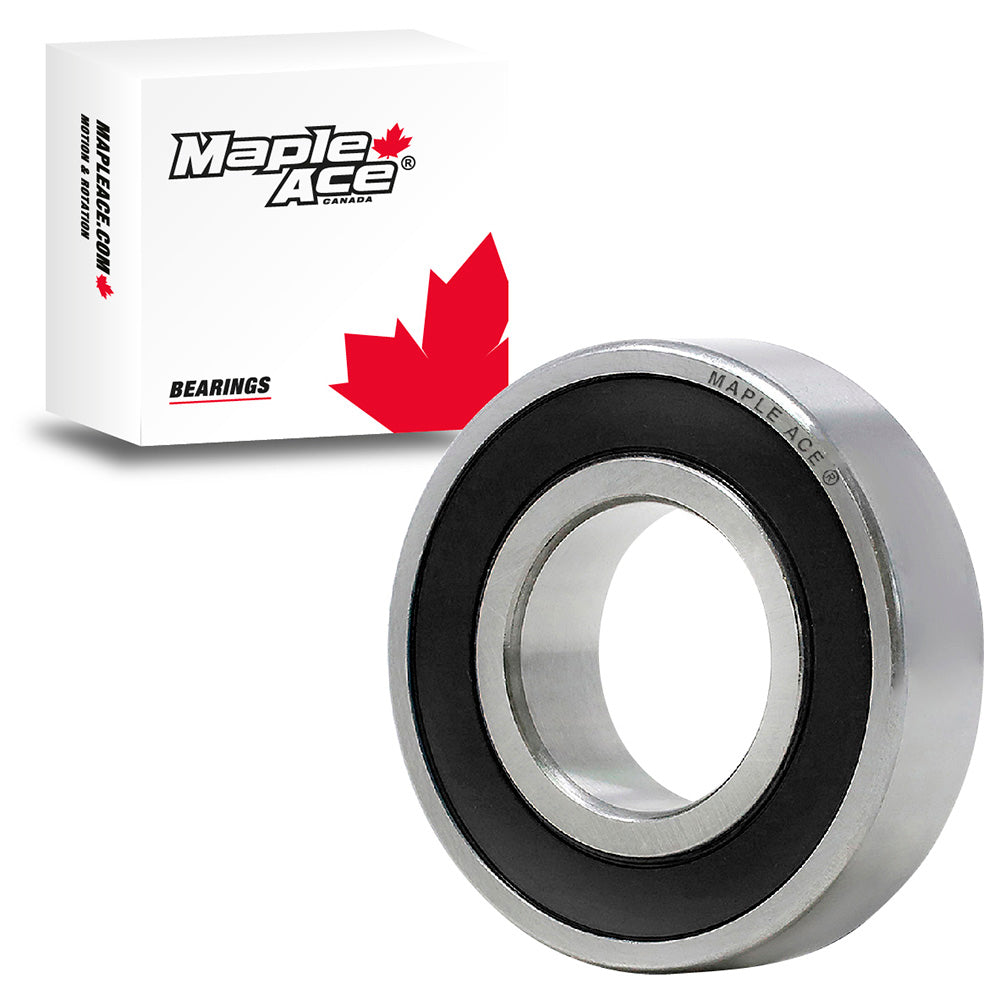

6209-2RS C3 Ball Bearing 45x85x19mm 6209 2RS Rubber Sealed

: En stock

: Ball Bearings

: MAPLE ACE

Prix régulier $14.95 CAD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

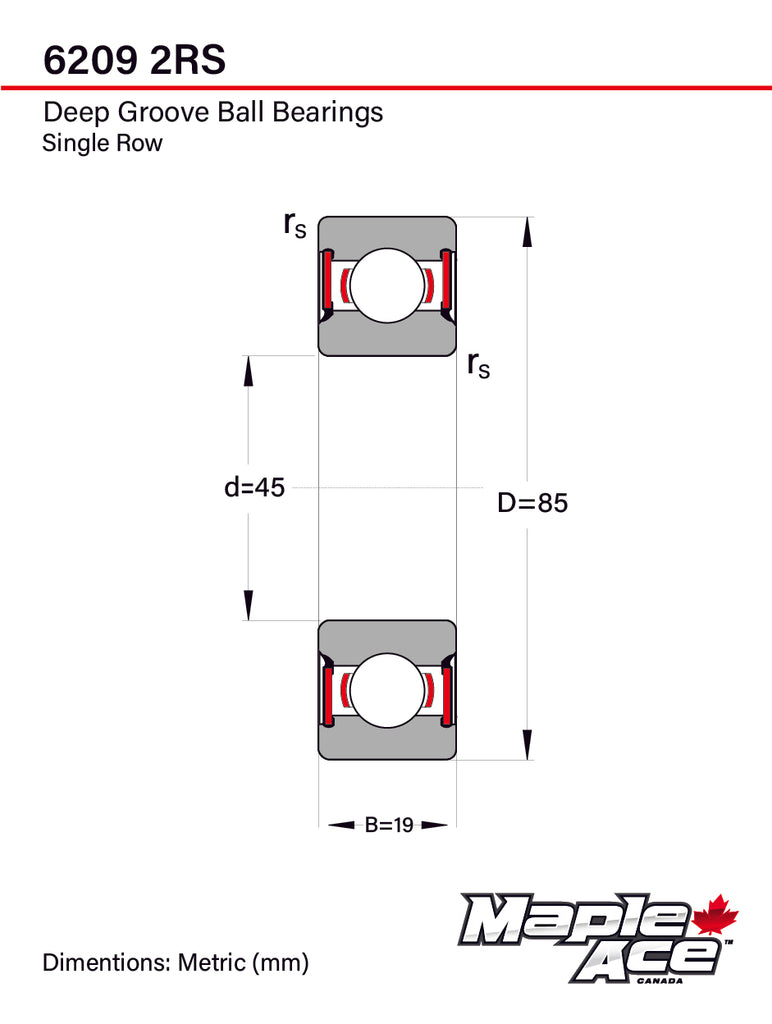

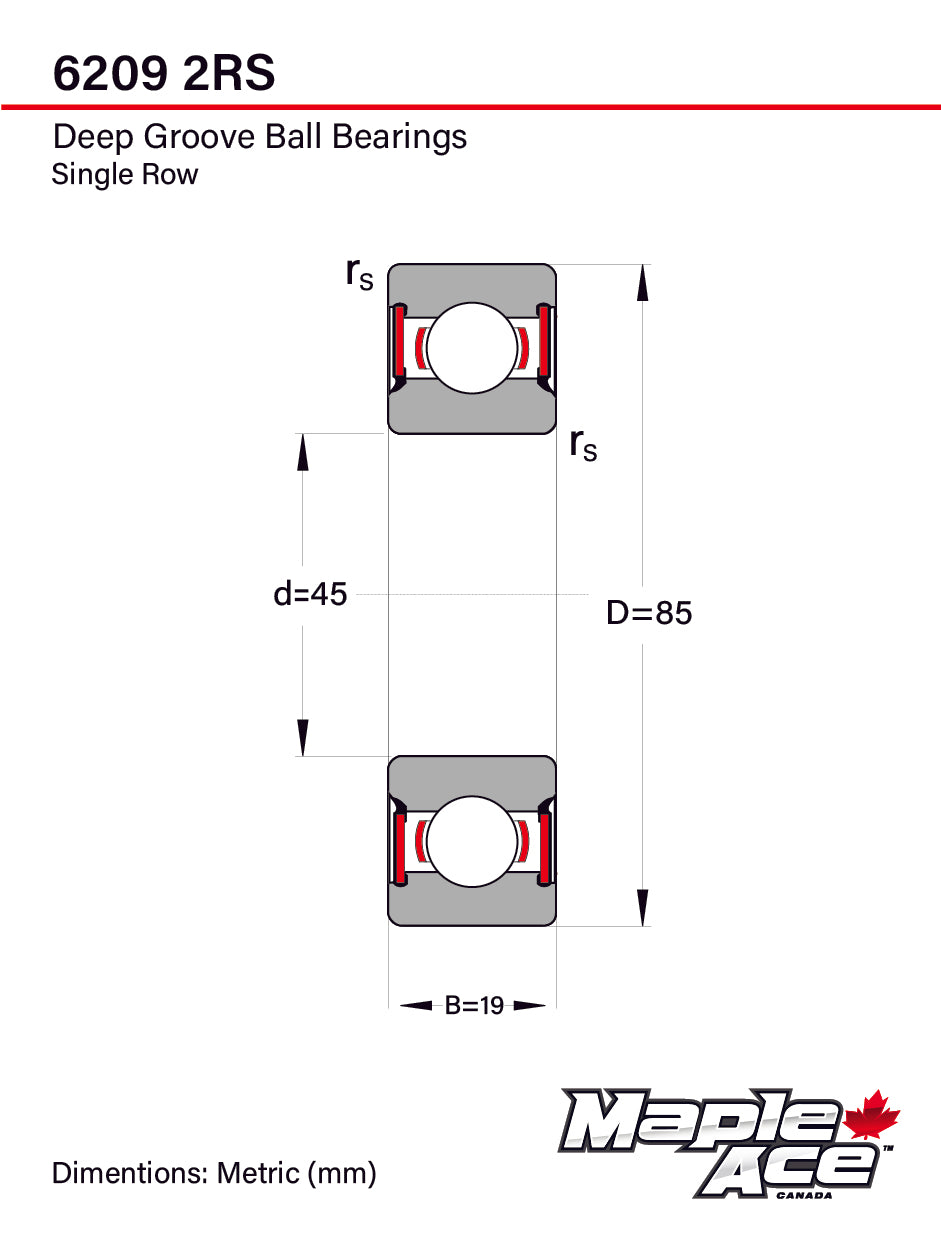

  • 6209 2RS C3 Deep Groove Ball Bearing dimensions: Bore Diameter 45mm, Outside Diameter 85mm, Width 19mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 6209, 6209 RS, 6209 RSR, 6209 2RSR, 6209 RS1, 6209 2RS1, 6209 2RSJEM, 6209 LU, 6209 LLU, 6209 DU, 6209 DDU, 6209 2NSL, 6209 2NSE, 6209 EE
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: ATVs, Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item 6209-2RS C3
Bearing Type Deep groove ball bearing
Bore Diameter 45.00mm
Outside Diameter 85.00mm
Width 19.00mm
Width Inner Ring 19.00mm
Width Outer Ring 19.00mm
Dynamic Load Rating Cr 35100 N
Static Load Rating Cor 21600 N
Limiting Speed 5000 r/min
Clearance C3
Tolerance Classes P5
Cage Metal
Closures Seal on both sides
Lubrication Type Grease Chevron
Lubrication Temperature -30°C to +180°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 0.430 KG
FAG 6209-2RSR
FEDERAL-MOGUL 209-FF
INA 6209-2RSR
Koyo 6209 2RS
NACHI 6209-2NSE
NSK 6209 DDU, 6209 VV
NTN 6209 LLU
SKF 6209-2RS1
SNR 6209.EE
TIMKEN 6209-2RS

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Wheel Bearing
  • Automotive
  • ATV
  • Marine
  • Appliances
  • Sporting Machines
  • Industrial Applications
  • Electric Motor
  • HVAC
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
