51211 Thrust Ball Bearing 55x90x25mm
51211 Thrust Ball Bearing 55x90x25mm
51211 Thrust Ball Bearing 55x90x25mm
51211 Thrust Ball Bearing 55x90x25mm

51211 Thrust Ball Bearing 55x90x25mm

: In stock

: Ball Bearings

: MAPLE ACE

$44.29 CAD

  • 51211 Thrust Ball Bearing dimensions: Bore Diameter 55mm, Outside Diameter 90mm, Width 25mm. 100% Chrome Steel.
  • Interchange to 51211A, 51211X

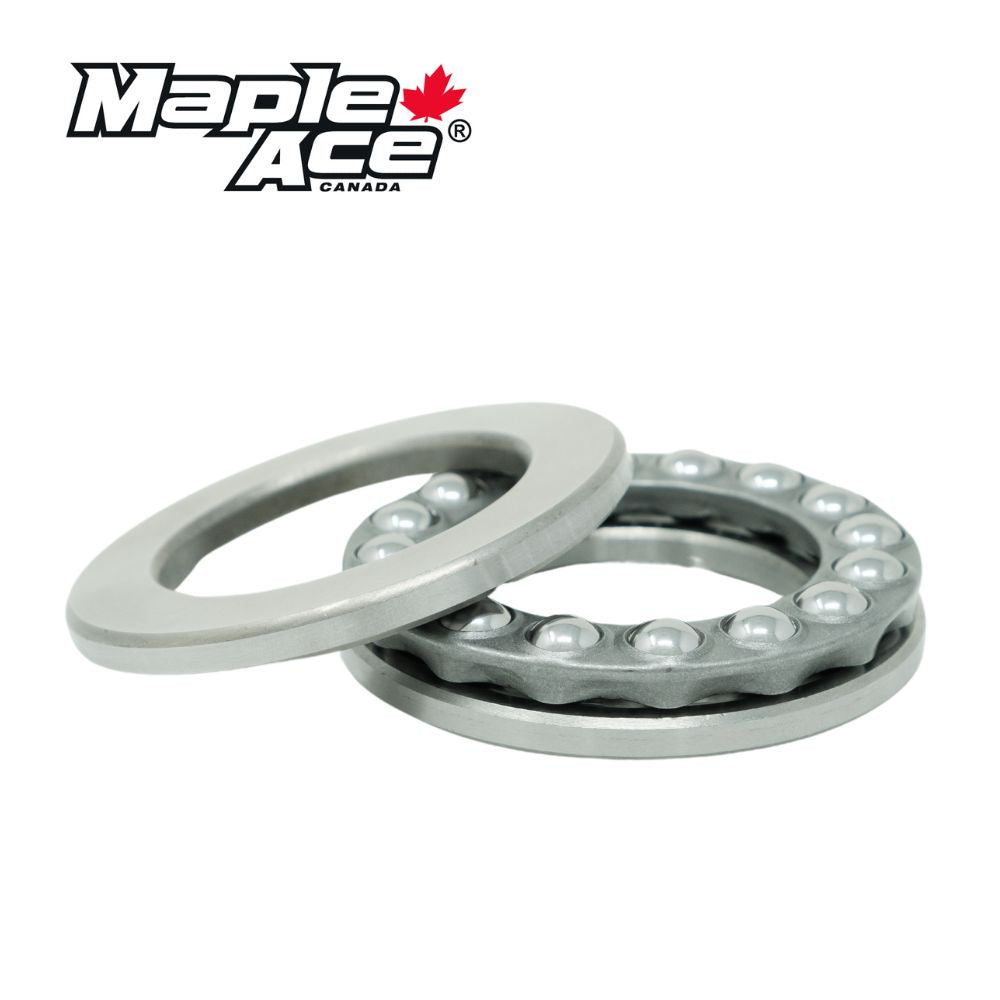

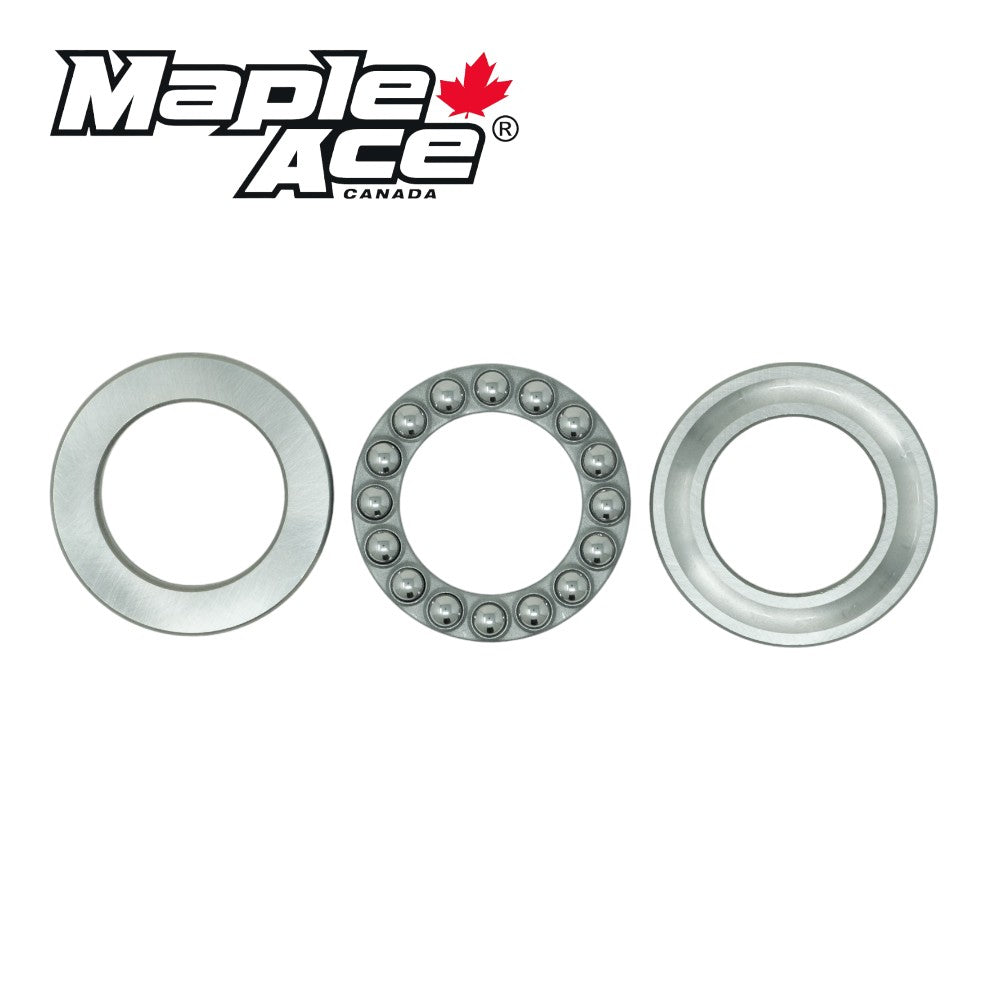

  • This Thrust Ball Bearing has two flat washers (raceways) and a ball set positioned between them. One washer is known as the shaft washer (connected to the shaft), and the other is the housing washer (connected to the housing).
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single direction thrust ball bearings designed to accommodate axial loads in one direction only.
  • Must not be subjected to radial loads.
  • Key features:
    • Separable design allows for easy mounting, dismounting, and maintenance inspections.
    • Interchangeable components enhance versatility and ease of replacement.
    • Ground bore on shaft washers enables an interference fit for secure positioning.

Item51211
Bore Diameter55.00 mm
Outside Diameter90.00 mm
Width, Total25.00 mm
Width, Inner Ring25.00 mm
Width, Outer Ring25.00 mm
Basic Dynamic Load Rating (Cr)58.5 kN
Basic Static Load Rating (C₀r)134 kN
Limiting Speed4,000 r/min
Rolling ElementBall
Number of Rows1
Locating Feature (Outer Ring)Without
Bore TypeCylindrical
Cage MaterialSheet metal
Radial Internal Clearance—
Tolerance ClassP6
Bearing MaterialGCr15
SealingWithout
Sealing Type—
LubricationNone
Relubrication FeatureWithout
Product Weight0.57 kg
FAG51211
Koyo51211
NACHI 51211
NSK51211
NTN51211
SKF51211
SNR51211
TIMKEN51211

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
