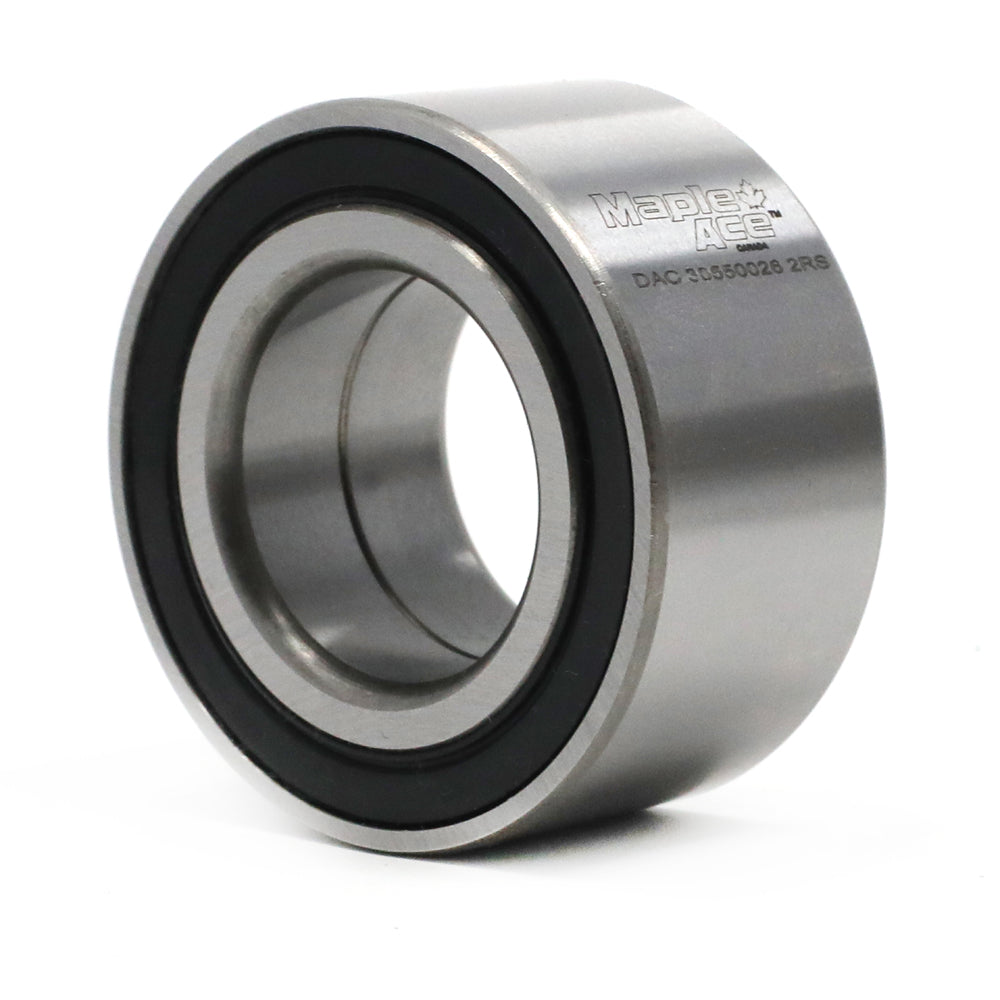

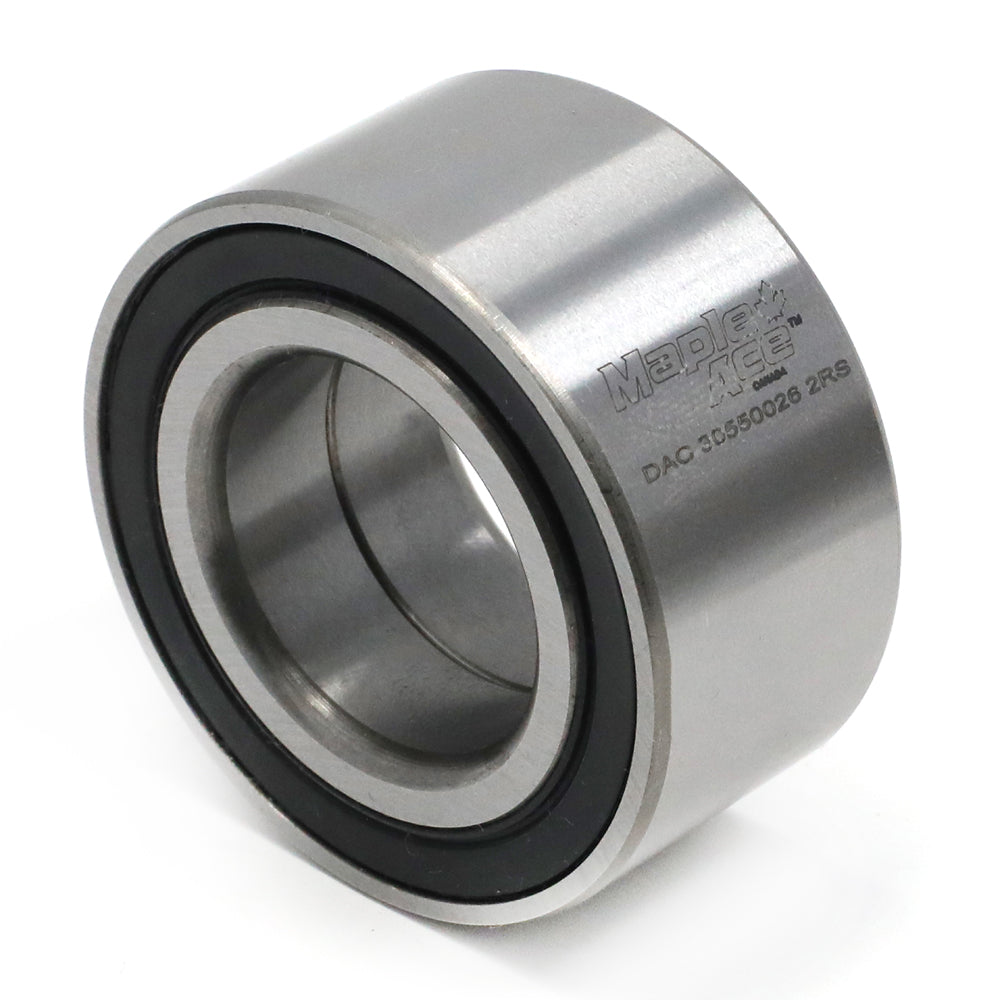

92045-1222 Fnt Whl Brg Prairie 360 03-13 Brute Force 650/750 05-25 TP 04-06
92045-1222 Fnt Whl Brg Prairie 360 03-13 Brute Force 650/750 05-25 TP 04-06
92045-1222 Fnt Whl Brg Prairie 360 03-13 Brute Force 650/750 05-25 TP 04-06

92045-1222 Fnt Whl Brg Prairie 360 03-13 Brute Force 650/750 05-25 TP 04-06

: In stock

: Powersports

: MAPLE ACE

$16.95 CAD

  • DAC30550026 Wheel Bearing Dimensions: ID: 30.00 mm (1.1811 in); OD: 55.00 mm (2.1654 in); Width: 26.00 mm (1.0236 in)
  • Low-maintenance Angular bearing contact design for problem-free operation; Supports both radial and axial loads for long-term durability
  • Interchange Part Numbers: DAC305526, DAC3055CRK, DAC3055C2RKCD3, 30BWD08, 20-1015-2RS, 25-1497, 25-1502
  • OEM Reference Numbers: 92045-1222, 92045-0095, 92045-1395, 92045-1448, K9204-51448
  • Precision-manufactured for reliable fit and long service life; Designed to meet OEM performance standards; Professional installation recommended

Description

  • Manufactured with High-Quality Internal bearing seals that are specifically designed to withstand all types of road conditions, to keep dirt out and keep the bearing rolling
  • The cages for the two ball rows are made from glass fibre reinforced polyamide
  • Greased and sealed for life
  • Easy-to-install and pre-adjusted wheel bearing

Item  DAC30550026-2RS
Inner Diameter Metric  30.00 mm
Inner Diameter Inch  1.1811 in
Outside Diameter Matric  55.00 mm
Outside Diameter Inch  2.1653 in
Width Inner Ring Matric  26.00 mm
Width Inner Ring Inch  1.0236 in
Width Outer Ring Matric  26.00 mm
Width Outer Ring Inch  1.0236 in
Closures Two Rubber Seals (2RS)
Includes ABS  No
Lubrication Type  Grease Shell Gadus S2
Material  Gcr15
Rolling Element Indicator  Ball
Series  Wheel Bearing
Design  Double Row Angular Contact
Generation  G1
Product Weight  0.230 KG
All Balls 25-1497, 25-1502
TypeMakeModelYearPosition
ATVKawasakiKVF360A Prairie 4x42003-2013Front
ATVKawasakiKVF360B Prairie2003-2011Front
ATVKawasakiKVF360C Prairie 4x42003-2013Front
ATVKawasakiKVF650 Brute Force2005-2013Front
ATVKawasakiKVF650 I Brute Force2006-2013Front
ATVKawasakiKVF650 Prairie2002-2003Front
ATVKawasakiKVF700 Prairie2004-2006Front
ATVKawasakiKVF700 Prairie SE2005-2006Front
ATVKawasakiKVF750 Brute Force2005-2021Front
ATVKawasakiKVF750 Brute Force Camo2005-2010Front
ATVKawasakiKVF750 Brute Force EPS2012-2025Front
ATVKawasakiKVF750 Brute Force EPS Camo2012-2020Front
ATVKawasakiKLF300C Bayou 4x41989-2005Front
ATVKawasakiKLF400 Bayou1993-1999Front
ATVKawasakiKVF300A Prairie 4x41999-2002Front
ATVKawasakiKVF300B Prairie 2x41999-2002Front
ATVKawasakiKVF400A Prairie 4x41997-1998Front
ATVKawasakiKVF400B Prairie1998Front
ATVKawasakiKVF400C Prairie 4x41999-2002Front
ATVKawasakiKVF400D Prairie1999-2002Front
Kawasaki 92045-1222, 92045-0095, 92045-1395, 92045-1448
Suzuki K9204-51448
