W3/8 Thrust Ball Bearing 3/8inx1inx17/32in
W3/8 Thrust Ball Bearing 3/8inx1inx17/32in
W3/8 Thrust Ball Bearing 3/8inx1inx17/32in
W3/8 Thrust Ball Bearing 3/8inx1inx17/32in
W3/8 Thrust Ball Bearing 3/8inx1inx17/32in
W3/8 Thrust Ball Bearing 3/8inx1inx17/32in

W3/8 Thrust Ball Bearing 3/8"x1"x17/32"

: In stock

: Ball Bearings

: MAPLE ACE

$12.95 CAD

Single direction thrust ball bearings designed to accommodate axial loads in one direction only. Must not be subjected to radial loads. Key...

  • W3/8 Thrust Ball Bearing dimensions: Bore Diameter 3/8 in, Outside Diameter 1.00 in, Width 17/32 in. 100% Chrome Steel.

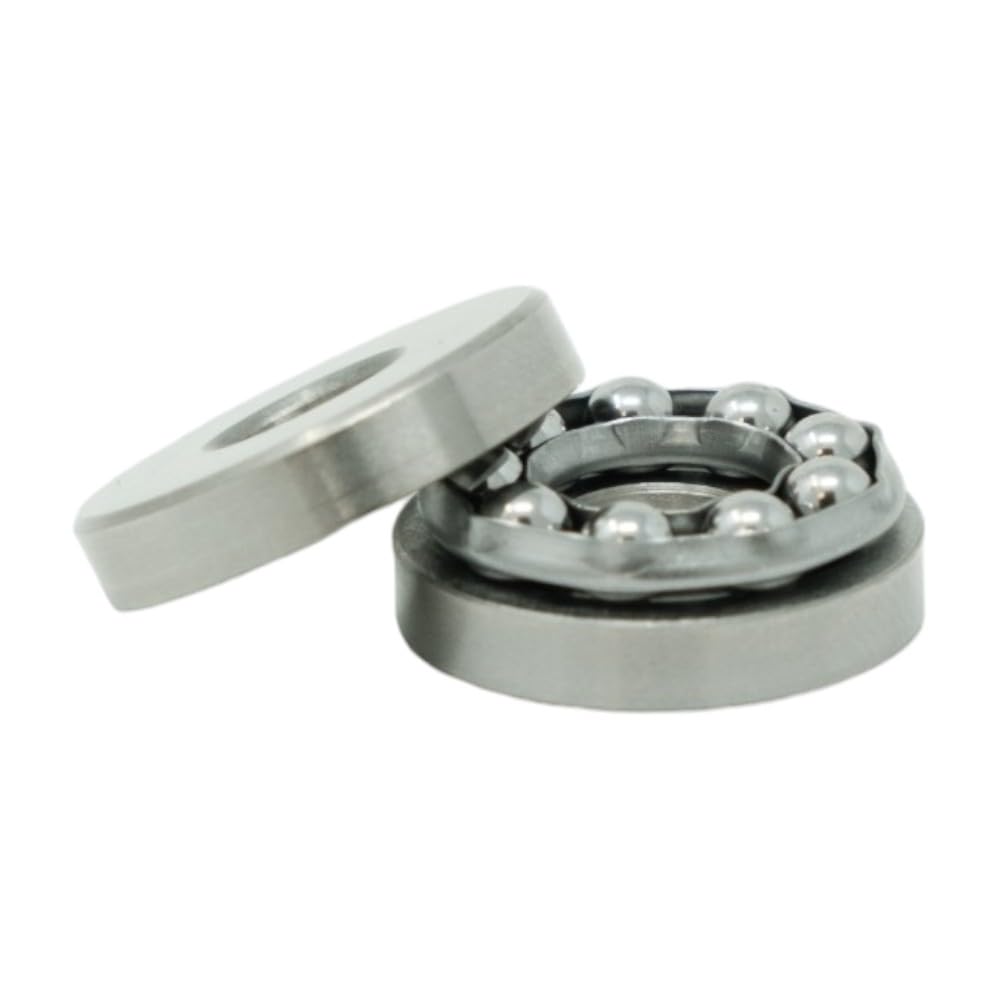

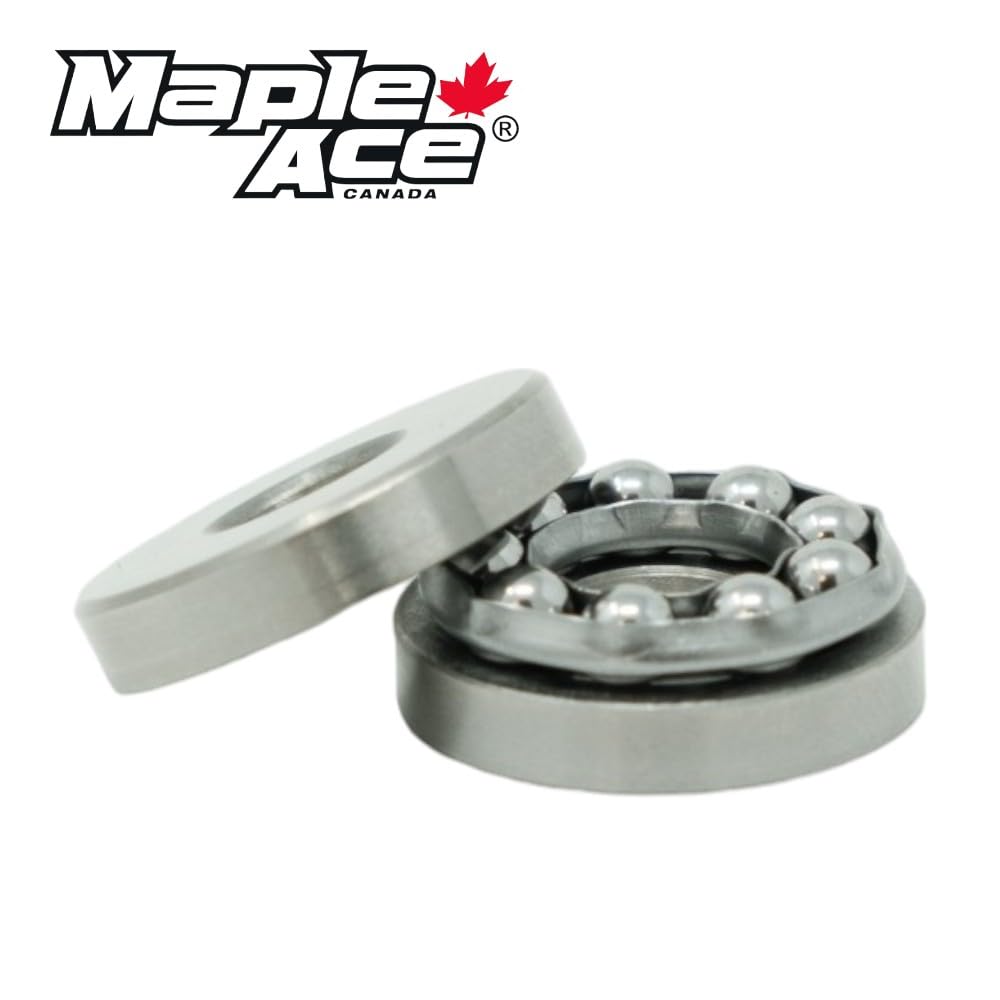

  • This Thrust Ball Bearing has two flat washers (raceways) and a ball set positioned between them. One washer is known as the shaft washer (connected to the shaft), and the other is the housing washer (connected to the housing).
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single direction thrust ball bearings designed to accommodate axial loads in one direction only.
  • Must not be subjected to radial loads.
  • Key features:
    • Separable design allows for easy mounting, dismounting, and maintenance inspections.
    • Interchangeable components enhance versatility and ease of replacement.
    • Ground bore on shaft washers enables an interference fit for secure positioning.

Item  W3/8
Bearing Type  Thrust ball bearing
Bore Diameter  0.375 in
Outside Diameter  1.00 in
Width  0.531 in
Dynamic Load Rating Cr  7650 N
Static Load Rating Cor  10000 N
Limiting Speed  8800 r/min
Number of rows  1
Tolerance Classes  Normal
Cage  Bronze
Rolling Element Indicator  Ball
Material  Gcr15
Product Weight  36 Gram
W3/8

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
W3/8 Thrust Ball Bearing 3/8inx1inx17/32in

W3/8 Thrust Ball Bearing 3/8"x1"x17/32"

$12.95
