F8-16M Thrust Ball Bearing 8x16x5mm

Availability: In stock

Product type: Ball Bearings

Regular price $3.39 CAD

Single direction thrust ball bearings designed to accommodate axial loads in one direction only. Must not be subjected to radial loads. Key...

F8-16M Thrust Ball Bearing dimensions: Bore Diameter 8mm, Outside Diameter 16mm, Width 5mm. 100% Chrome Steel.
Interchange to F8-16G(X), F8-16M, F8-16, F-8-16G, F8 16

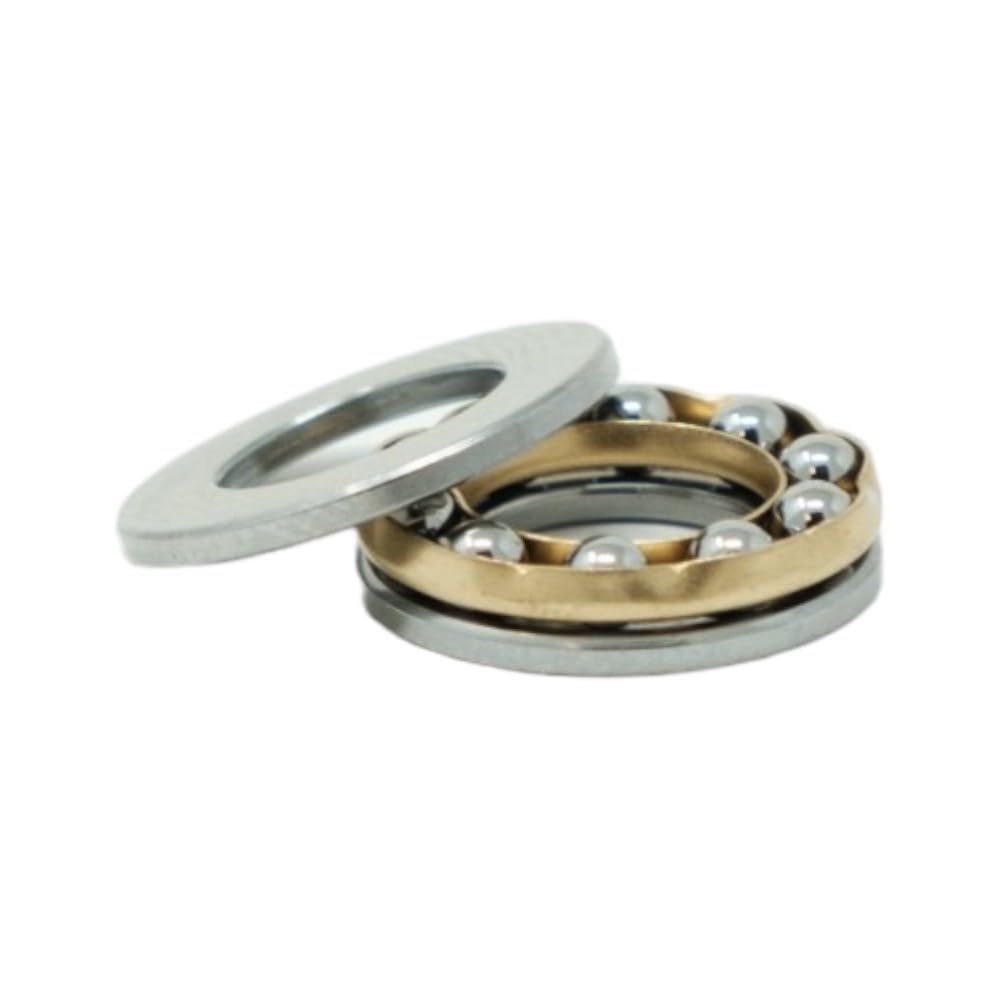

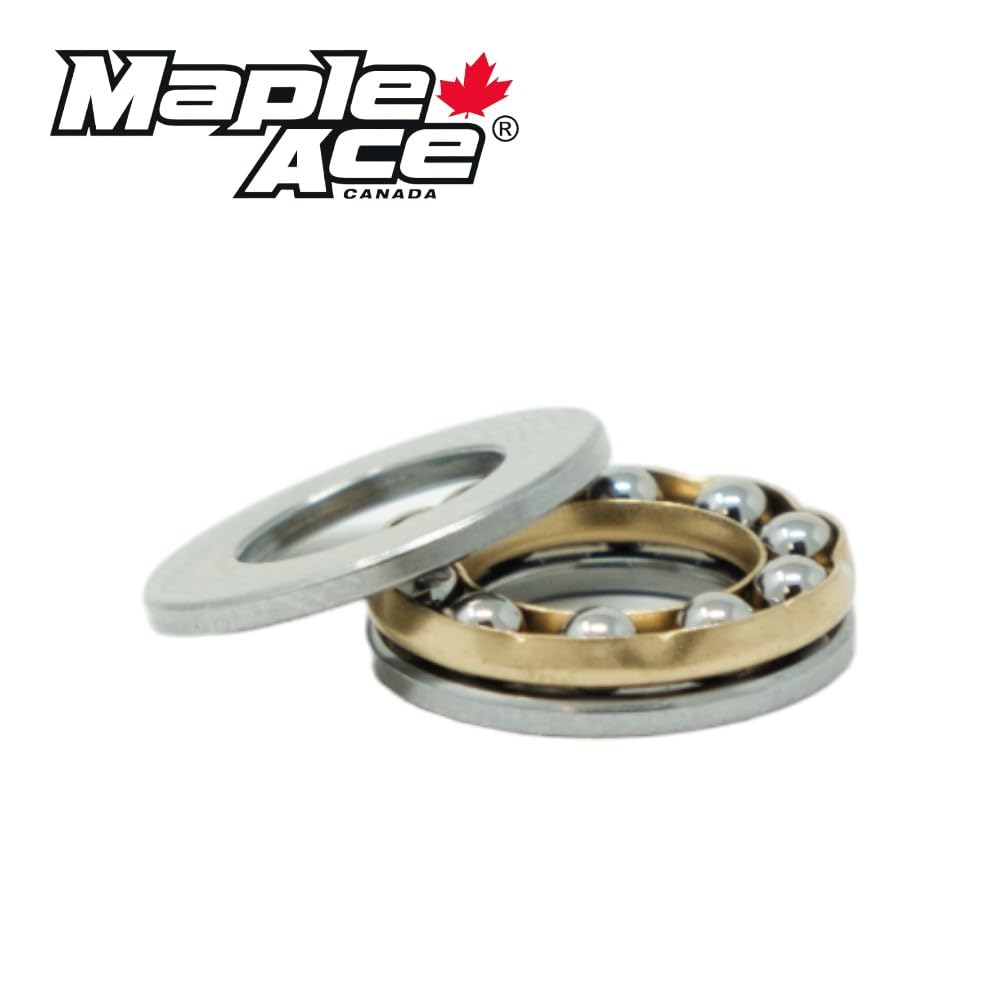

This Thrust Ball Bearing has two flat washers (raceways) and a ball set positioned between them. One washer is known as the shaft washer (connected to the shaft), and the other is the housing washer (connected to the housing).
Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Single direction thrust ball bearings designed to accommodate axial loads in one direction only.
Must not be subjected to radial loads.
Key features:
- Separable design allows for easy mounting, dismounting, and maintenance inspections.
- Interchangeable components enhance versatility and ease of replacement.
- Ground bore on shaft washers enables an interference fit for secure positioning.

Item	F8-16M
Bearing Type	Thrust ball bearing
Bore Diameter	8.00mm
Outside Diameter	16.00mm
Width	5.00mm
Inner diameter housing washer	8.2mm
Outside diameter shaft washer	15.8
Dynamic Load Rating Cr	2500 N
Static Load Rating Cor	3000 N
Limiting Speed	4000 r/min
Number of rows	1
Tolerance Classes	Normal
Cage	Bronze
Rolling Element Indicator	Ball
Material	Gcr15
Product Weight	0.0045 KG
