F10-18M Thrust Ball Bearing 10x18x5.5mm

Availability: In stock

Product type: Ball Bearings

Regular price $3.39 CAD

Single direction thrust ball bearings designed to accommodate axial loads in one direction only. Must not be subjected to radial loads. Key...

F10-18M Thrust Ball Bearing dimensions: Bore Diameter 10mm, Outside Diameter 18mm, Width 5.5mm. 100% Chrome Steel.
Interchange to F10-18G, F10-18G(X), F10-18M, F10-18, F-10-18G, F10 18G

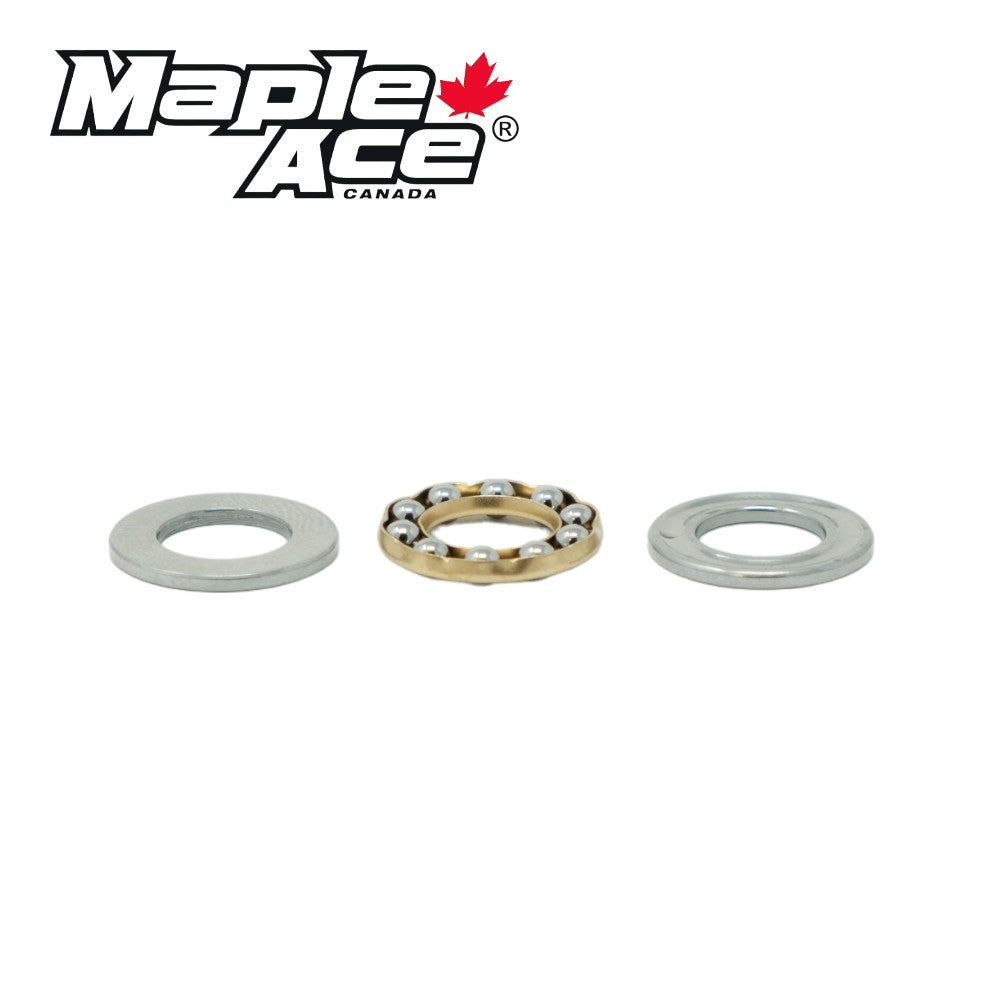

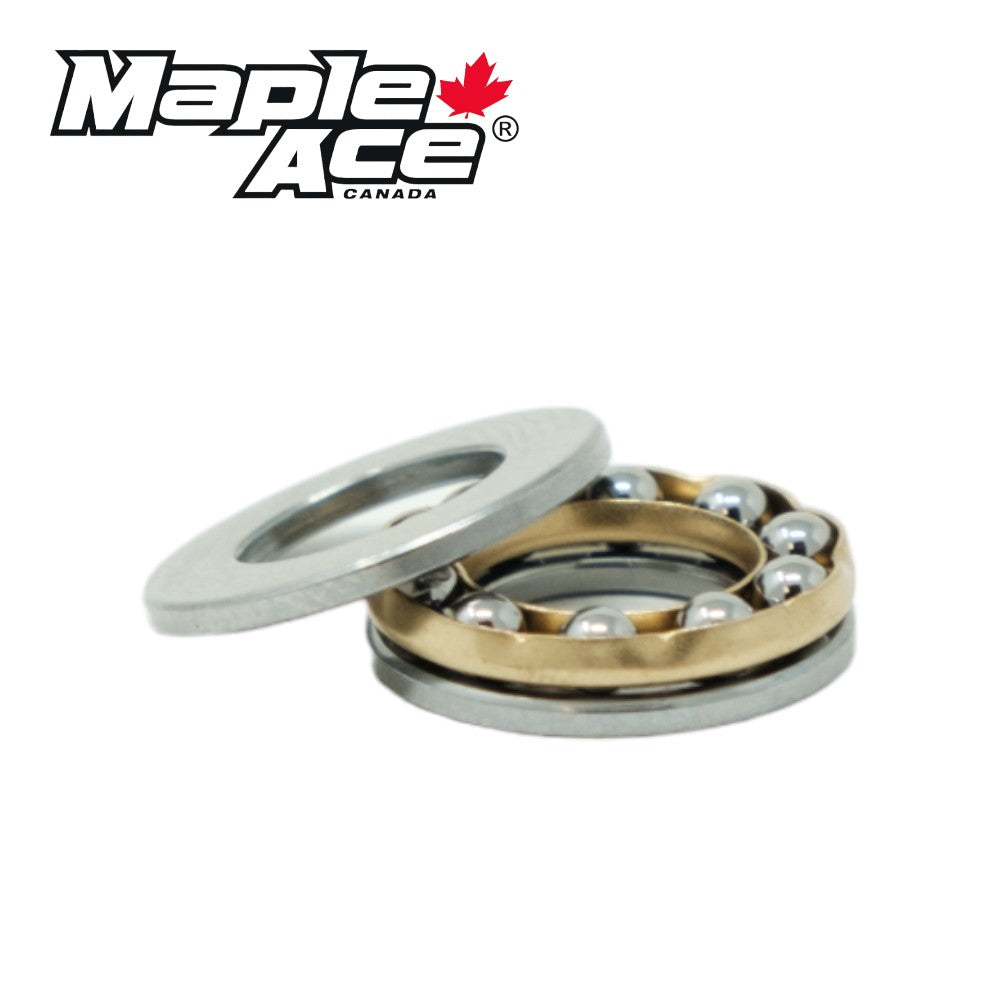

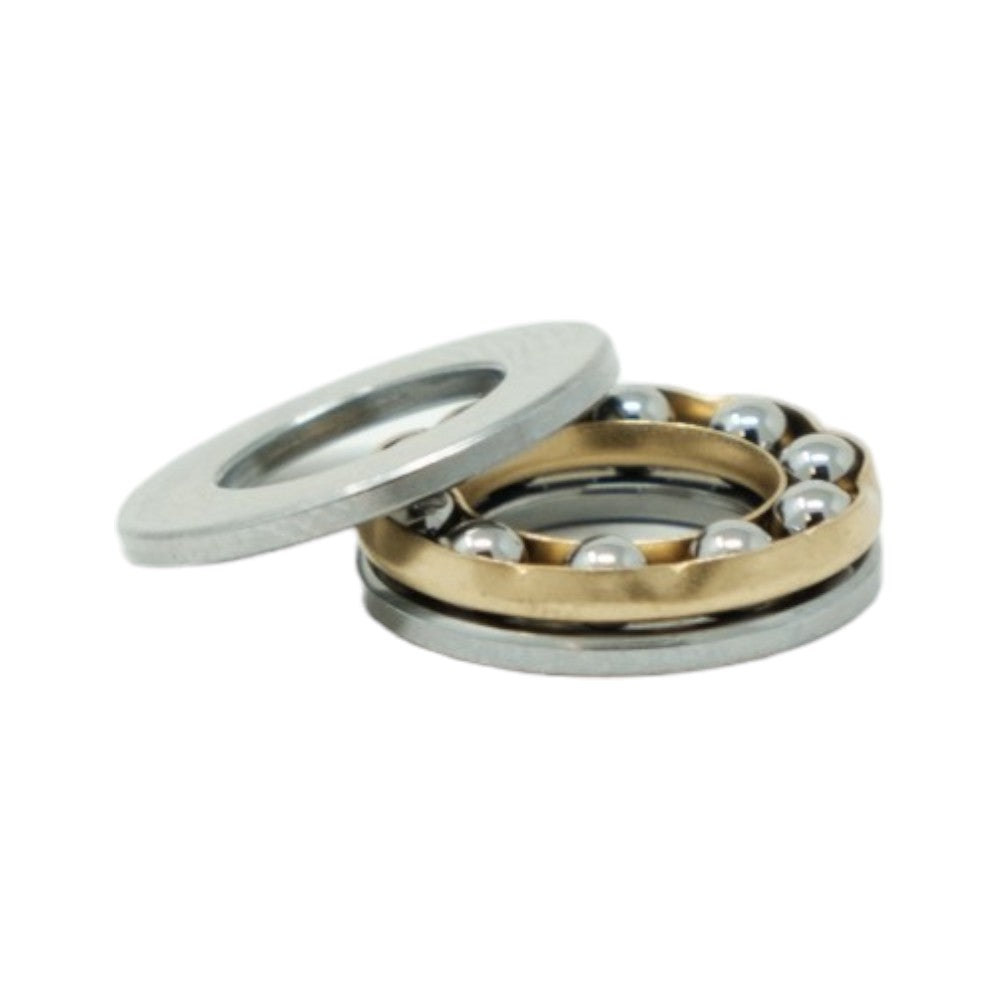

This Thrust Ball Bearing has two flat washers (raceways) and a ball set positioned between them. One washer is known as the shaft washer (connected to the shaft), and the other is the housing washer (connected to the housing).
Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Single direction thrust ball bearings designed to accommodate axial loads in one direction only.
Must not be subjected to radial loads.
Key features:
- Separable design allows for easy mounting, dismounting, and maintenance inspections.
- Interchangeable components enhance versatility and ease of replacement.
- Ground bore on shaft washers enables an interference fit for secure positioning.

Item	F10-18M
Bearing Type	Thrust ball bearing
Bore Diameter	10.00mm
Outside Diameter	18.00mm
Width	5.50mm
Inner diameter housing washer	10.2mm
Outside diameter shaft washer	17.8mm
Dynamic Load Rating Cr	2230 N
Static Load Rating Cor	2721 N
Limiting Speed	2500 r/min
Number of rows	1
Tolerance Classes	Normal
Cage	Bronze
Rolling Element Indicator	Ball
Material	Gcr15
Product Weight	0.0054 KG
