UCF204-12 Flange Bearing 3/4in Bore, 4-Bolt Self-Aligning, Solid Base
UCF204-12 Flange Bearing 3/4in Bore, 4-Bolt Self-Aligning, Solid Base
UCF204-12 Flange Bearing 3/4in Bore, 4-Bolt Self-Aligning, Solid Base
UCF204-12 Flange Bearing 3/4in Bore, 4-Bolt Self-Aligning, Solid Base

UCF204-12 Flange Bearing 3/4" Bore, 4-Bolt Self-Aligning, Solid Base

: In stock

: Mounted Bearings

: MAPLE ACE

$16.20 CAD

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

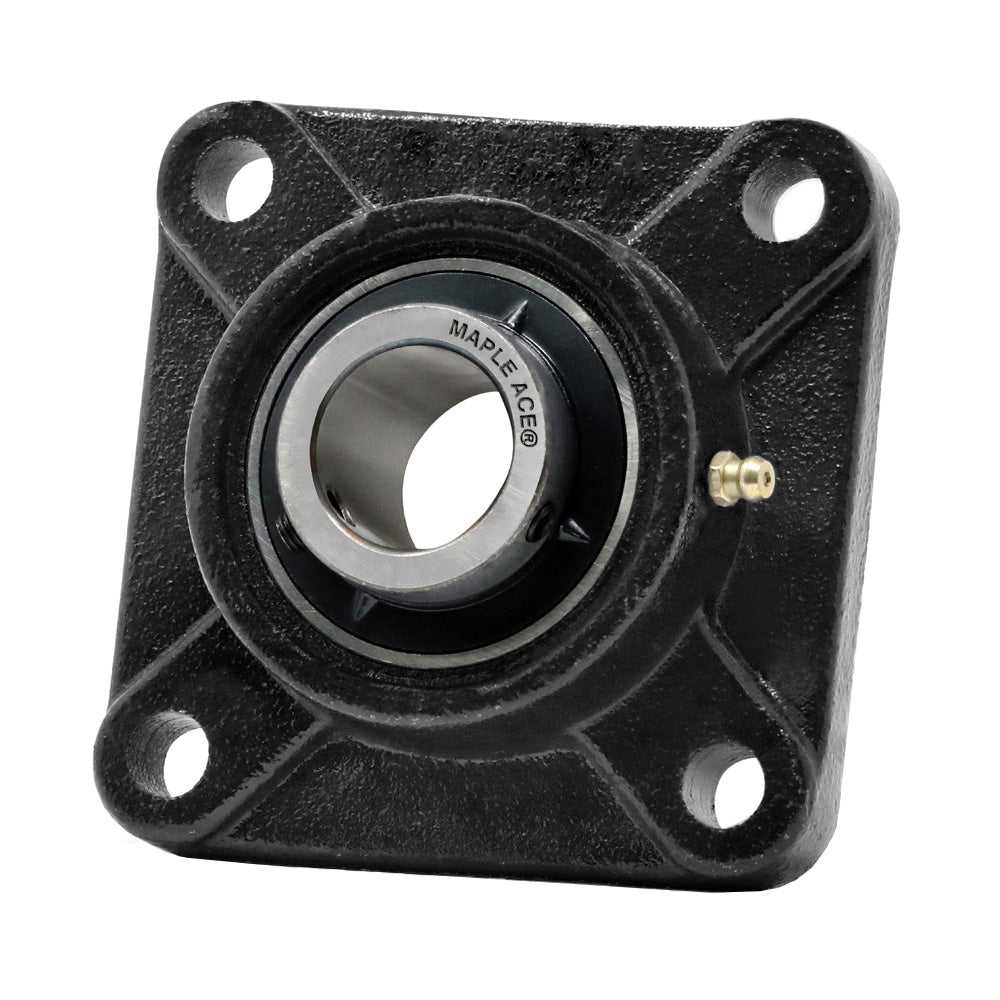

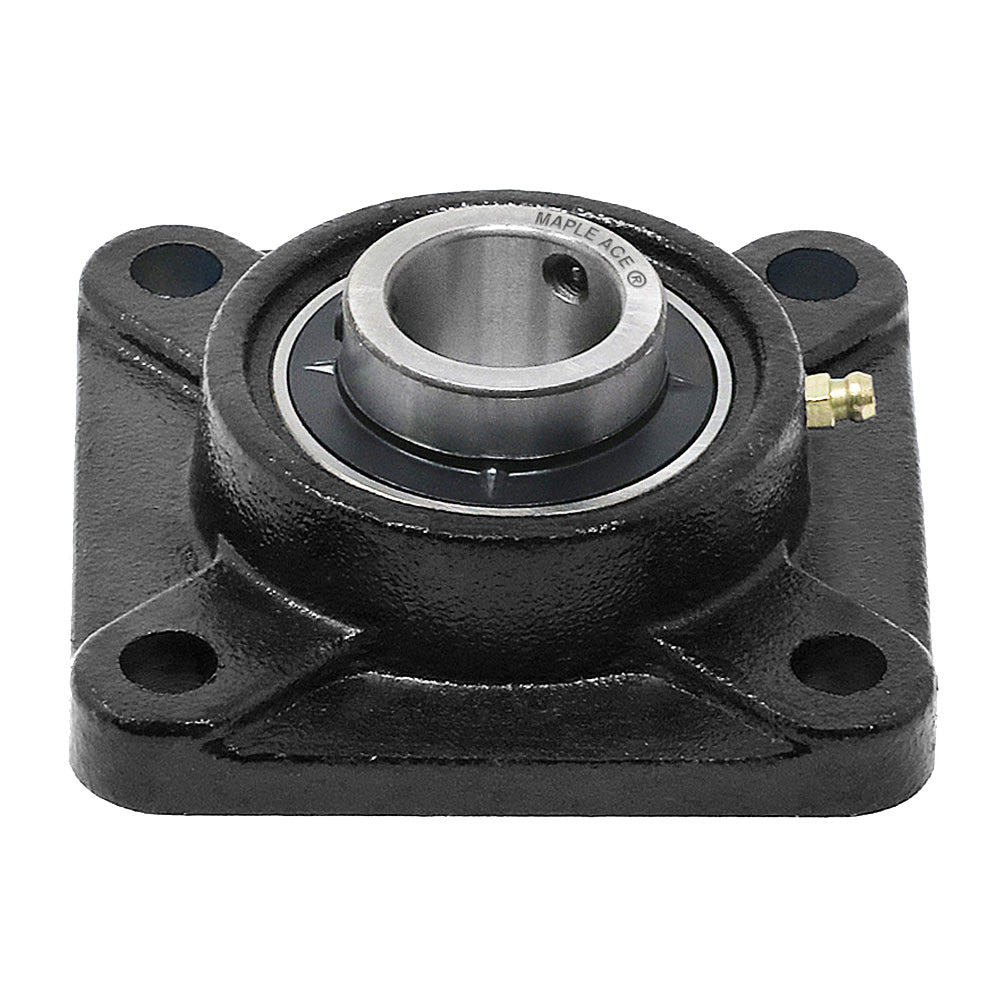

  • This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes
  • Grease Fitting Offset on top, to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Has a Set Screw Lock on its surface, for securing the shaft

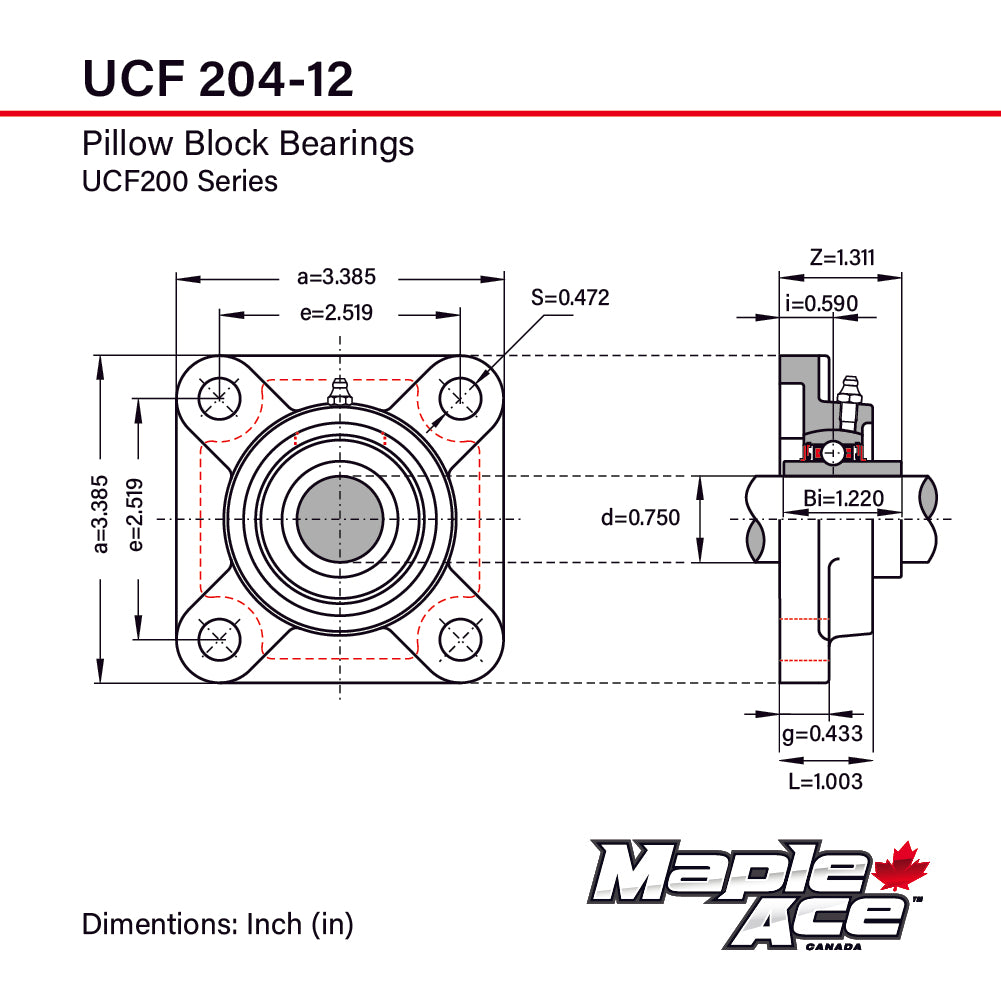

Item  UCF204-12
Series  UCF200
Bearing Number  UC204-12
Housing Number  F204
Number of Bolts  4
Bolt Size (S)  3/8 in
Bearing Inner Diameter (d) Metric  19.05 mm
Bearing Inner Diameter (d) Inch  3/4 in
Bearing Width Inner Ring (Bi) Matric  31.00 mm
Bearing Width Inner Ring (Bi) Inch  1.220 in
Bolt Hole Center to Center (e) Matric  64 mm
Bolt Hole Center to Center (e) Inch  2.519 in
Flange width (a) Matric  86 mm
Flange width (a) Inch  3.385 in
Overall Height (Z) Matric  33.3 mm
Overall Height (Z) Inch  1.311 in
Dynamic Load Rating Cr  12700 N
Static Load Rating Cor  6550 N
Limiting Speed  8500 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H2000 Cast Iron
Locking Type  Set Screws
Weight  0.540 KG
Koyo UCF204-12
NACHI UCF204-12
RHP SF3⁄4
NTN UCF204-012D1
SKF FY 3/4 TF
SNR UCF204-12
TIMKEN UCF204-12

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
