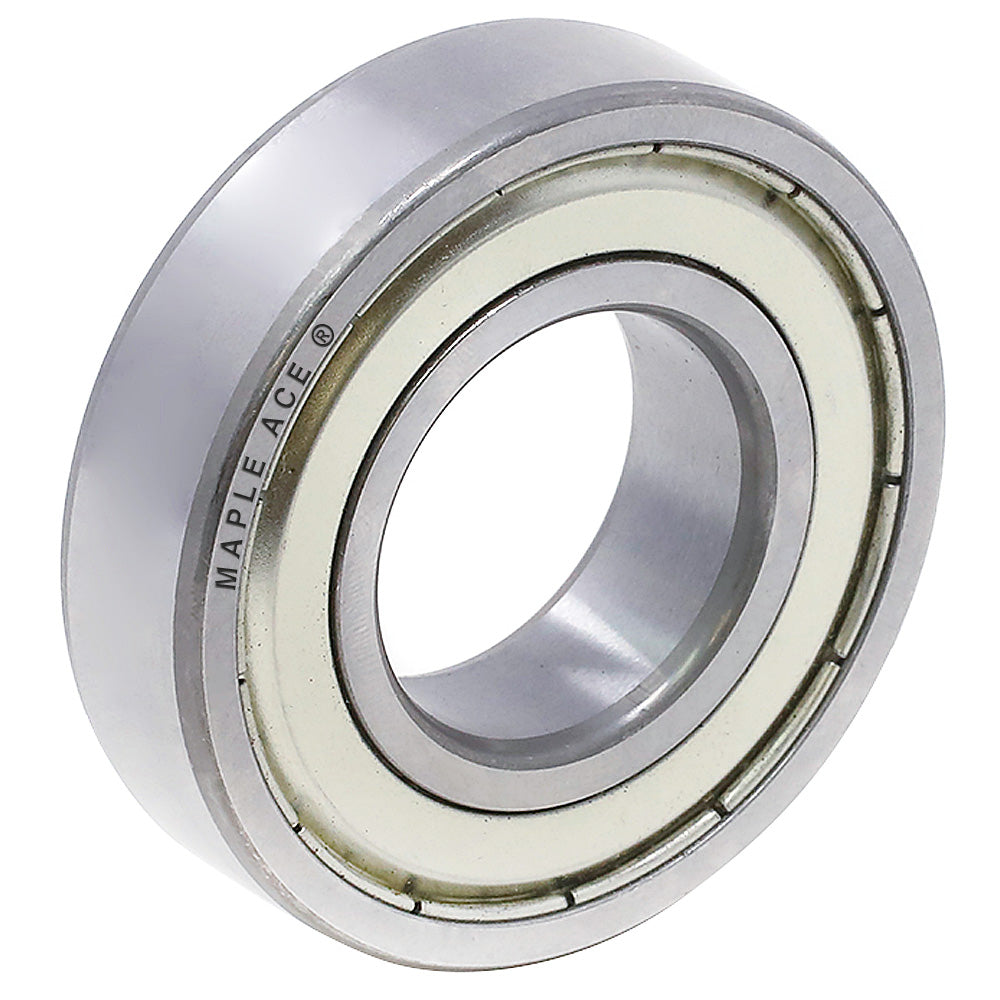

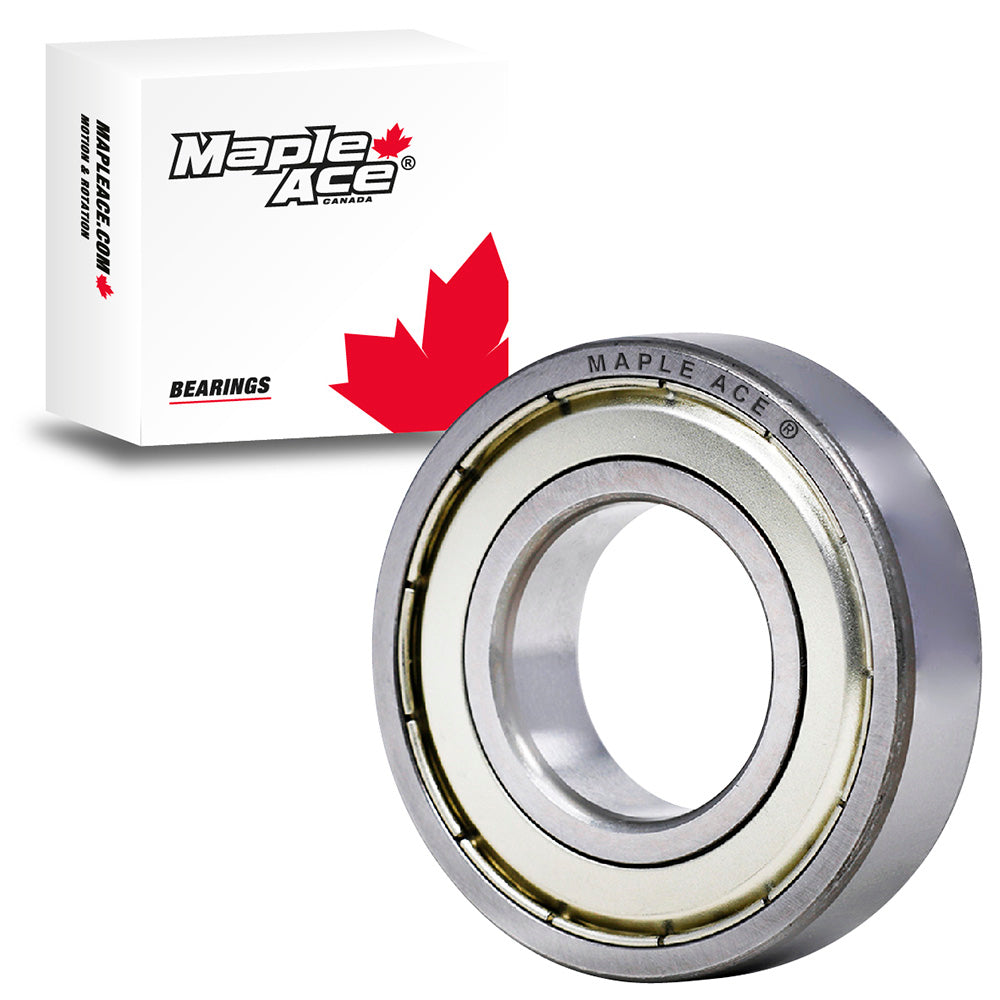

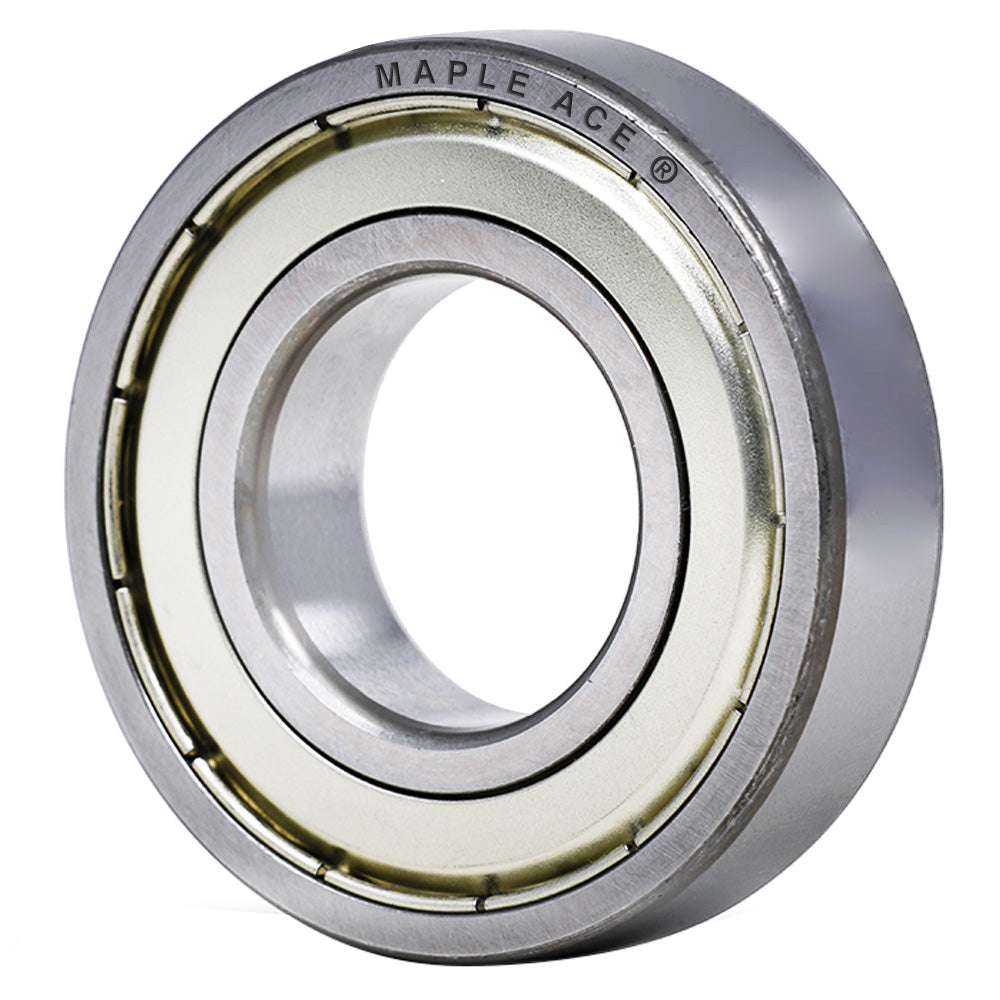

6317-ZZ Ball Bearing 85x180x41mm 6317 ZZ Metal Shielded
6317-ZZ Ball Bearing 85x180x41mm 6317 ZZ Metal Shielded
6317-ZZ Ball Bearing 85x180x41mm 6317 ZZ Metal Shielded

6317-ZZ Ball Bearing 85x180x41mm 6317 ZZ Metal Shielded

: In stock

: Ball Bearings

: MAPLE ACE

$168.95 CAD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

  • 6317 ZZ C3 Deep Groove Ball Bearing dimensions: Bore Diameter 85mm, Outside Diameter 180mm, Width 41mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 6317, 6317 Z, 6317 ZZ, 6317 ZR, 6317 2ZR, 6317 2Z
  • This deep groove ball bearing has a shield on both sides, non-connected to the inner ring, to stop dust from entering. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item6317-ZZ-C3
Bore Diameter85 mm
Outside Diameter180 mm
Width, Total41 mm
Width, Inner Ring41 mm
Width, Outer Ring41 mm
Basic Dynamic Load Rating (Cr)140 kN
Basic Static Load Rating (C₀r)96.5 kN
Limiting Speed4,000 r/min
Rolling ElementBall
Number of Rows1
Locating Feature (Outer Ring)None
Bore TypeCylindrical
Cage MaterialSheet metal
Radial Internal ClearanceC3
Tolerance ClassP6
Bearing MaterialGCr15
SealingShield on both sides
Sealing TypeNon-contact
LubricationGrease
Relubrication FeatureWithout
Product Weight4.30 kg
FAG6317-2Z C3
Koyo6317 ZZ C3
NACHI6317 ZZE C3
NSK6317 ZZ C3
NTN6317 ZZ C3
SKF6317-2Z C3
SNR6317-ZZ C3
TIMKEN6317-ZZ C3

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
