6304-C3 Ball Bearing 20x52x15mm 6304 C3 OPEN, NO SEALS

6304-C3 Ball Bearing 20x52x15mm 6304 C3 OPEN, NO SEALS

Name: 6304-C3 Ball Bearing 20x52x15mm 6304 C3 OPEN, NO SEALS
Brand: MAPLE ACE
Price: 5.29 CAD
Availability: InStock

Availability: In stock

Product type: Ball Bearings

Vendor: MAPLE ACE

Regular price $5.29 CAD

Single-row deep groove ball bearings offer high versatility across various applications. Designed with low friction, optimized for: Low noise Low vibration High...

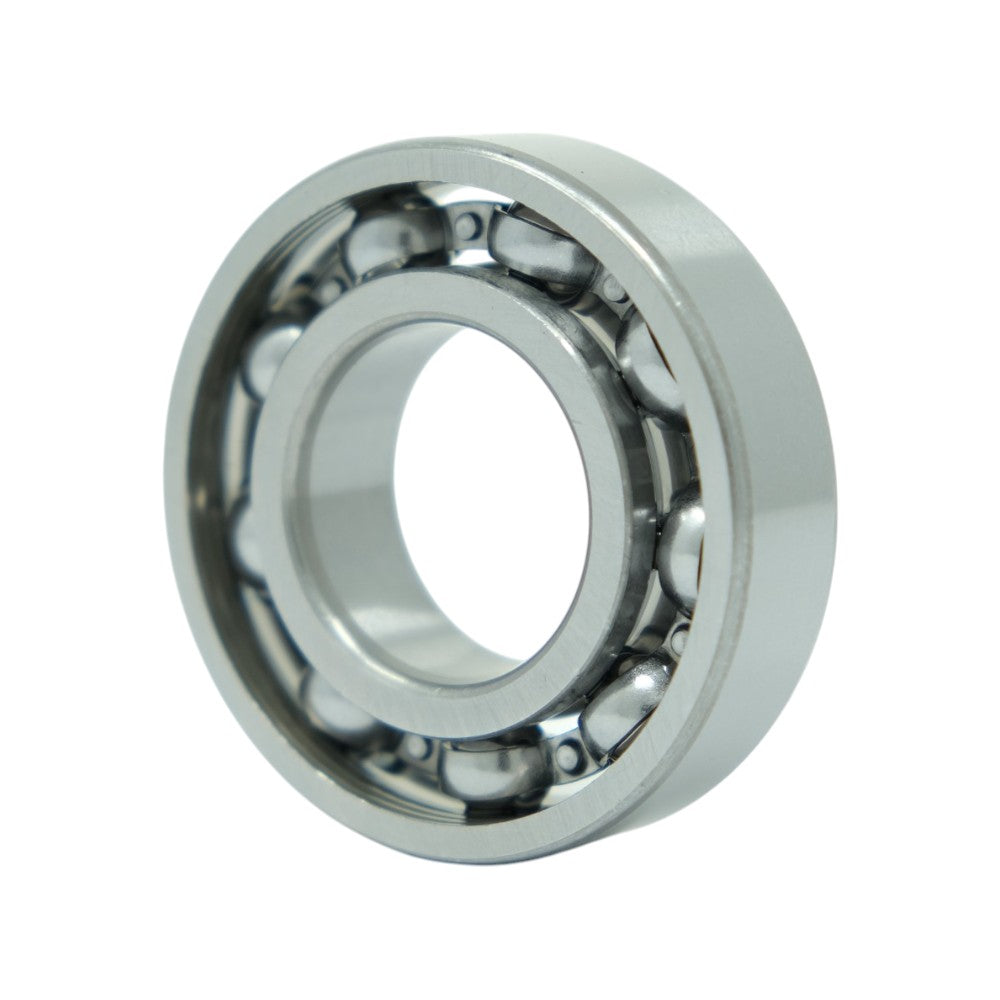

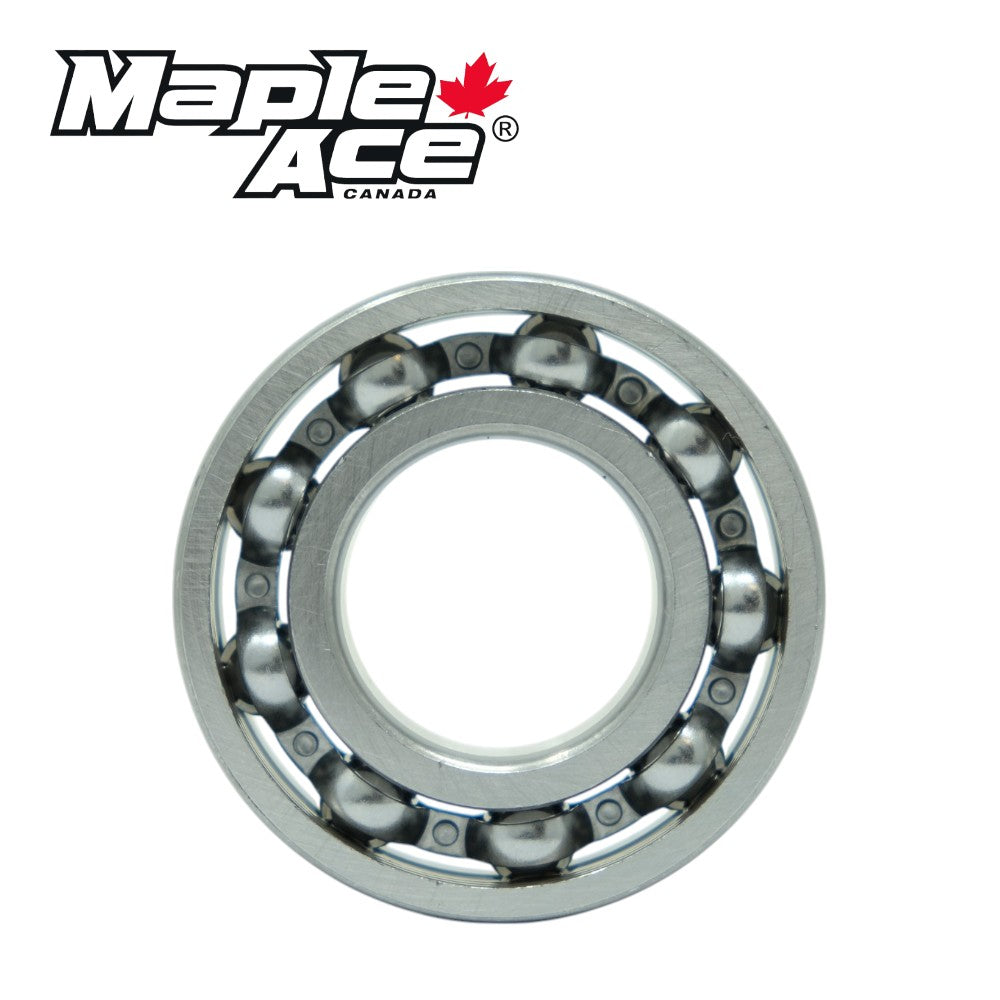

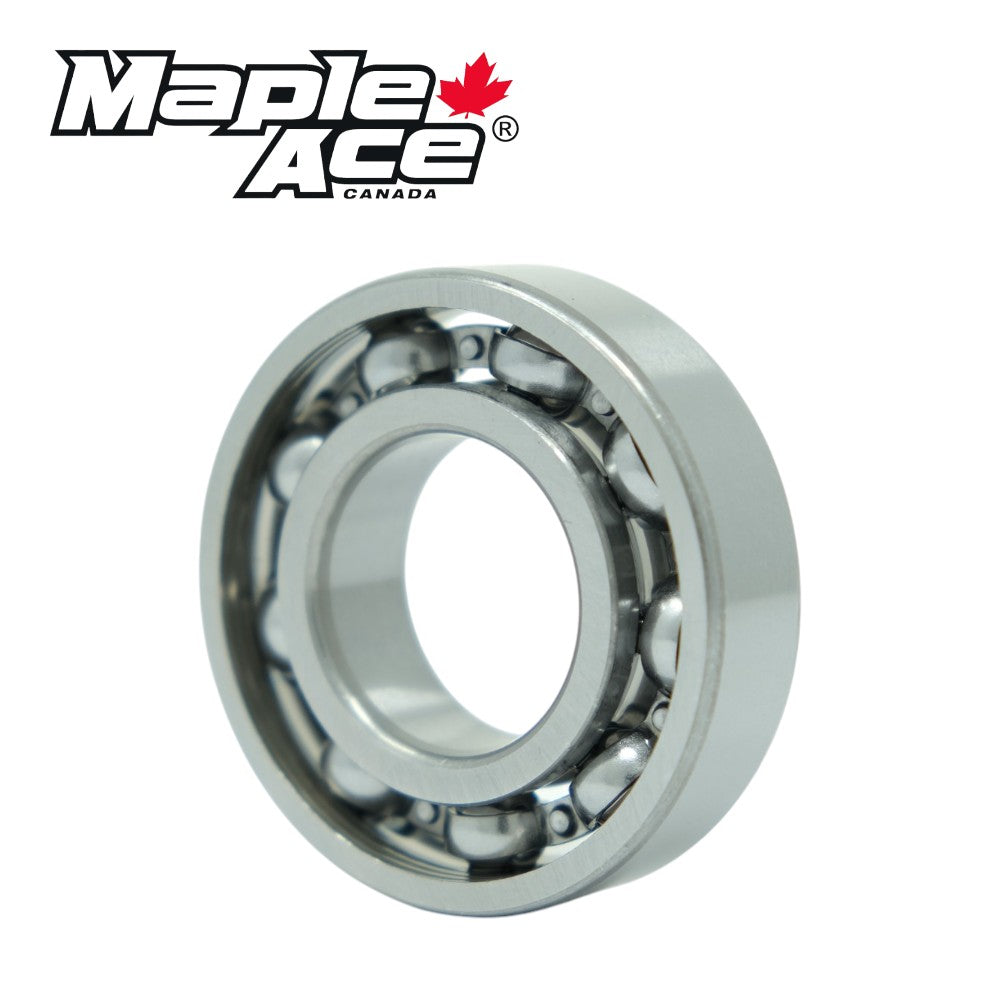

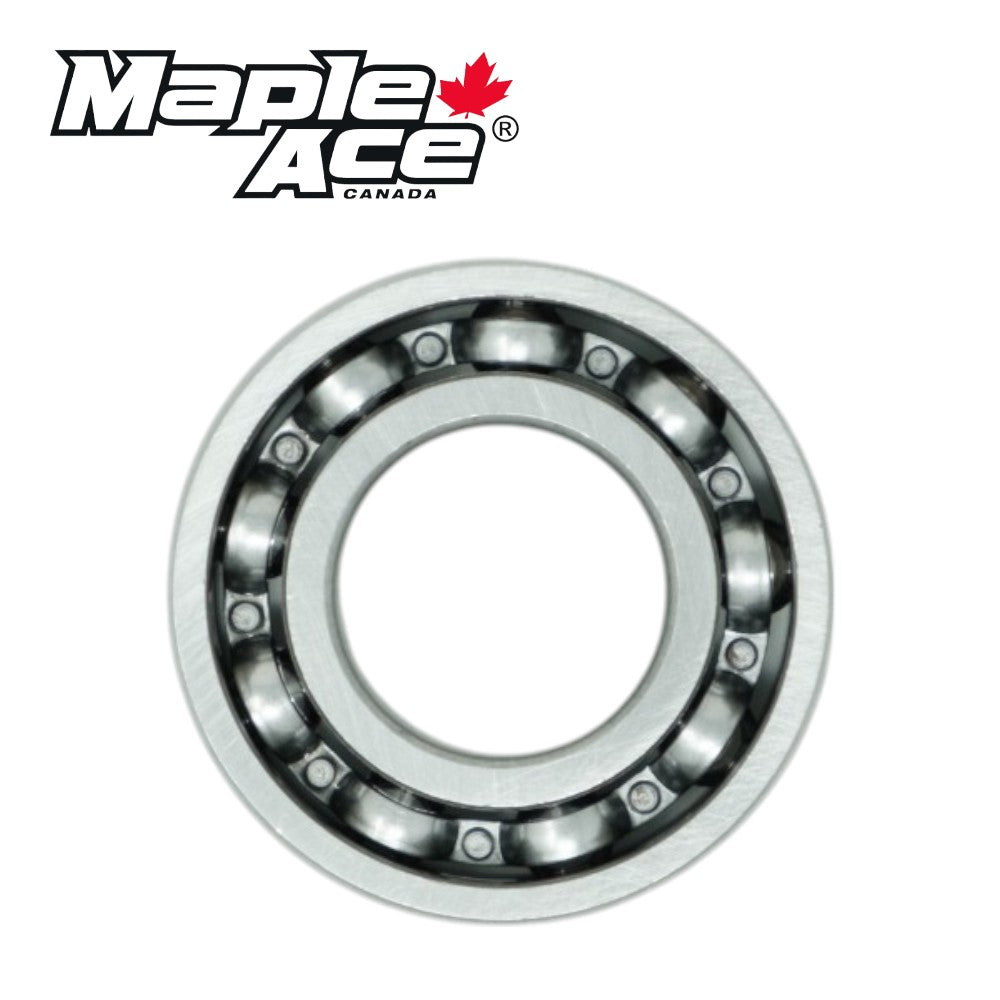

6304 C3 Deep Groove Ball Bearing dimensions: Bore Diameter 20mm, Outside Diameter 52mm, Width 15mm. 100% Chrome Steel.
Interchange to 6304 C3, 6304/C3, 6304, 6304 CM, 6304 CN
This deep groove ball bearing is Open and has no shield or seal on both sides.
Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

Single-row deep groove ball bearings offer high versatility across various applications.
Designed with low friction, optimized for:
- Low noise
- Low vibration
- High rotational speeds
Able to support both radial and axial loads in both directions.
Easy to mount and require less maintenance compared to many other bearing types.

Specifications
Interchange

Item	6304 C3
Bearing Type	Deep groove ball bearing
Bore Diameter	20.00mm
Outside Diameter	52.00mm
Width	15.00mm
Width Inner Ring	15.00mm
Width Outer Ring	15.00mm
Dynamic Load Rating Cr	16800 N
Static Load Rating Cor	7800 N
Limiting Speed	19000 r/min
Clearance	C3
Tolerance Classes	P5
Cage	Metal
Closures	Without
Lubrication Type	Without
Lubrication Temperature	Without
Rolling Element Indicator	Ball
Material	Gcr15
Product Weight	0.140 KG
