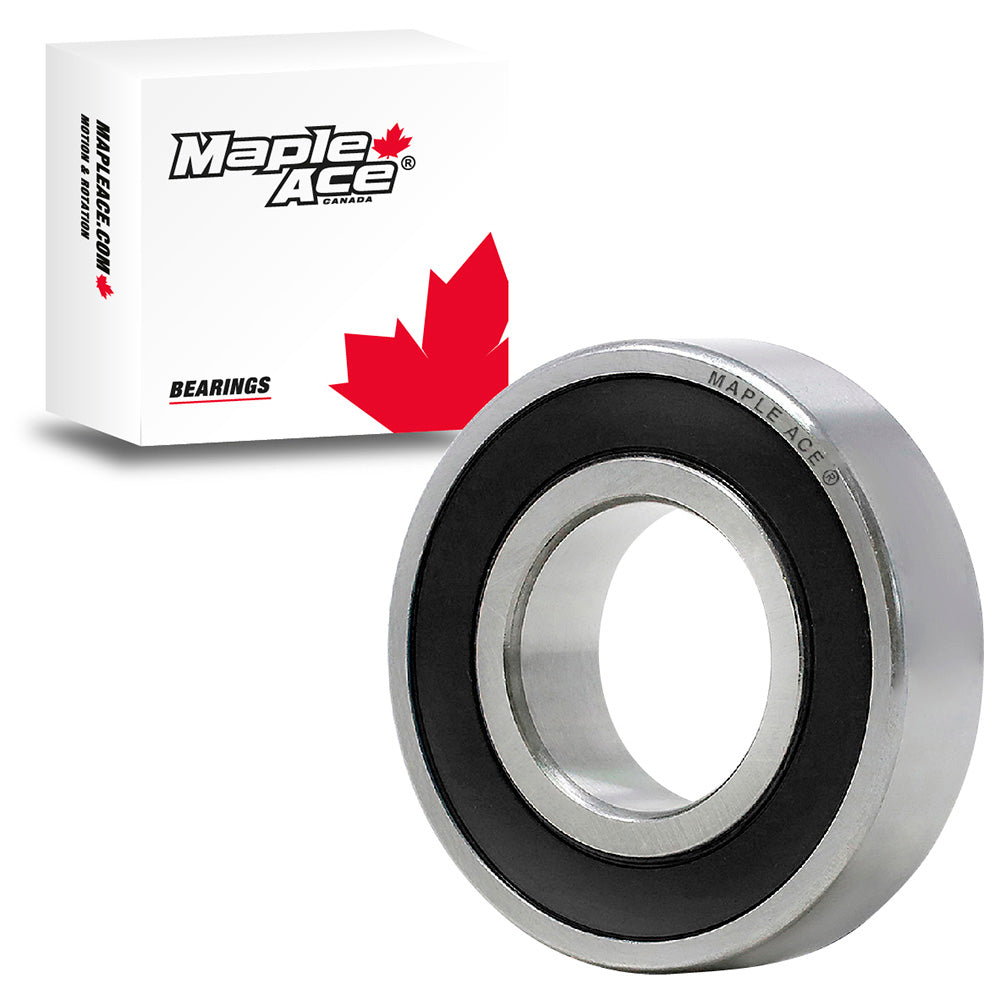

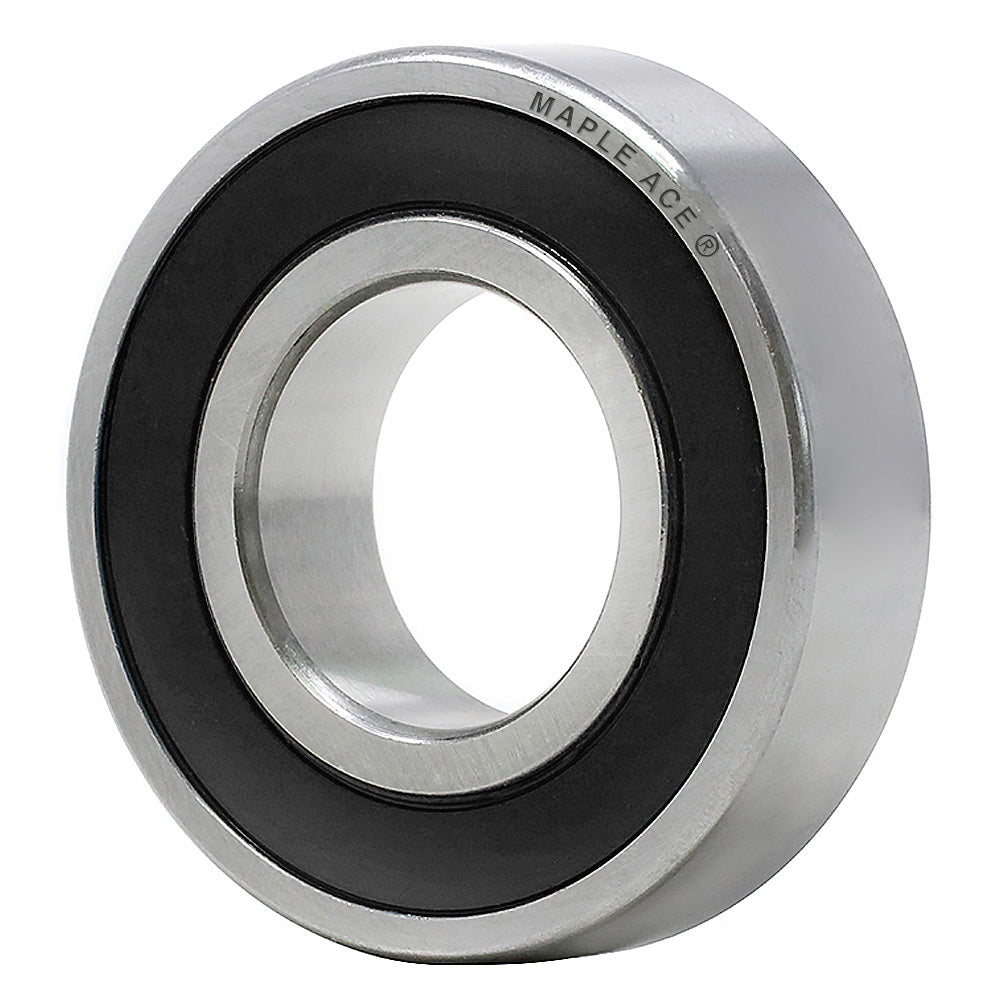

6914-2RS, 61914-2RS Ball Bearing 70x100x16mm 6914 2RS Rubber Sealed
6914-2RS, 61914-2RS Ball Bearing 70x100x16mm 6914 2RS Rubber Sealed
6914-2RS, 61914-2RS Ball Bearing 70x100x16mm 6914 2RS Rubber Sealed

6914-2RS, 61914-2RS Ball Bearing 70x100x16mm 6914 2RS Rubber Sealed

: In stock

: Ball Bearings

: MAPLE ACE

$51.95 CAD

  • 61914 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 70mm, Outside Diameter 100mm, Width 16mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High, and Low-temperature settings.
  • Interchange to 6914, 6914 RS, 61914 RSR, 61914 2RSR, 61914 RS1, 61914 2RS1, 61914 2RSJEM, 6914 LU, 6914 LLU, 6914 DU, 6914 DDU, 6914 2NSL, 6914 2NSE
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to stop dust from entering. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item 61914-2RS
Bearing Type Deep groove ball bearing
Bore Diameter 70.00mm
Outside Diameter 100.00mm
Width 16.00mm
Width Inner Ring 16.00mm
Width Outer Ring 16.00mm
Dynamic Load Rating Cr 23800 N
Static Load Rating Cor 18300 N
Limiting Speed
Clearance CN
Tolerance Classes P6
Cage Metal
Closures Seal on both sides
Lubrication Type Grease Chevron
Lubrication Temperature -30°C to +180°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 0.340 KG
FAG61914 2RSR
Koyo6914 2RS
NACHI6914 2NSE
NSK6914 DD, 6914 VV
NTN6914 LLU
SKF61914 2RS1
SNR61914 EE
TIMKEN6914 2RS

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
