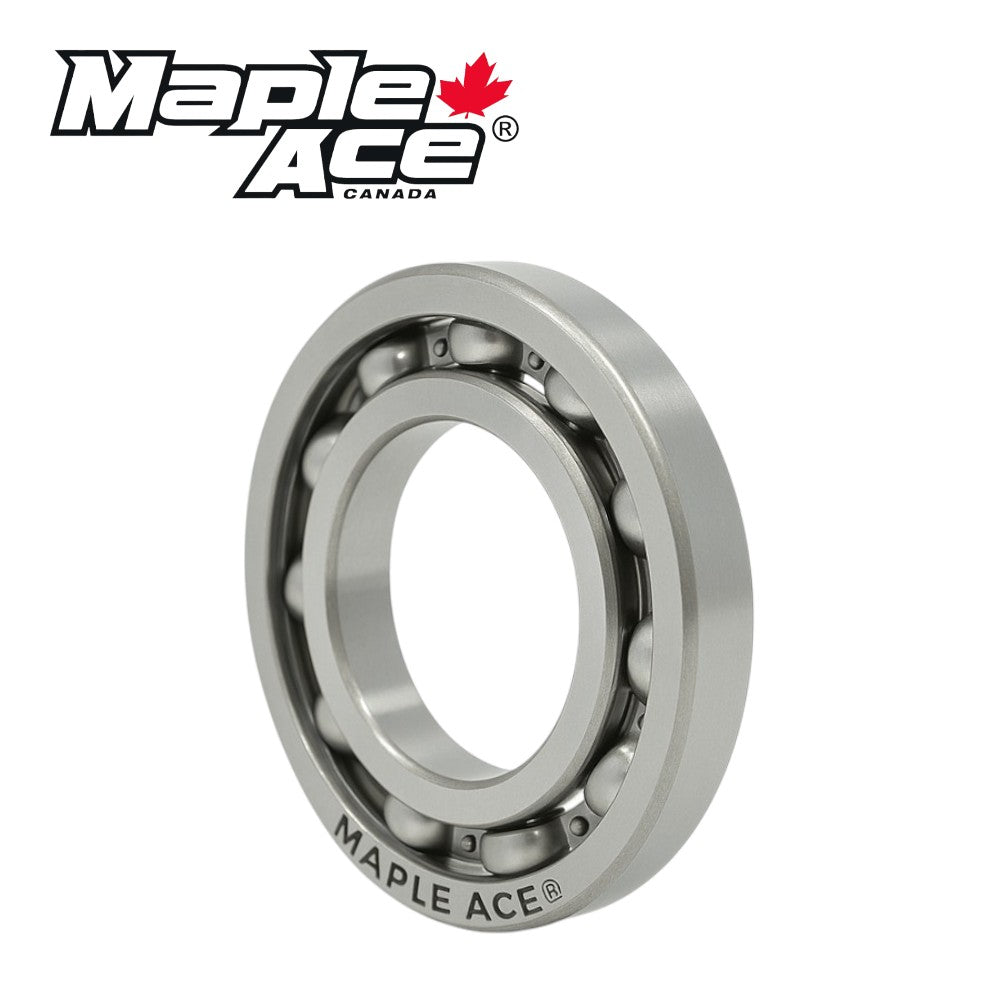

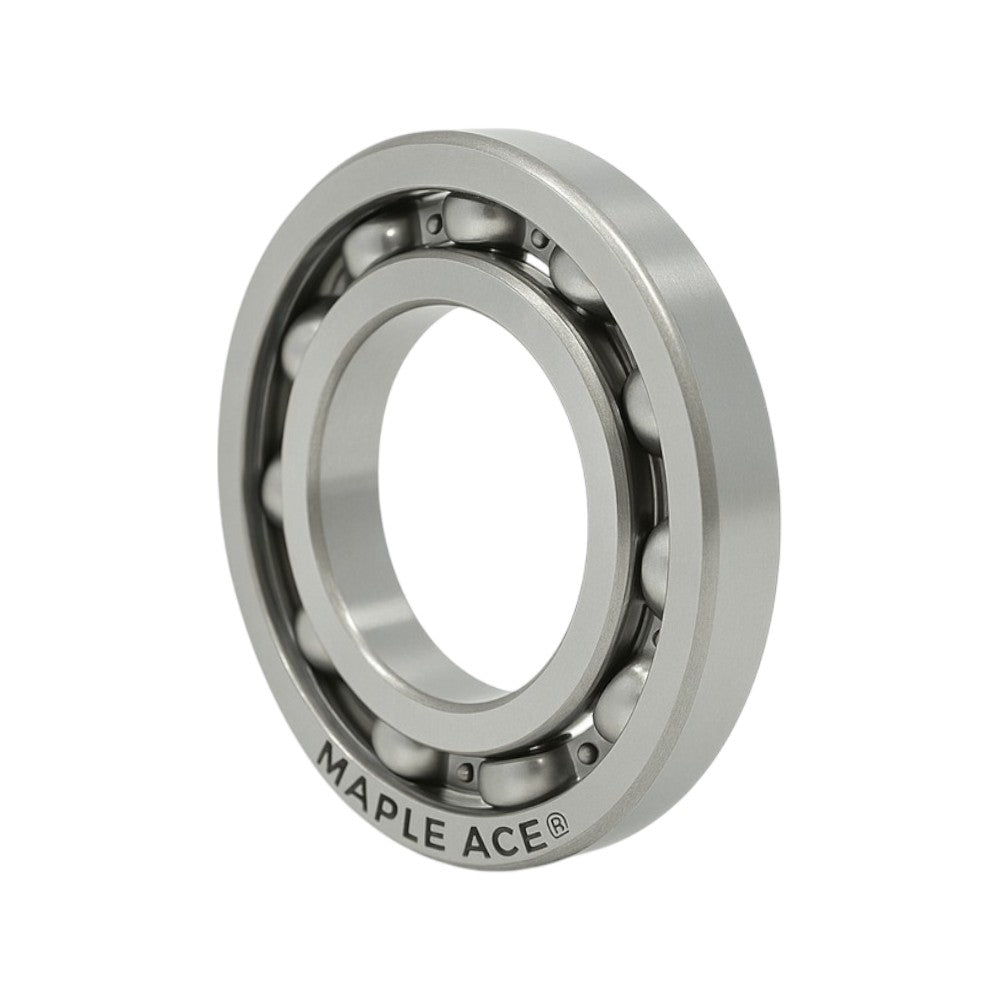

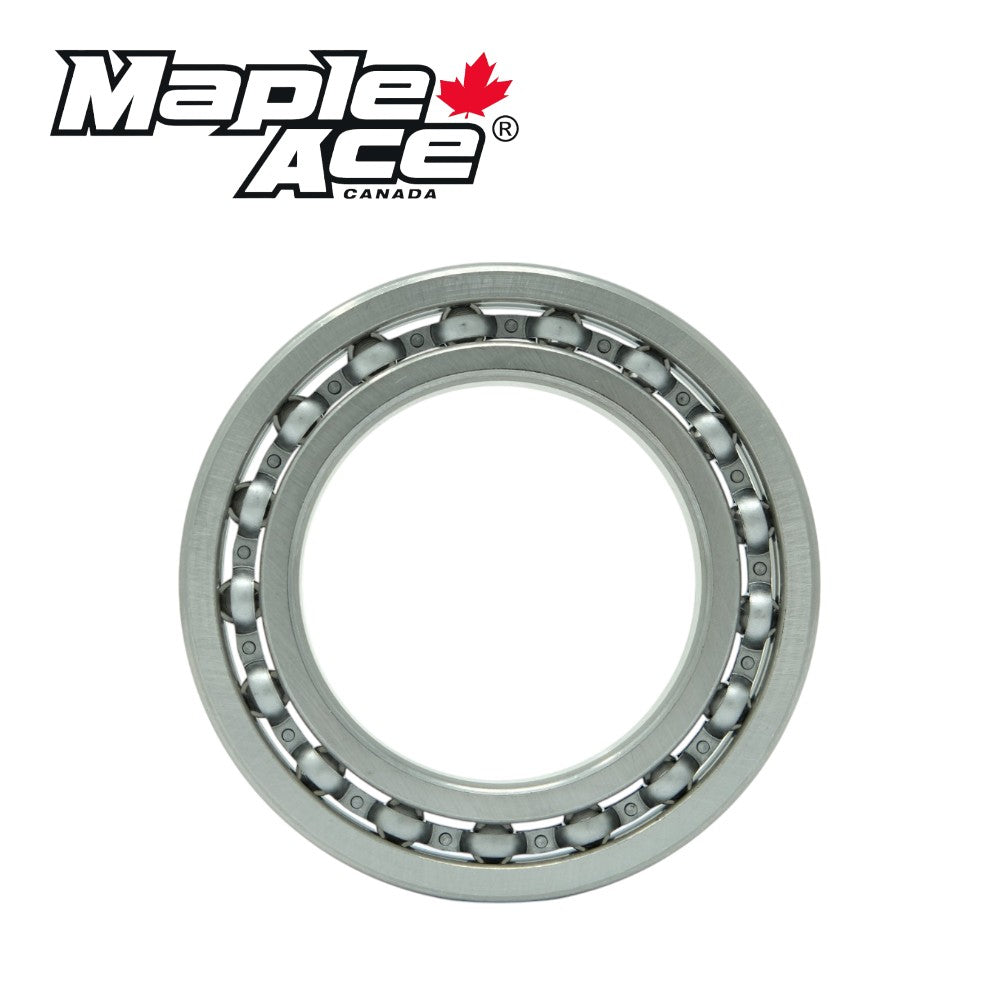

16004 Ball Bearing 20x42x8mm 16004

Name: 16004 Ball Bearing 20x42x8mm 16004
Brand: MAPLE ACE
Price: 3.89 CAD
Availability: InStock

Availability: In stock

Product type: Ball Bearings

Vendor: MAPLE ACE

Regular price $3.89 CAD

Single-row deep groove ball bearings offer high versatility across various applications. Designed with low friction, optimized for: Low noise Low vibration High...

16004 Deep Groove Ball Bearing dimensions: Bore Diameter 20mm, Outside Diameter 42mm, Width 8mm. 100% Chrome Steel.
Interchange to 16004 CM, 16004 CN
This deep groove ball bearing is Open and has no shield or seal on both sides.
Application: ATVs, Motorcycles, Bicycle, Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

Single-row deep groove ball bearings offer high versatility across various applications.
Designed with low friction, optimized for:
- Low noise
- Low vibration
- High rotational speeds
Able to support both radial and axial loads in both directions.
Easy to mount and require less maintenance compared to many other bearing types.

Specifications
Interchange

Item	16004
Bearing Type	Deep groove ball bearing
Bore Diameter	20.00mm
Outside Diameter	42.00mm
Width	8.00mm
Width Inner Ring	8.00mm
Width Outer Ring	8.00mm
Dynamic Load Rating Cr	7280 N
Static Load Rating Cor	4050 N
Limiting Speed	24000 r/min
Clearance	CN
Tolerance Classes	P5
Cage	Metal
Closures	Without
Lubrication Type	Without
Lubrication Temperature	Without
Rolling Element Indicator	Ball
Material	Gcr15
Product Weight	0.051 KG
